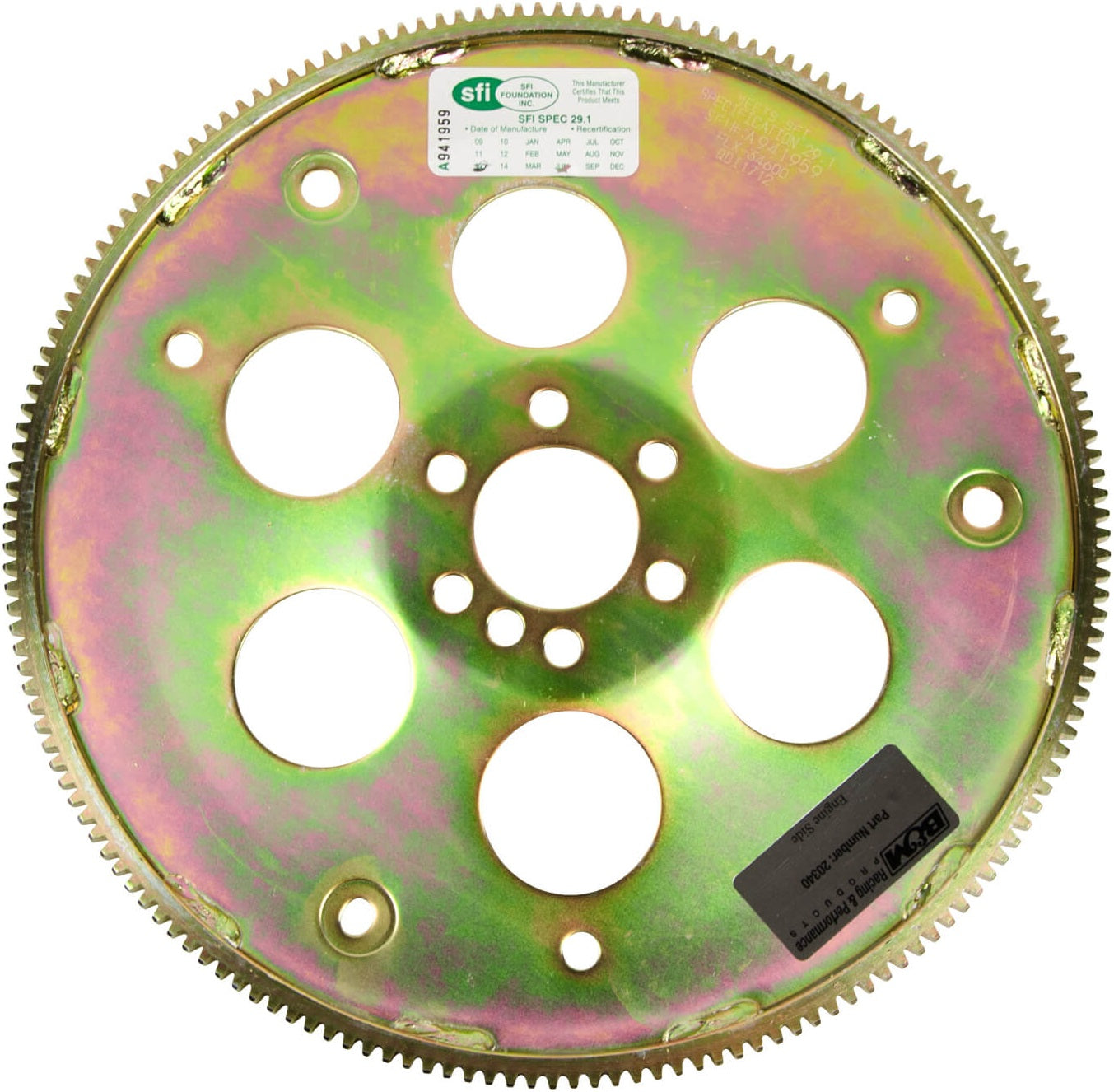

FLEXPLATE,LS,97-17,5.3/6.0/6.2/7.0,168T

FLEXPLATE,LS,97-17,5.3/6.0/6.2/7.0,168T

SKU:B&M 20340

Regular price $154.95
Regular price Sale price $154.95
View full details

BRAND NEW B&M STEEL SFI CERTIFIED FLEXPLATE, 168 TOOTH INTERNAL BALANCE, COMPATIBLE WITH 1997-2002 PONTIAC FIREBIRD

AS PERFORMANCE LEVELS INCREASE, AN O.E. STYLE FLEXPLATE JUST WILL NOT CUT IT & STRONGER OPTION IS A NECESSITY TO PREVENT TRANSMISSION &/OR CONVERTER FAILURE. B&M HAS YOU COVERED WITH OUR HIGH PERFORMANCE FLEXPLATE DESIGNED FOR GM 1998-UP 4.8L, 5.3L, 5.7L & 6.0L LS ENGINES WITH 6-BOLT CRANKSHAFT FLANGE, INCLUDING 2010-15 CAMARO WITH L99 ENGINE.

INCLUDES HIGH TENSILE STRENGTH STEEL CONSTRUCTION TO RESIST ELONGATION & CRACKING, 10.75 & 11.06-INCH CONVERTER MOUNTING LOCATIONS, 168 TOOTH RING GEAR WITH DOUBLE-SIDED WELDS FOR ADDED STRENGTH & COMES WITH SFI 29.1 SAFETY CERTIFICATION INSURING THE ULTIMATE IN SAFETY & PERFORMANCE.

NOTE: NOT COMPATIBLE WITH 1999-00 6.0L APPLICATIONS WITH 0.4" EXTENDED CRANK FLANGE/FLAT FLEXPLATE OR 1999-00 4.8L ENGINES THAT ORIGINALLY CAME WITH MANUAL TRANSMISSION. FLEXPLATE SPACER IS REQUIRED FOR RETROFITTING NON LS ERA TRANSMISSIONS TO LS ENGINES.

NOTE: COMPATIBLE WITH GM LSX MOTORS INCLUDING 2010 & UP AUTOMATIC CAMARO WITH L99 ENGINE & 1ST THROUGH 4TH GEN CAMARO & FIREBIRD. ALSO ALL GM LSX MOTORS USING AN AUTO TRANSMISSION INCLUDING CORVETTE, GTO & G8.

COMPATIBLE WITH:

  • CHEVROLET:
    • 1997-2012 CORVETTE
    • 1997-2002, 2011-12 CAMARO
    • 2006-2009 IMPALA
    • 2006-2007 MONTE CARLO
  • PONTIAC:
    • 1997-2002 FIREBIRD
    • 2005-2008 GRAND PRIX
    • 2008-2009 G8
    • 2004-2006 GTO

FEATURES:

  • 10.75, 11.06 INCH BOLT PATTERN CONVERTOR MOUNT
  • ZINC PLATED CHROMATE FINISH
  • 168 TOOTH RING GEAR
  • B&M QUALITY

SPECS:

  • # OF TEETH: 168
  • CRANKSHIFT BOLT HOLE COUNT: 6
  • DUAL PATTERN: YES
  • OUTSIDE DIAMETER: 14.13"
  • PRODUCT TYPE: FLEXPLATES
  • SFI APPROVED: YES
  • SFI CERTIFICATION: 29.1
  • SFI CERTIFICATION STICKER: INCLUDED
  • WEIGHT: 6 LBS.
