HI-TEK DEEP TRANSMISSION PAN,GM TH400,ALUM

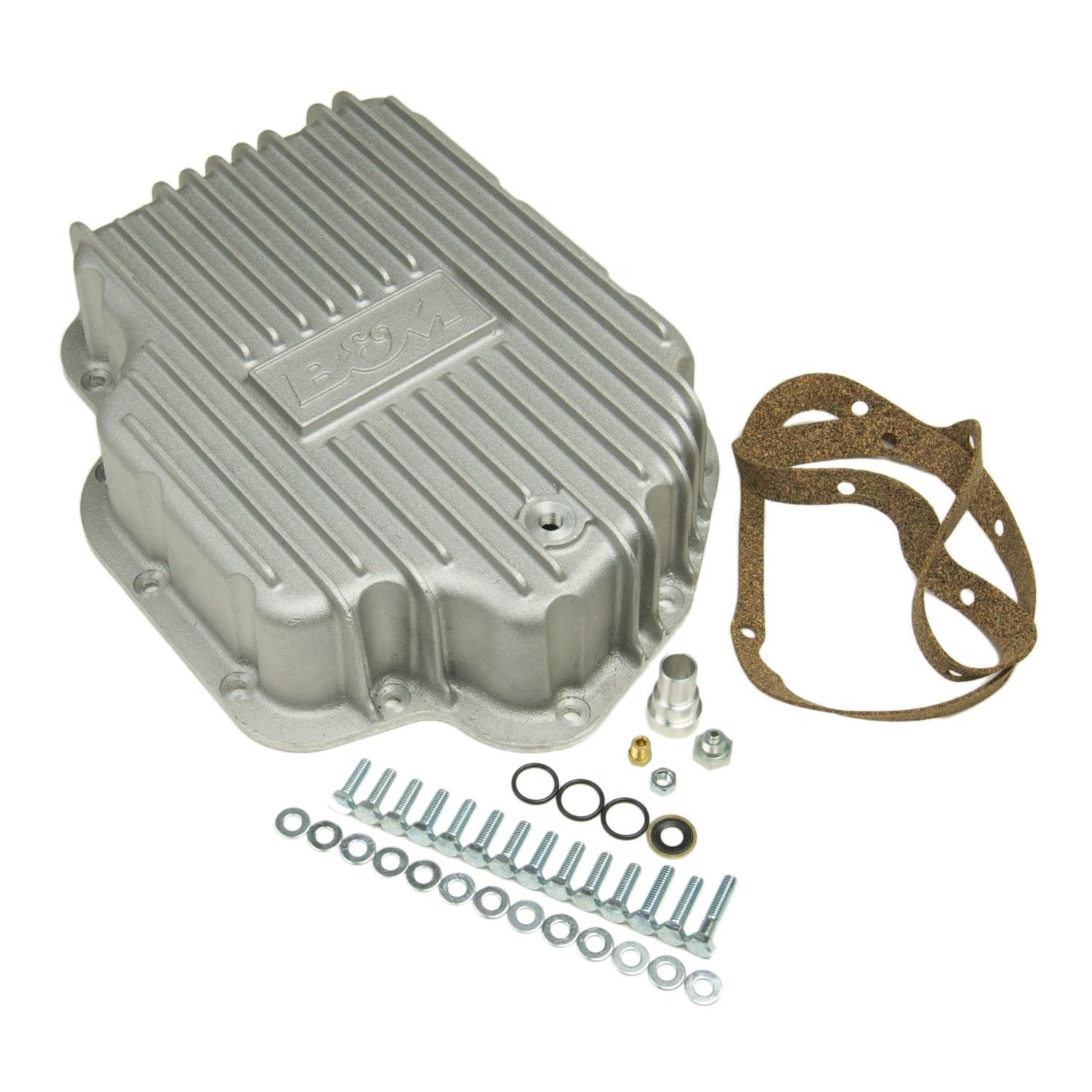

Brand New B&M Hi-Tek Deep Transmission Pan - Aluminum - GM TH400 (Part #20280).

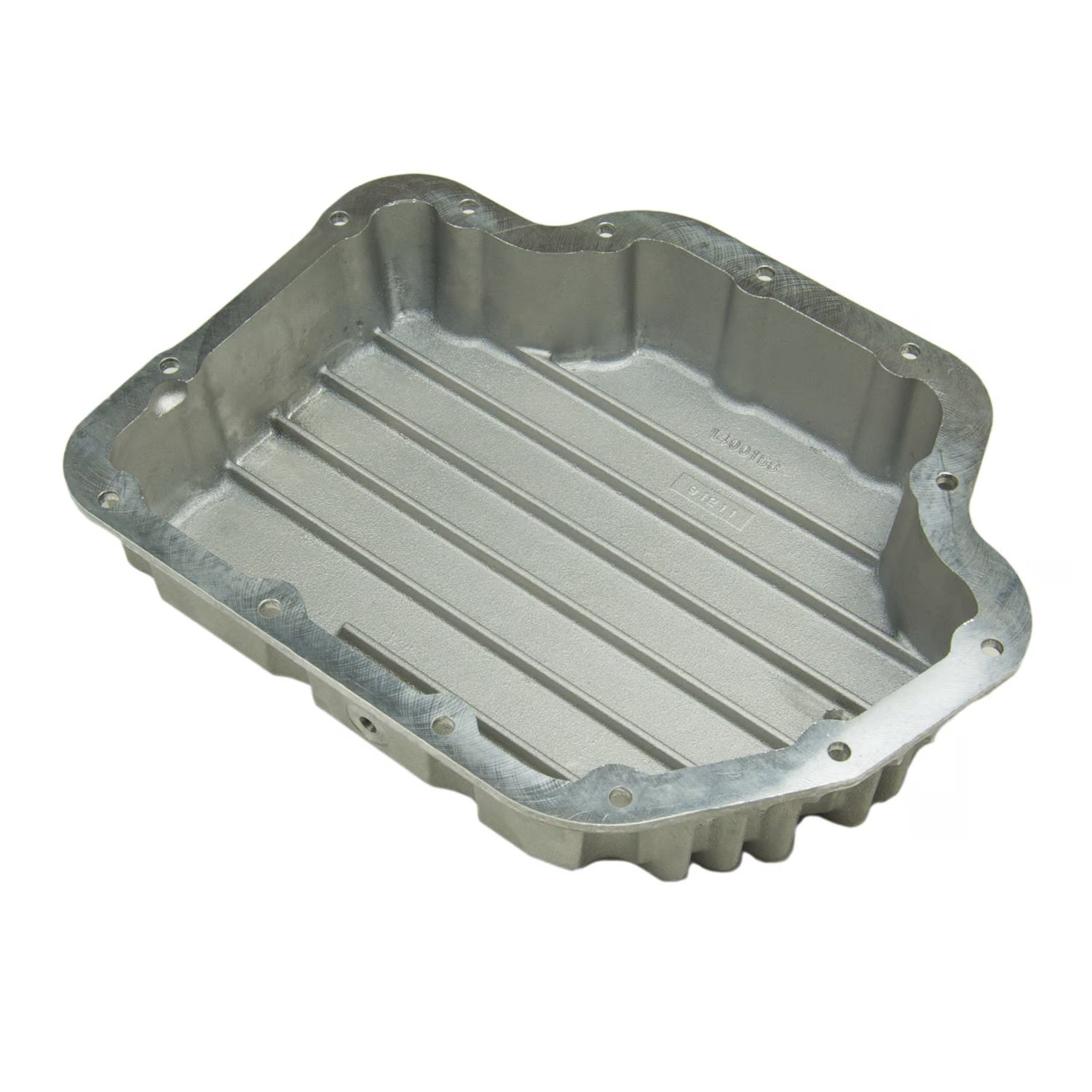

Our Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick internal and external fins, adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 2-quarts over the stock O.E. steel pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures prolonging the life of your transmission, transmission fluid and corresponding components. Other features for this popular pan include a filter extension, pan gasket and drain port with magnetic drain plug for clean and easy servicing. Also includes a 1/8 inch NPT temperature sensor port for easily adding a temp gauge for monitoring transmission temperatures while daily driving, towing or racing. Includes detailed instructions with all necessary hardware for an easy at home installation.

Note: All GM Turbo-Hydramatic 400 automatic transmissions. Adds an additional 2-quarts of capacity. Does not fit Jeep CJ7 model. Does not include transmission filter.

Features:

• Includes Drain Port & Magnetic Drain Plug
• Include Fluid Pickup Extension & Gasket
• Adds Additional 2-quart Fluid Capacity
• Includes Sensor Temperature Port
• Over 65 Years of B&M Quality
• Increased Cooling Properties

Specs:

• Additional Fluid Capacity (qts): 2
• Brand: B&M
• Drain Plug Included: Yes
• Drain Plug Kit: Yes
• Emission Code: 5
• Filter Extension Included: Yes
• Filter Included: No
• Gasket Included: Yes
• Instructions Included: Yes
• Material: Cast Aluminum
• Mounting Hardware: Yes
• Style: Deep
• Temperature Sensor Bung: Yes
• Transmission: TH400
• Transmission Type: Automatic

You can view and download the complete assembly instruction booklet here.
