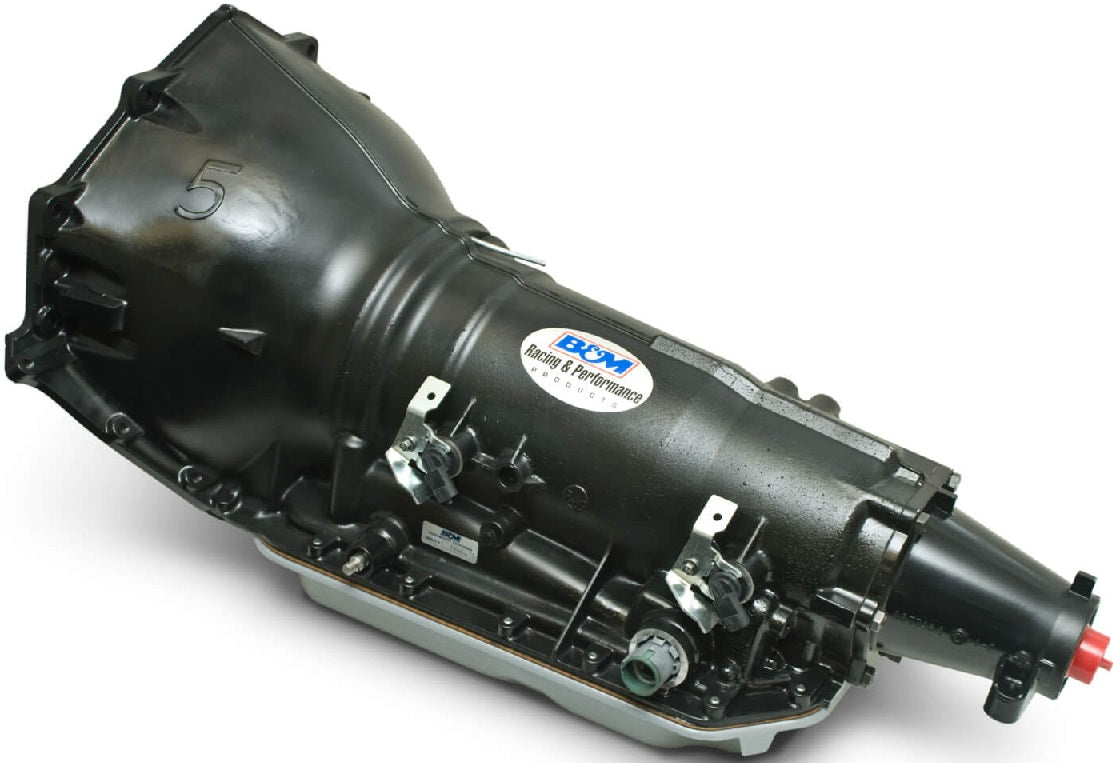

S/S AUTOMATIC TRANSMISSION,GM 4L80E,97-U

BRAND NEW B&M STREET/STRIP AUTO TRANSMISSION, 2WD, AUTO SHIFT VALVE BODY, COMPATIBLE WITH 1997-2015 GM 4L80E ENGINES

B&M STREET/STRIP TRANSMISSION IS A COMPLETE READY TO RUN UNIT (LESS TORQUE CONVERTER) FOR HIGH PERFORMANCE STREET AND MILD DRAGSTRIP USE. THE TRANSMISSION PROVIDES FIRM SHIFTS AND FEATURES A STANDARD SHIFT PATTERN, THESE ARE THE FINEST AVAILABLE FOR STREET AND STRIP USE. THE STREET/STRIP GM 4L80E AUTOMATIC TRANSMISSION FITS GM MODELS 1997-2015.

INCLUDES A 34-ELEMENT INTERMEDIATE SPRAG, HIGH ENERGY INTERMEDIATE BAND, NEW OVERDRIVE SPRAG ASSEMBLY, NEW LOW ROLLER ASSEMBLY, PERFORMANCE FRICTION MATERIALS, ALL NEW SOLENOIDS AND WIRING HARNESS, RECALIBRATED VALVE BODY, PERFORMANCE PUMP ASSEMBLY, STEEL FORWARD HUB. DESIGNED FOR A MAXIMUM OF 800 HP & 650 FT/LBS OF TORQUE. CAN BE USED WITH HGM COMPUSHIFT CONTROLLER FOR TRANSPLANT APPLICATIONS.

NOTE: CAN BE USED WITH HGM COMPUSHIFT CONTROLLER FOR TRANSPLANT APPLICATIONS. TRANSMISSION SHIPPED WITHOUT SPEEDOMETER DRIVEN GEAR OR HOUSING.

FEATURES:

• DESIGNED FOR UP TO 800 HORSEPOWER & 650 FT/LBS OF TORQUE
• ALL NEW HIGH PERFORMANCE FRICTION PLATES
• REBUILT PERFORMANCE PUMP ASSEMBLY
• 34-ELEMENT INTERMEDIATE SPRAG
• HIGH ENERGY INTERMEDIATE BAND
• NEW OVERDRIVE SPRAG ASSEMBLY
• FULLY RECALIBRATED VALVE BODY
• NEW LOW ROLLER ASSEMBLY

SPECS:

• 2WD/4WD: 2WD
• BRAKE INCLUDED: NO
• BUILT-IN TRANSMISSION SHIELD: NO
• CASE MATERIAL: CAST ALUMINUM
• COLOR: BLACK
• CONTROL TYPE: ELECTRONIC
• COOLER INCLUDED: NO
• CORE CHANGE APPLICABLE: NO
• DIPSTICK INCLUDED: NO
• DRIVE TYPE: RWD
• FRICTION PLATES: NEW
• GEAR RATIO-1ST: 2.48
• GEAR RATIO-4TH: 0.75
• GEAR RATIO-2ND: 1.48
• GEAR RATIO-3RD: 1.00
• HORSEPOWER RATING: 800
• HP/TORQUE: MAX 800 HP / 650 FT/LBS.
• MANUAL VALVE BODY: NO
• PART TYPEHIGH: PERFORMANCE
• PRODUCT TYPE: AUTOMATIC TRANSMISSION ASSEMBLY
• REVERSE GEAR RATIO: 2.08
• REVERSE PATTERN: NO
• TORQUE CONVERTER INCLUDED: NO
• TORQUE RATING (FT/LBS): 650
• TRANSBRAKE: NO
• TRANSMISSION SERIES: STREET/STRIP
• TRANSMISSION SPEEDS: 4
• TRANSMISSION TYPE: 4L80E
• VALVE BODY CONFIGURATION: RECALIBRATED
• VALVE BODY PATTERN: FORWARD
• VALVE BODY TYPE: AUTOMATIC
• CALIFORNIA PROPOSITION 65 CHEMICAL NAME: BENZENE,CHROMIUM (HEXAVALENT COMPOUNDS) & LEAD
• CALIFORNIA PROPOSITION 65 REQUIRED: YES

YOU CAN VIEW AND DOWNLOAD THE INSTRUCTIONS FOR THIS TRANSMISSION HERE.
