S/S AUTOMATIC TRANSMISSION,GM 4L80E,93-6

S/S AUTOMATIC TRANSMISSION,GM 4L80E,93-6

B&M 118001BM

$3,370.40
$3,370.40
View full details

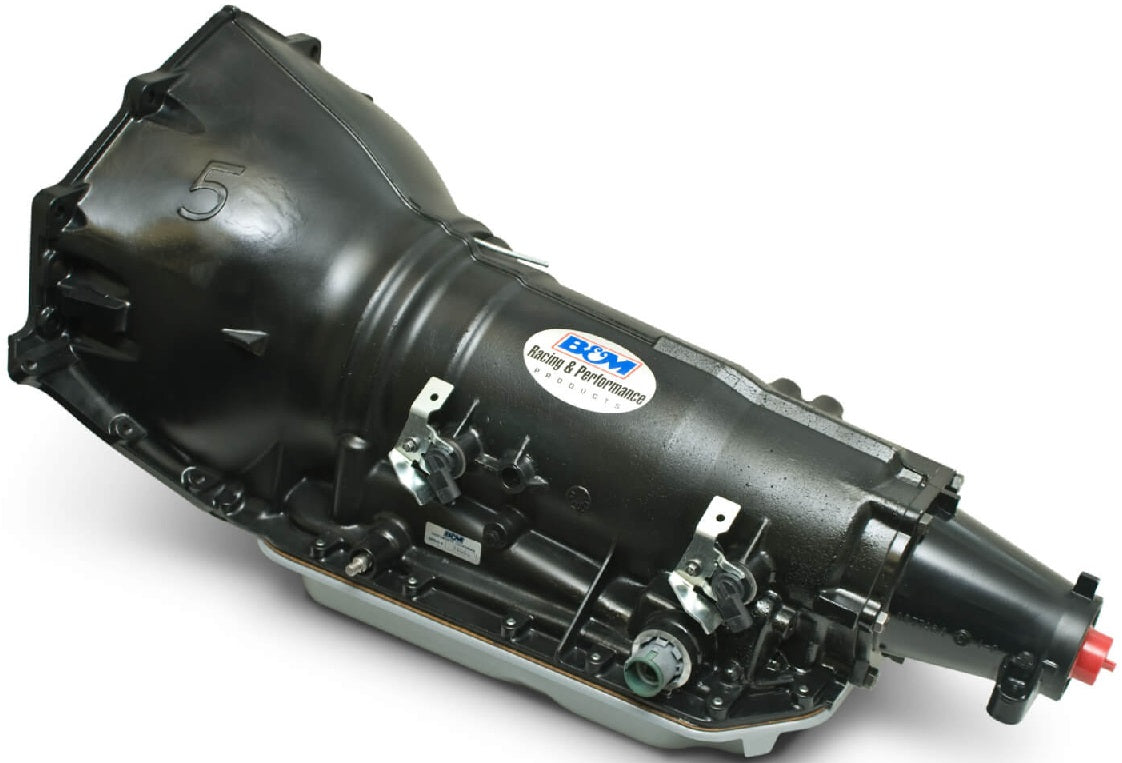

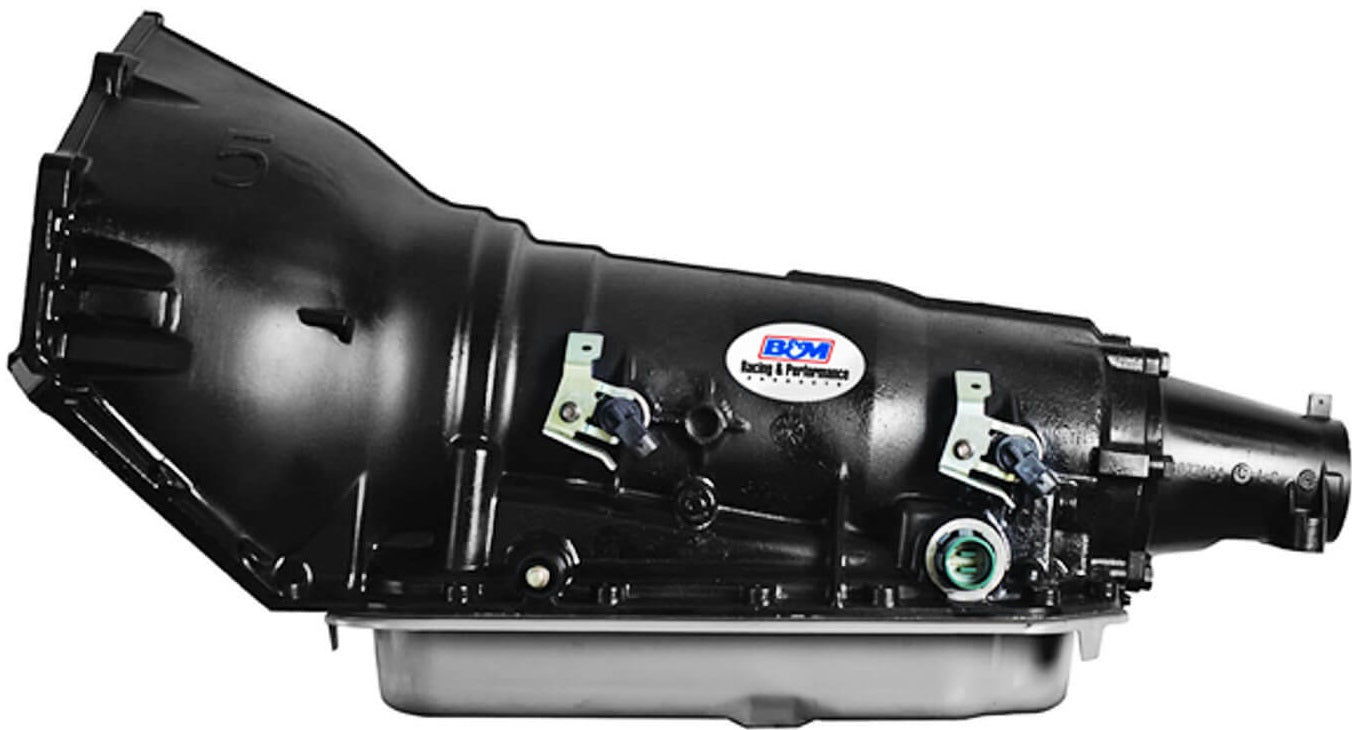

BRAND NEW B&M STREET/STRIP AUTO TRANSMISSION, 2WD, AUTO SHIFT VALVE BODY, COMPATIBLE WITH 1993-1996 GM 4L80E ENGINES

THE STREET/STRIP 4L80E TRANSMISSION IS PACKED WITH PERFORMANCE FEATURES SUCH AS PROVIDING FIRM SHIFTS, A HIGH ENERGY INTERMEDIATE BAND, NEW OVERDRIVE SPRAG ASSEMBLY, NEW LOW ROLLER ASSEMBLY AND ALL NEW PERFORMANCE FRICTION MATERIALS. OTHER FEATURES INCLUDE ALL NEW STEEL FORWARD HUB, SOLENOIDS, WIRING HARNESS, RE-CALIBRATED FORWARD PATTERN AUTOMATIC VALVE BODY AND PERFORMANCE PUMP ASSEMBLY.

BUILT TO HANDLE UP TO 800 HP/650 LB-FT OF TORQUE. FOR TRANSPLANT APPLICATIONS, THIS TRANSMISSION REQUIRES AN ELECTRONIC CONTROLLER, LIKE THE B&M SHIFTPLUS2 TRANSMISSION CONTROLLER #120001. CARBURETED APPLICATIONS REQUIRE A THROTTLE POSITION SENSOR (TPS) #120002. TO PREVENT CONTAMINATION OF WORN PARTS CIRCULATING THROUGH THE B&M TRANSMISSION, IT IS SUGGESTED TO REPLACE OR ADD A NEW B&M SUPERCOOLER TRANSMISSION COOLER.

NOTE: TRANSMISSION SHIPPED WITHOUT SPEEDOMETER DRIVEN GEAR OR HOUSING.

FEATURES:

  • B&M RACING RECALIBRATED VALVE BODY
  • 34 ELEMENT INTERMEDIATE SPRAG
  • B&M REBUILT PERFORMANCE PUMP
  • MAX 800 HP / 650 LB-FT

SPECS:

  • 2WD/4WD: 2WD
  • BRAKE INCLUDED: NO
  • BUILT-IN TRANSMISSION SHIELD: NO
  • CASE MATERIAL: CAST ALUMINUM
  • COLOR: BLACK
  • CONTROL TYPE: ELECTRONIC
  • COOLER INCLUDED: NO
  • CORE CHANGE APPLICABLE: NO
  • DIPSTICK INCLUDED: NO
  • DRIVE TYPE: RWD
  • FRICTION PLATES: NEW
  • GEAR RATIO-1ST: 2.48
  • GEAR RATIO-4TH: 0.75
  • GEAR RATIO-2ND: 1.48
  • GEAR RATIO-3RD: 1.00
  • HORSEPOWER RATING: 800
  • INPUT SHAFT SPLINE COUNT: 32
  • INPUT SPLINE COUNT: 32
  • MANUAL VALVE BODY: NO
  • PART TYPE: HIGH PERFORMANCE
  • PRODUCT TYPE: AUTOMATIC TRANSMISSION ASSEMBLY
  • REVERSE GEAR RATIO: 2.08
  • REVERSE PATTERN: NO
  • TORQUE CONVERTER INCLUDED: NO
  • TORQUE RATING (FT/LBS): 650
  • TRANSBRAKE: NO
  • TRANSMISSION MODEL: 4L80E
  • TRANSMISSION PAN FINISH: CHROME
  • TRANSMISSION PAN MATERIAL: STEEL
  • TRANSMISSION PAN TYPE: STAMPED
  • TRANSMISSION SERIES: STREET/STRIP
  • TRANSMISSION SPEEDS: 4
  • TRANSMISSION TYPE: 4L80E
  • VALVE BODY CONFIGURATION: RECALIBRATED
  • VALVE BODY PATTERN: FORWARD
  • VALVE BODY TYPE: AUTOMATIC
  • CALIFORNIA PROPOSITION 65 CHEMICAL NAME: BENZENE,CHROMIUM (HEXAVALENT COMPOUNDS) & LEAD
  • CALIFORNIA PROPOSITION 65 REQUIRED: YES

YOU CAN VIEW AND DOWNLOAD THE INSTRUCTIONS FOR THIS TRANSMISSION HERE.
