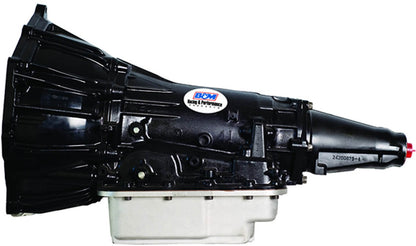

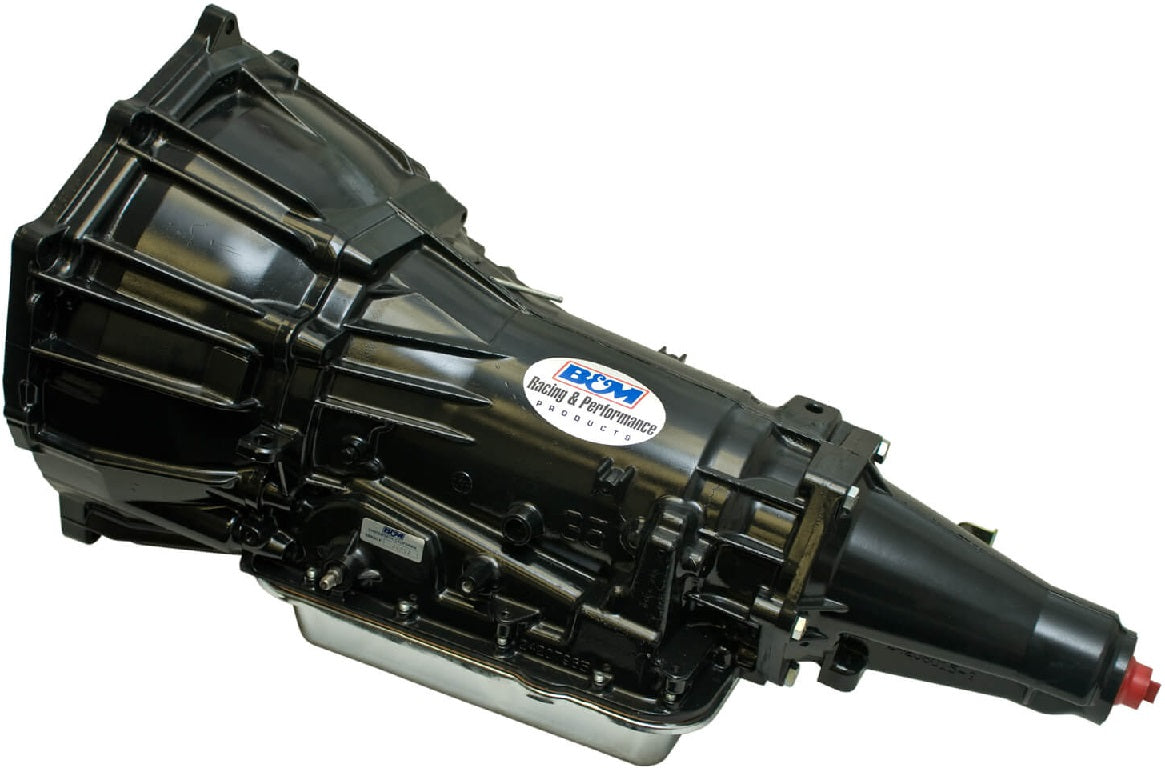

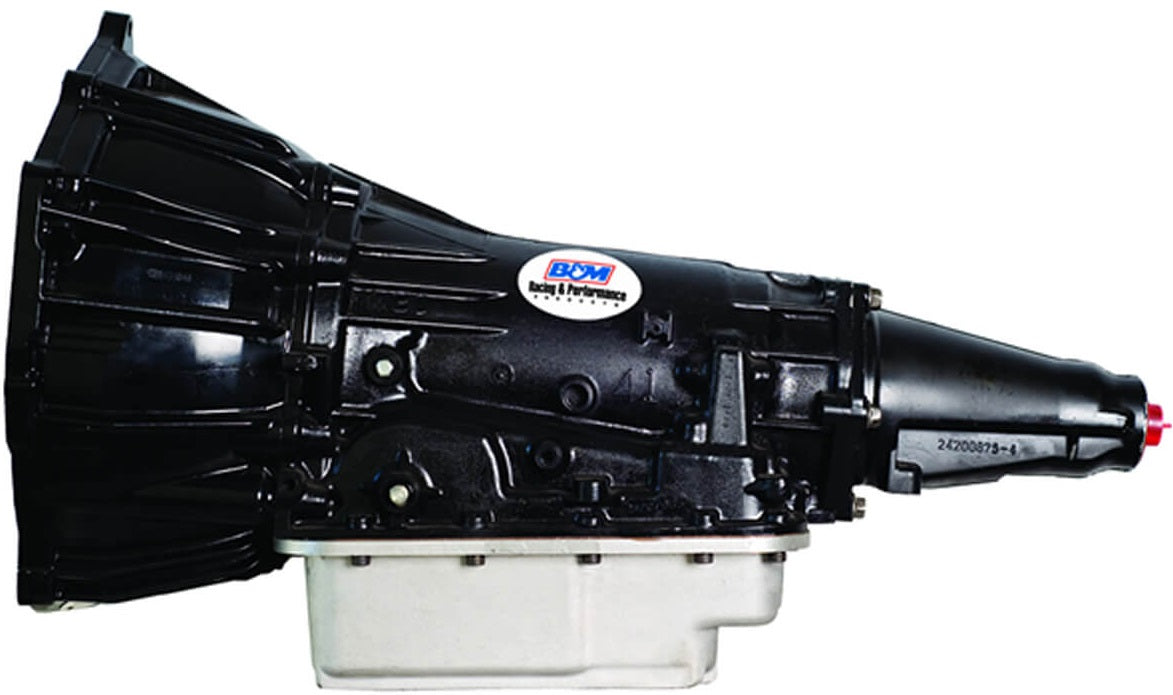

S/S AUTOMATIC TRANSMISSION,CHEVY LS,4L60

BRAND NEW B&M STREET/STRIP AUTO TRANSMISSION, 2WD, 4L60E WITH ELECTRONIC SHIFT MODEL, COMPATIBLE WITH 1998-2006 GM LS ENGINES

SEVERAL PARTS HAVE BEEN REPLACED TO ASSURE OPTIMAL PERFORMANCE INCLUDING REPLACING THE FACTORY FRICTION PLATES WITH HIGH PERFORMANCE FRICTION PLATES, RE-CALIBRATED VALVE BODY, BEAST SUNSHELL, REINFORCED INPUT DRUM, ALL NEW SOLENOIDS, WIRING HARNESS ALONG WITH A REBUILT PERFORMANCE PUMP TO ASSURE OPTIMUM FLOW RATE EVEN IN DEMANDING CONDITIONS.

A CHROME TRANSMISSION PAN IS INSTALLED TO CONTAIN THE FLUID. THE TRANSMISSION PROVIDES FIRM SHIFTS AND FEATURES A STANDARD SHIFT PATTERN, THESE ARE THE FINEST AVAILABLE FOR STREET AND STRIP USE. MAX 550 HP / 450 FT/LBS.

NOTE: FITS 1998-2006 GM 4L60E (ELECTRONIC SHIFT MODEL) FOR LS ENGINES, 2-WHEEL DRIVE. DOES NOT REPLACE 4L60 (MANUAL SHIFT MODEL). TRANSMISSION SHIPPED WITHOUT SPEEDOMETER DRIVE GEAR.

NOTE: RECOMMENDED TO ADD B&M HI-TEK SUPERCOOLER WITH ALL NEW TRANSMISSION INSTALLS.

FEATURES:

• INCLUDES CHROME STANDARD DEPTH TRANSMISSION PAN
• 8 COUNT 3-4 FRICTION PACK WITH KOLEEN STEELS
• ALL NEW HIGH PERFORMANCE FRICTION PLATES
• ALL NEW SOLENOIDS & WIRING HARNESS
• BILLET CORVETTE 4TH GEAR SERVO
• FULLY RE-CALIBRATED VALVE BODY
• 29 ELEMENT DUAL CAGE SPRAG
• HEAVY DUTY BEAST SUNSHELL
• SEVEN HOLE LS BELLHOUSING
• REINFORCED INPUT DRUM
• FORWARD SHIFT PATTERN

SPECS:

• 2WD/4WD: 2WD
• BRAKE INCLUDED: NO
• BUILT-IN TRANSMISSION SHIELD: NO
• CASE MATERIAL: CAST ALUMINUM
• CONTROL TYPE: HYDRAULIC
• COOLER INCLUDED: NO
• CORE CHANGE APPLICABLE: NO
• DIPSTICK INCLUDED: NO
• DISCLAIMER: SHIPPED WITHOUT SPEEDOMETER DRIVEN GEAR OR HOUSING
• DRIVE TYPE: RWD
• FRICTION PLATES: NEW
• GEAR RATIO-1ST: 3.06
• GEAR RATIO-4TH: 0.70
• GEAR RATIO-2ND: 1.63
• GEAR RATIO-3RD: 1.00
• HORSEPOWER RATING (HP): 550
• HP/TORQUE: MAX 550 HP / 450 FT/LBS.
• MANUAL VALVE BODY: NO
• PART TYPE: HIGH PERFORMANCE
• PRODUCT TYPE: AUTO TRANSMISSION ASSEMBLY
• REVERSE GEAR RATIO: 2.29
• REVERSE PATTERN: NO
• TORQUE CONVERTER INCLUDED: NO
• TORQUE LIMITS: 550 LB
• TORQUE RATING (FT/LBS): 550
• TRANSBRAKE: NO
• TRANSMISSION MODEL: 4L60E
• TRANSMISSION SERIES: STREET/STRIP
• TRANSMISSION SPEEDS: 4
• TRANSMISSION TYPE: 4L60E
• VALVE BODY CONFIGURATION: RECALIBRATED
• VALVE BODY PATTERN: FORWARD
• VALVE BODY TYPE: AUTOMATIC
• CALIFORNIA PROPOSITION 65 CHEMICAL NAME: BENZENE,CHROMIUM (HEXAVALENT COMPOUNDS) & LEAD
• CALIFORNIA PROPOSITION 65 REQUIRED: YES

YOU CAN VIEW AND DOWNLOAD THE INSTRUCTIONS FOR THIS TRANSMISSION HERE.
