INTERCOOLER SYSTEM,MQB 1.8T/2.0T,15-26 A3,TT,GOLF,JETTA

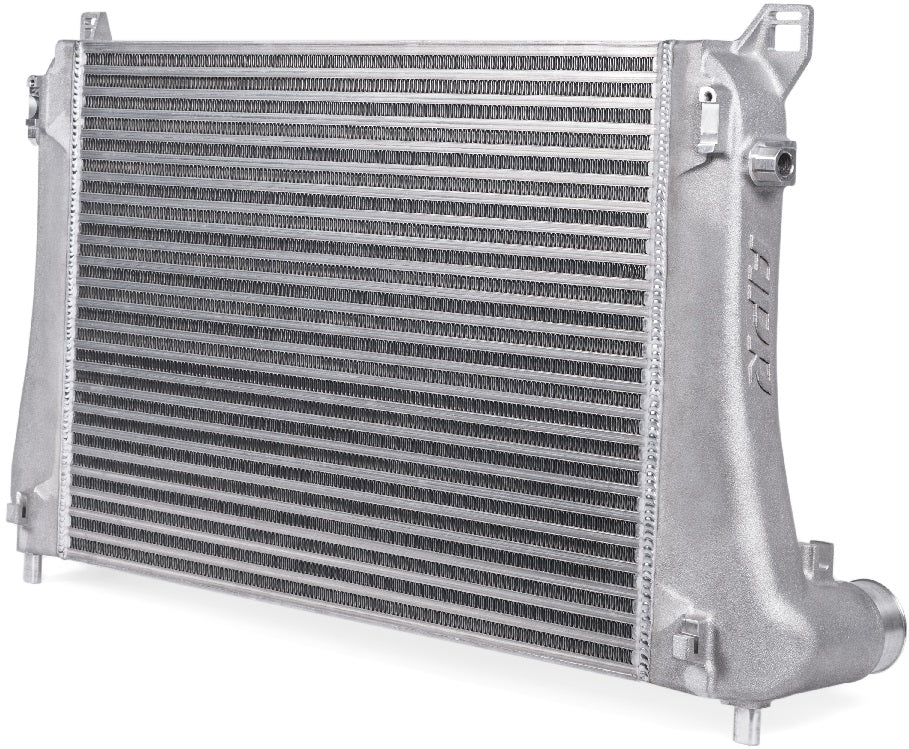

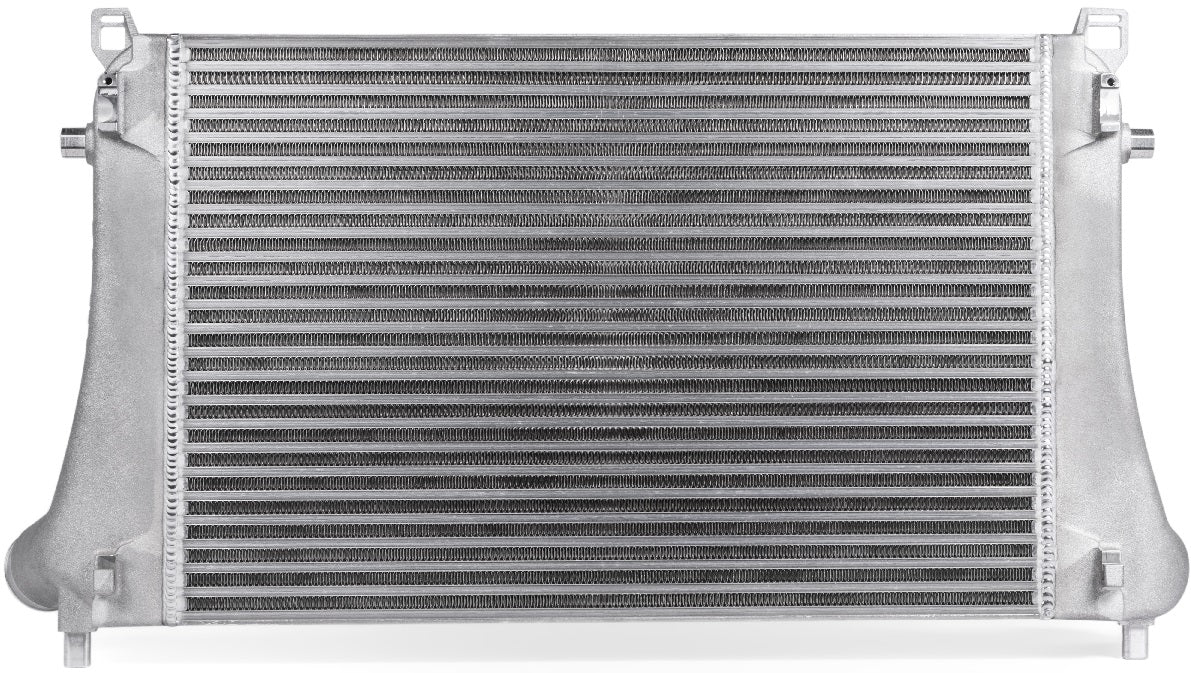

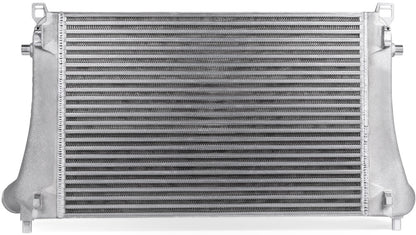

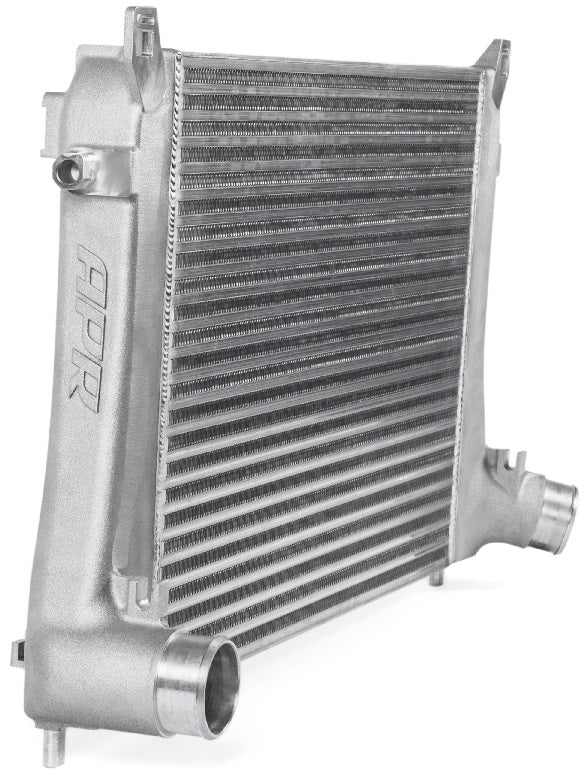

Brand New APR Intercooler System, Silver Finish, MGB 2.0T 8 Speed, Bar & Plate Core (Part #IC100019).

The APR Intercooler System is a OEM-location upgrade that dramatically reduces intake air temperature (IAT), minimizes heat soak, and provides increased performance! The system is a direct bolt-on upgrade that requires no trimming and is recommended at every stage of performance.

Fits:

• Audi:

  • 2015-2024 A3

  • 2015-2026 A3 Quattro

  • 2015-2026 S3

  • 2016-2023 TT Quattro

  • 2016-2023 TTS Quattro
• Volkswagen:
  • 2022-2023 Arteon
  • 2015-2018 Golf
  • 2017-2019 Golf Alltrack
  • 2015-2026 Golf R
  • 2015-2019 Golf Sportwagen
  • 2015-2026 GTI
  • 2019-2026 Jetta

Features:

• Dramatically lowers intake air temp (IAT)

• Use of the OEM-location allows for a massive intercooler core

• Intercooler installed in the best location for this platform

• Utilizes factory air dams for exceptional airflow across the core

• 100% compatible with the adaptive cruise control (ACC) system

• Highly effective core design

• Bar-and-plate core with staggered and louvered fins

• Rigorous testing determined core style, fin density & size

• Low pressure drop & highly effective cooling = high performance

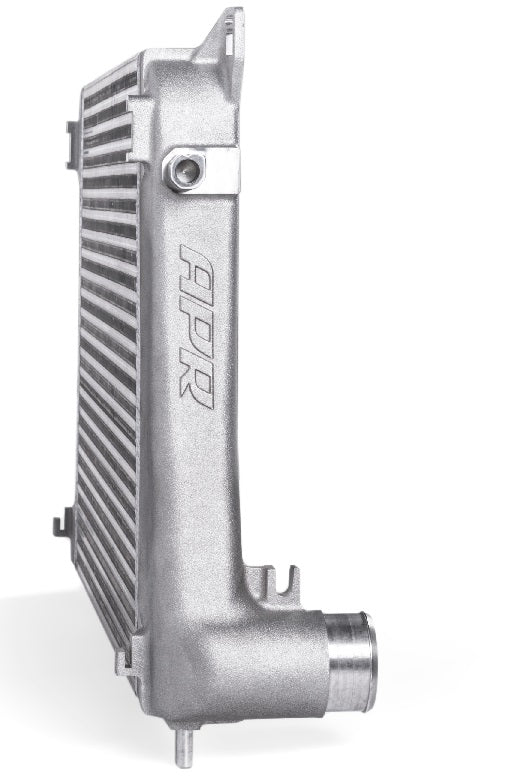

• Smooth cast end tanks

• Engineered for low turbulence/restriction and maximum flow

• Organically shaped to promote airflow across entire core

• Pressure tested to prevent power robbing boost leaks

• No trimming, cutting, or other costly modification required

• With the best equipment and smartest engineers, it just works

Specs:

• Brand: APR

• Color: Silver / Natural

• Cooler Type: Air To Air

• Core Frontal Area (Inch Sq): 390.00

• Core Height (In): 16.25

• Core Type: Bar And Plate

• Core Volume (Inch Cubed): 877.50

• Core Width (In): 2.25

• Direct Compatibility: Yes

• End Tank Construction: Cast

• End Tank Material: 356-f Aluminum

• Product Type: Charge Air Cooler

You can view and download the assembly instructions here.
