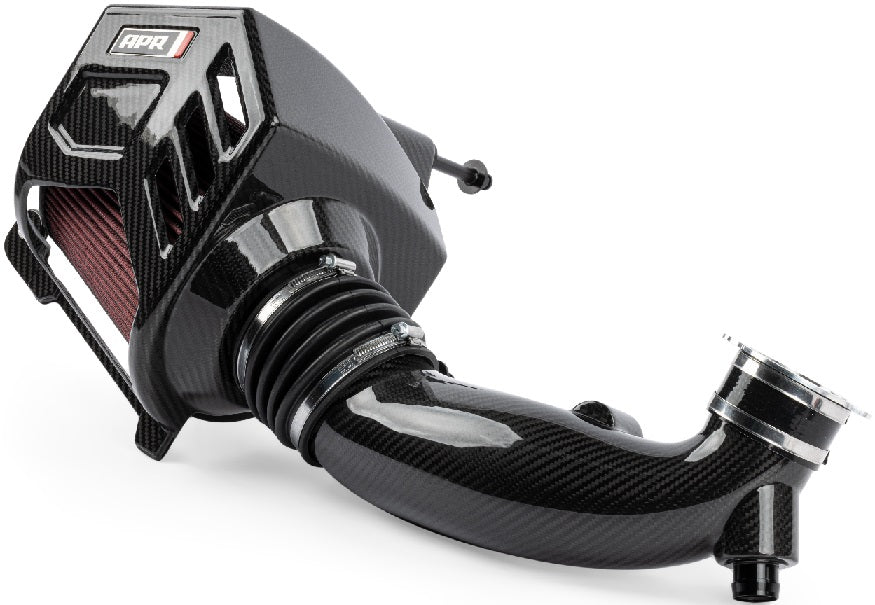

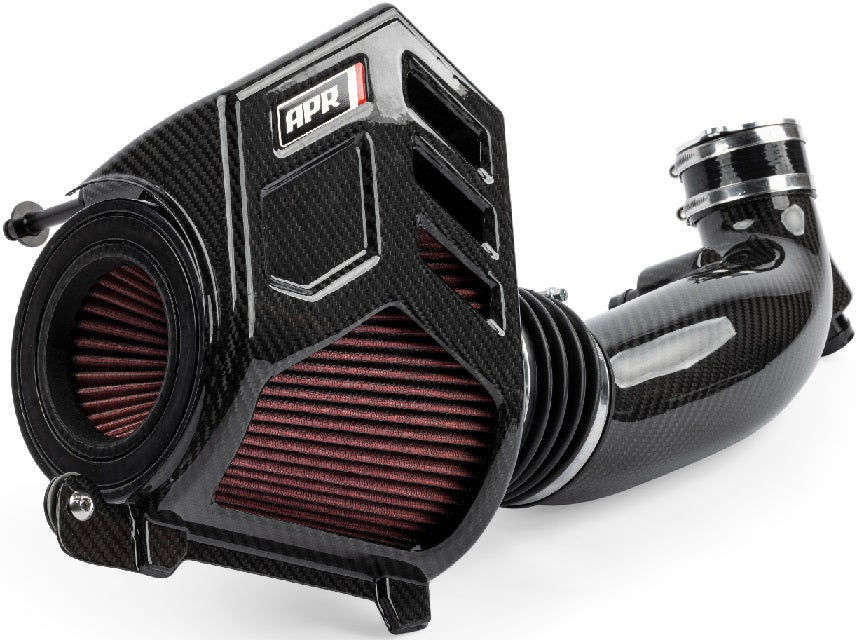

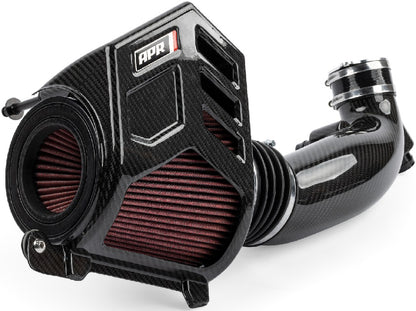

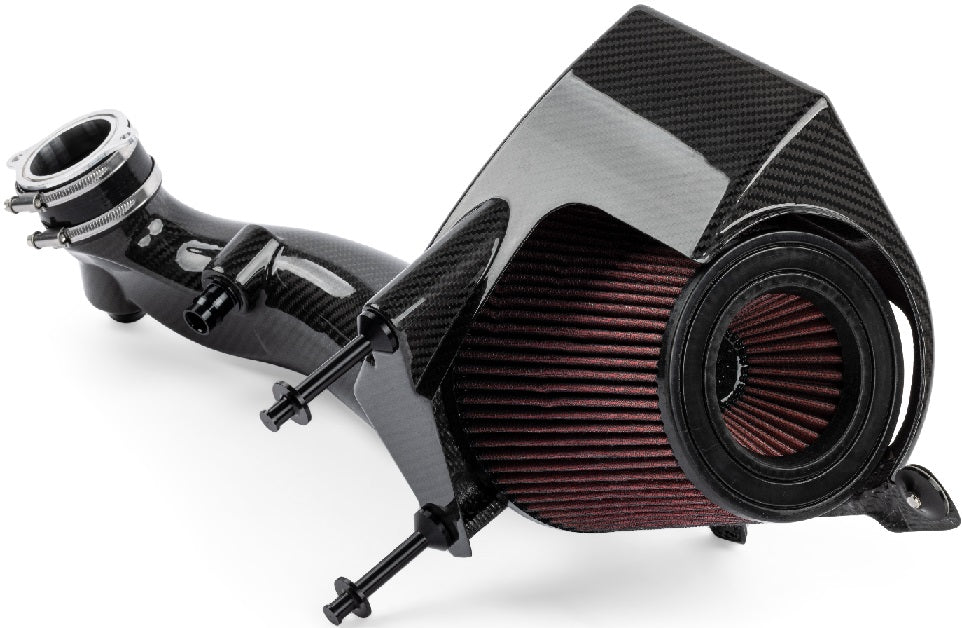

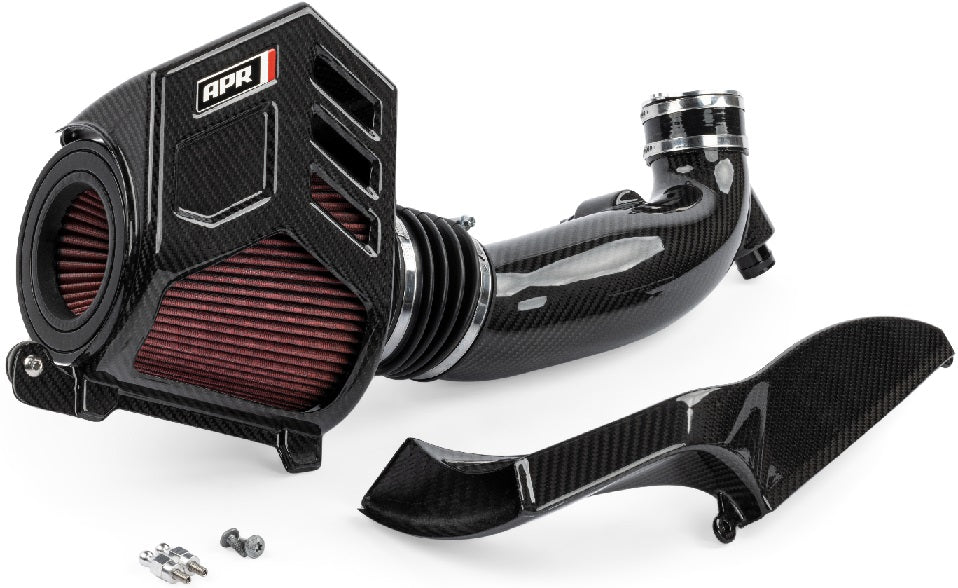

CARBON FIBER INTAKE,3.0T,2019-UP AUDI A6,A7,A6 ALLROAD

BRAND NEW APR CARBON FIBER INTAKE SYSTEM, COMPATIBLE WITH 2019 & UP AUDI A6, A7 & A6 ALLROAD WITH 3.0T ENGINES

FULL UPGRADE AS IT REPLACES ALL OF THE INTAKE COMPONENTS FROM THE INLET SCOOP ALL THE WAY TO THE TURBO INLETS. THIS IS EXTREMELY IMPORTANT AS FOCUSING ON THE AIRBOX ALONE DOES NOT ADDRESS THE MAIN RESTRICTIONS FOUND IN THE FACTORY INTAKE SYSTEM. THE SYSTEM FLOWS BETTER THAN STOCK, MAKES MORE POWER, PUTS LESS STRAIN ON THE TURBOCHARGER & ENHANCES THE SOUND OF THE ENGINE.

THE FACTORY TURBOCHARGER INLET PIPE IS A BIG RESTRICTION POINT BECAUSE IT IS SMALL. IT IS COMMON FOR MOST INTAKE SYSTEMS TO ONLY FOCUS ON THE FILTER AND AIRBOX, BUT DOING SO ONLY HAS MINIMAL IMPACT ON PERFORMANCE. UPGRADING THE TURBOCHARGER INLET PIPE ONLY HAS MINIMAL IMPACT ON PERFORMANCE IF IT STILL NECKS DOWN TO WITH THE FACTORY OR AFTERMARKET INTAKE AIRBOX. THIS IS SOLVED BY MAKING OUR PIPE AS LARGE AS POSSIBLE FROM 4" FILTER OUTLET ALL THE WAY TO TURBOCHARGER INLET IN ONE PIECE! THIS MINIMIZES PRESSURE DROP AND INCREASES FLOW THROUGH THE SYSTEM FAR BETTER THAN A MULTI-PIECE SOLUTIONS.

MADE FROM CARBON FIBER AND LOOKS ABSOLUTELY STUNNING UNDER THE HOOD. BY USING THIS MATERIAL WE ARE ABLE TO MAKE THE WALL-THICKNESS OF THE TUBES SMALLER, MAXIMIZING THE INTERNAL DIAMETER, INCREASING PERFORMANCE EVEN MORE! THE MATERIAL ALSO ALLOWS US TO MAKE COMPLEX ORGANIC SHAPES NECESSARY WHEN WORKING IN A TIGHT ENGINE BAY.

THE AIRBOX ON THIS PLATFORM IS TINY & LEAVES NEARLY NO ROOM TO UPGRADE THE FILTER. OUR SYSTEM WORKS AS A HEAT SHIELD BUT IS OPEN ON THE BOTTOM AND SIDE TO ALLOW FOR A LARGER FILTER AND MAXIMUM AIRFLOW. THIS KEEPS AIR TEMPS DOWN, AND INCREASES SOUND WITHOUT IT BEING OVERBEARING. THE FILTER IS MASSIVE AS WELL. A BIG FILTER IS DESIRABLE AS INCREASING FILTERED SURFACE AREA KEEPS THE FILTER BREATHING EASILY. IT MEASURES 7" BY 7" WITH A 5.5" FRONTAL INLET & 4" OUTLET.

COMPATIBLE WITH:

• AUDI:
• 2019-2023 A6 QUATTRO
• 2020-2023 A6 ALLROAD
• 2019-2023 A7 SPORTBACK

FEATURES:

• FULL INTAKE SYSTEM: INLET, AIRBOX, FILTER & INLET PIPING
• +19 AWHP & +17 AWFT-LBS AT THE WHEELS MEASURED OVER STOCK
• FLOWS 45% MORE THAN STOCK AT 28" H2O
• REDUCED PRESSURE DROP AT THE TURBO INLET
• ENHANCED ENGINE SOUND
• CARBON FIBER CONSTRUCTION
• TURBO SPOOL FASTER
• TURBO OPERATE MORE EFFICIENTLY
• MASSIVE 7X7 INCH FILTER WITH A 4" OUTLET AND 5.5 INCH FRONTAL INLET
• HIGH FLOW AND WASHABLE PLEATED COTTON GAUZE FILTER MATERIAL
• AIRBOX OPEN AWAY FROM ENGINE TO MAXIMIZE FLOW AND FILTER SIZE IN A RESTRICTED SPACE
• INLET PIPING DIAMETER IS MAXIMIZED FROM THE 4 INCH FILTER ALL THE WAY TO THE TURBOCHARGER
• INLET PIPING ADDRESSES SYSTEM RESTRICTION, UNLIKE COMPETITIVE AIRBOX SYSTEMS THAT ARE COMPATIBLE WITH FACTORY INLET PIPING
• BILLET TURBO ADAPTER RINGS MAKE FITTING THIS SYSTEM TO LARGER TURBO POSSIBLE

SPECS:

• BRAND: APR
• FILTER COLOR/MATERIAL: RED/PLEATED COTTON GAUZE
• MATERIAL: CARBON FIBER
• PRODUCT TYPE: INTAKE SYSTEM

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE SYSTEM HERE.
