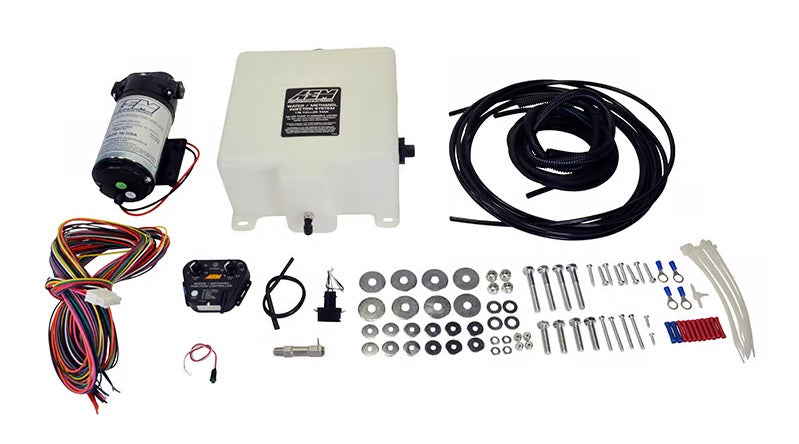

H2O INJ KIT V3,INT MAP,1GAL

Brand New Boost Dependent AEM Water Methanol Injection Kit, On-Board MAP Sensor Included, Compatible with High Boost Engines Up to 35 PSI of Boost (Part #30-3300).

Water/Methanol for Forced Induction Gas Engines: This boost dependent kit for forced induction vehicles can handle up to 35 PSI of boost. The Boost Dependent controller has an on-board manifold absolute pressure (MAP) sensor with a molded-in nipple for a boost hose pickup.

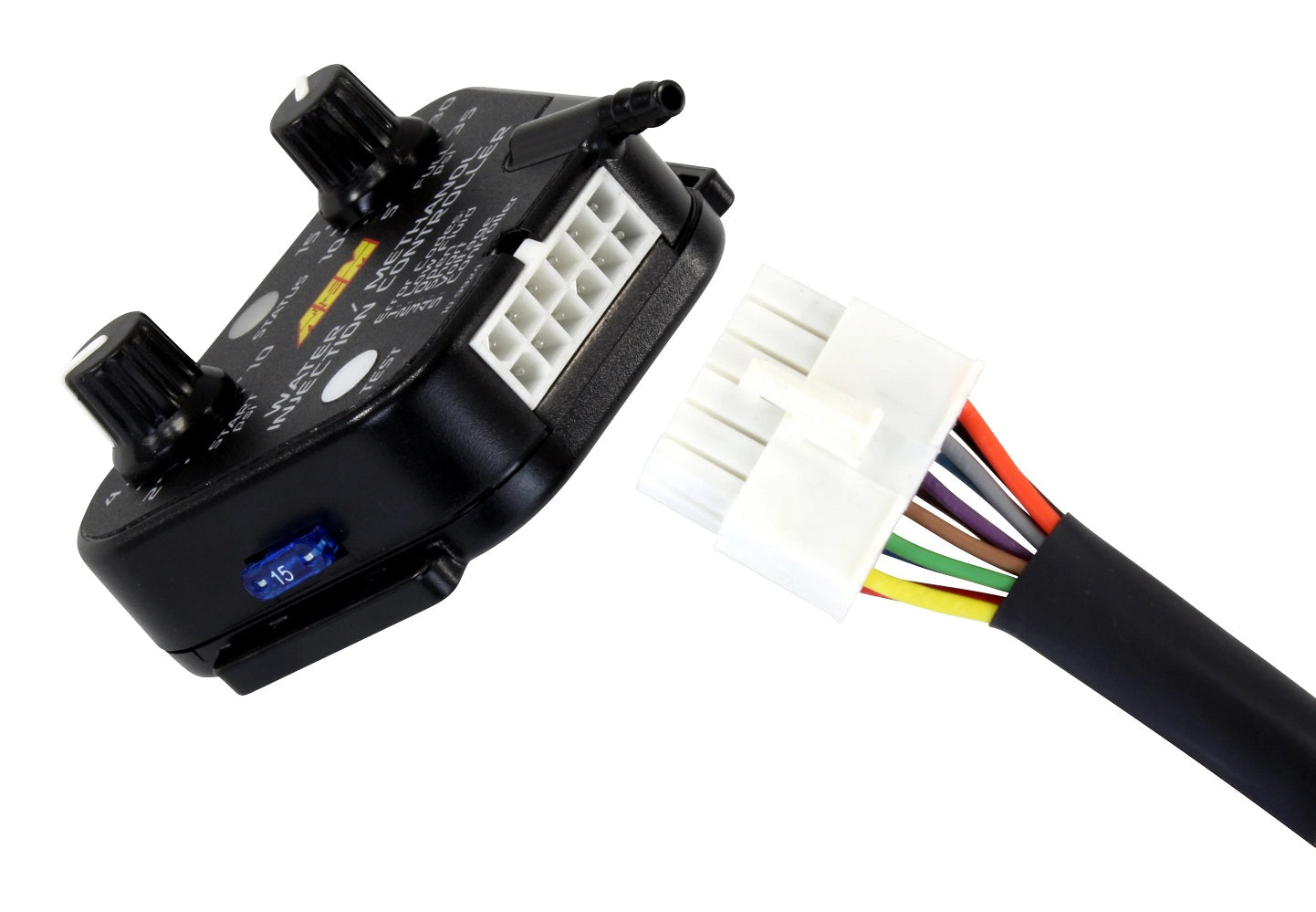

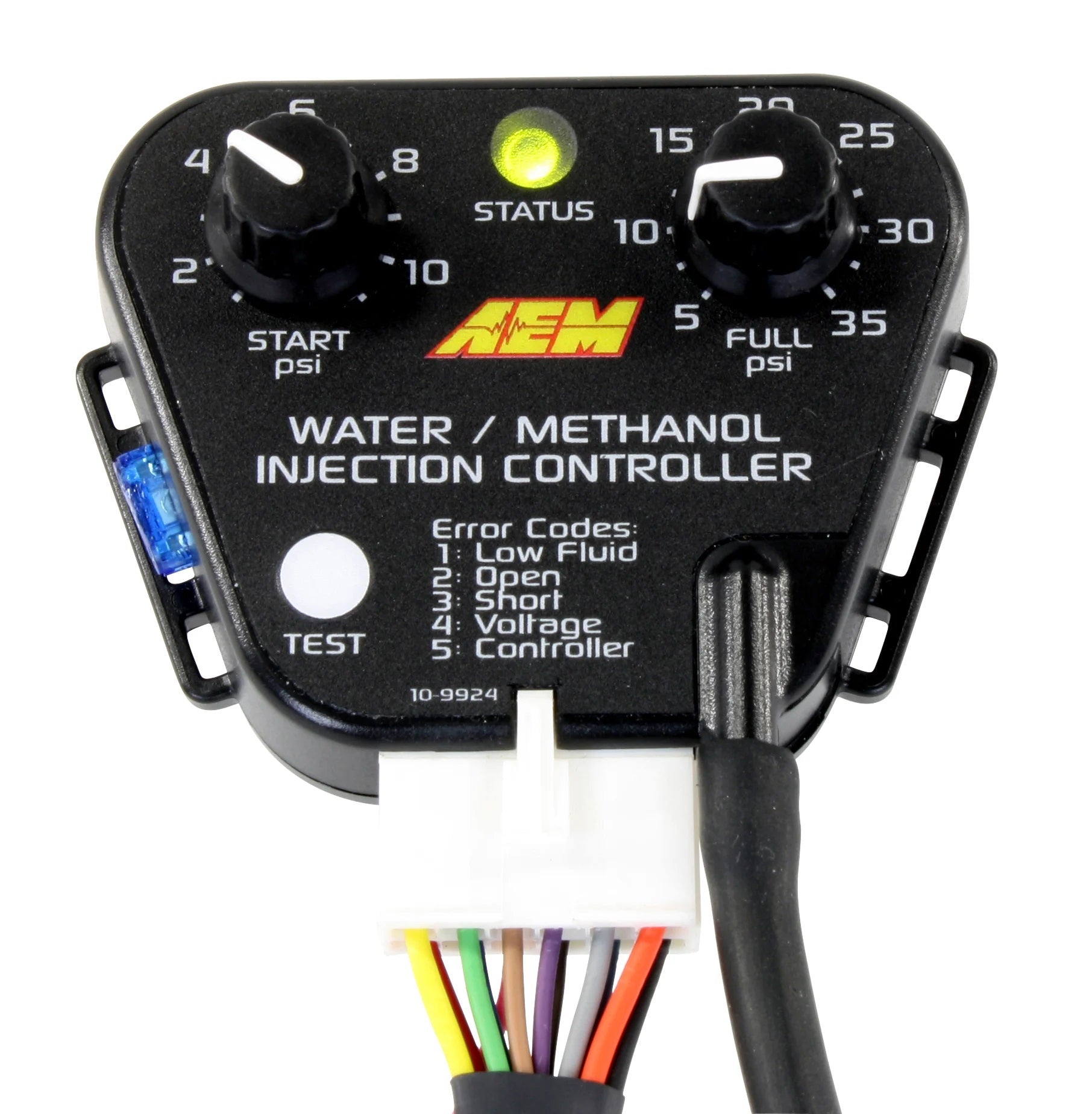

Robust, Easy to Use Controller Design: The new controller design features large, turn-resistant knobs and larger numbering to easily set accurate start and full activation points, with covered status LED and test buttons for added splash resistance. A plug is integrated into the controller housing for mating to the redesigned wiring harness's positive-lock connector. The controller housing has a molded-in, barbed nipple to accept a boost hose and a wiring legend on the back. The controller housing features an easy to access integrated fuse and molded mounting tabs.

Boost Safe Feature: The new controller retains the "Boost Safe" injection failsafe system, which is an output that will activate if there is a short, loss of continuity or high or low voltage or low fluid condition, allowing users to define their failsafe strategy from something as simple as flashing a warning light to more advanced strategies like pulling boost or ignition, or switching fuel maps on a standalone engine management system.

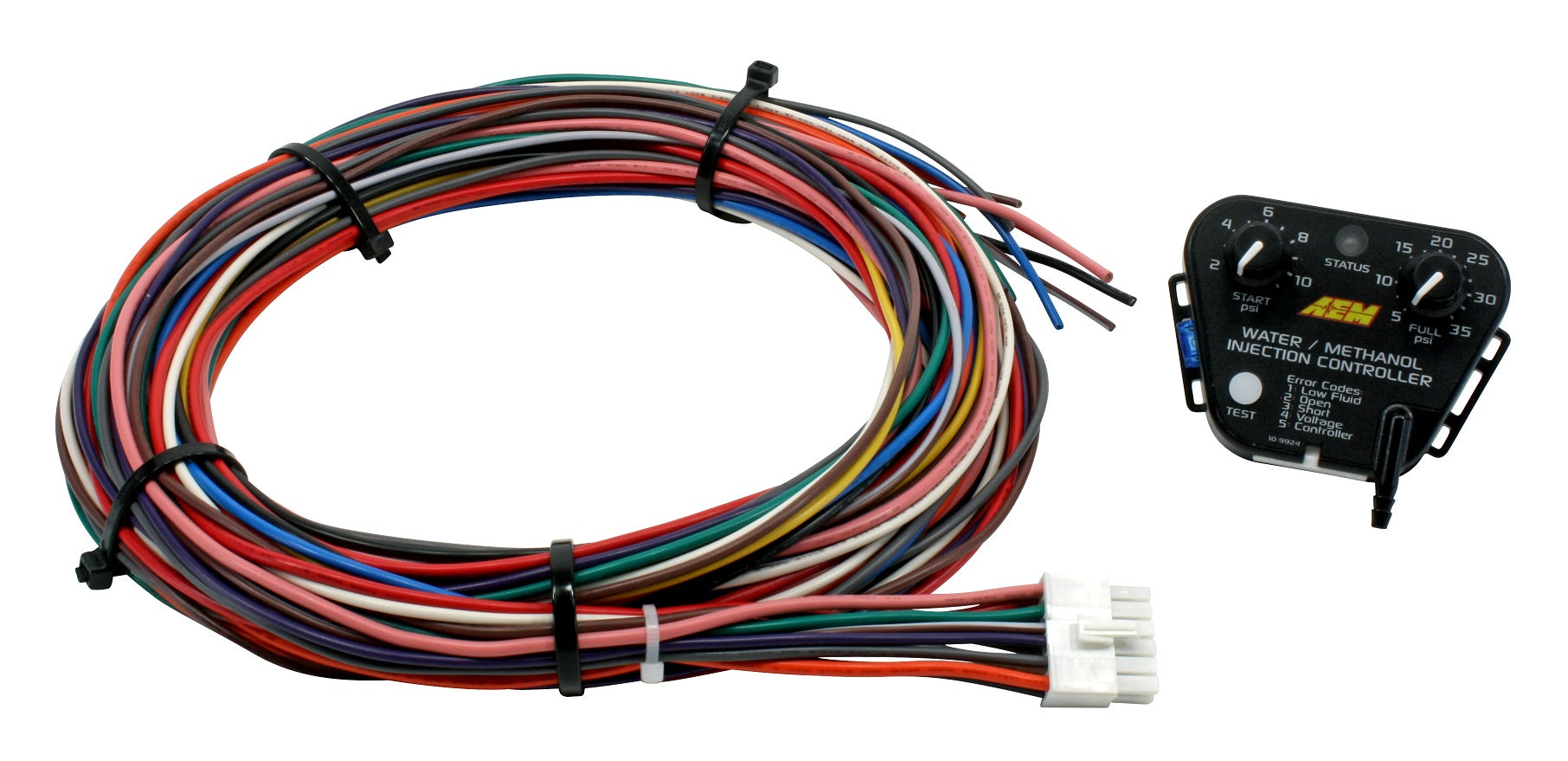

Simplified Wiring: The new wiring harness is terminated with a positive-lock connector on one end and has color-coded wires to ease installation. An integrated Pump Ground circuit is included in the harness which simplifies the wiring process and eliminates any chance of the pump accidentally activating from a short in the system. An additional wire is included for adding an optional on/off solenoid to stop fluid flow when the system is inactive.

Improved Injector Flow Rate & Nozzle Sizes: AEM's engineers spent extensive time revamping the controller's flow control strategy for a more linear flow output delivery. This means that the flow delivery better matches an engine's need for water/methanol injection, which further optimizes charge air cooling and detonation control. Three resized injector nozzles are in each kit and allow for improved flow capability.

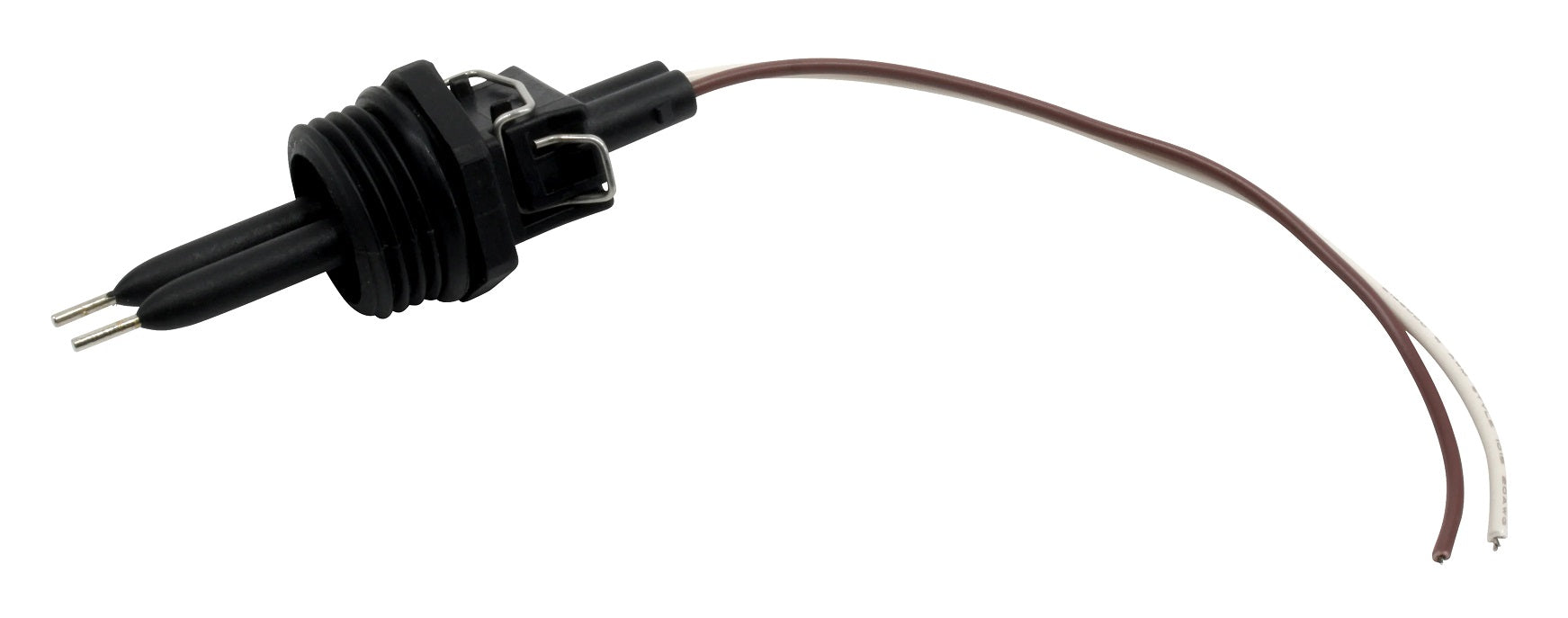

New Low Level Fluid Indicator: A more accurate, conductive low level fluid sensor is integrated into the tank and features a positive lock connector with color-matched wires to the wiring harness. The sensor eliminates any chance of incorrect readings due to interference from debris.

Features:

• 30-3300 Boost Dependent kit (up to 35PSI) includes molded-in nipple for boost hose
• Large adjustment knobs and numbering for easy programming
• Covered status LED and test button for improved splash resistance
• Integrated plug for mating to positive-lock connector on harness
• Integrated fuse and mounting tabs
• Terminated harness features positive lock connector with integrated pump ground circuit and additional wire for optional on/off flow solenoid
• 1 Gallon tank with built-in conductive low fluid level indicator
• Includes “Boost Safe” readiness failsafe system

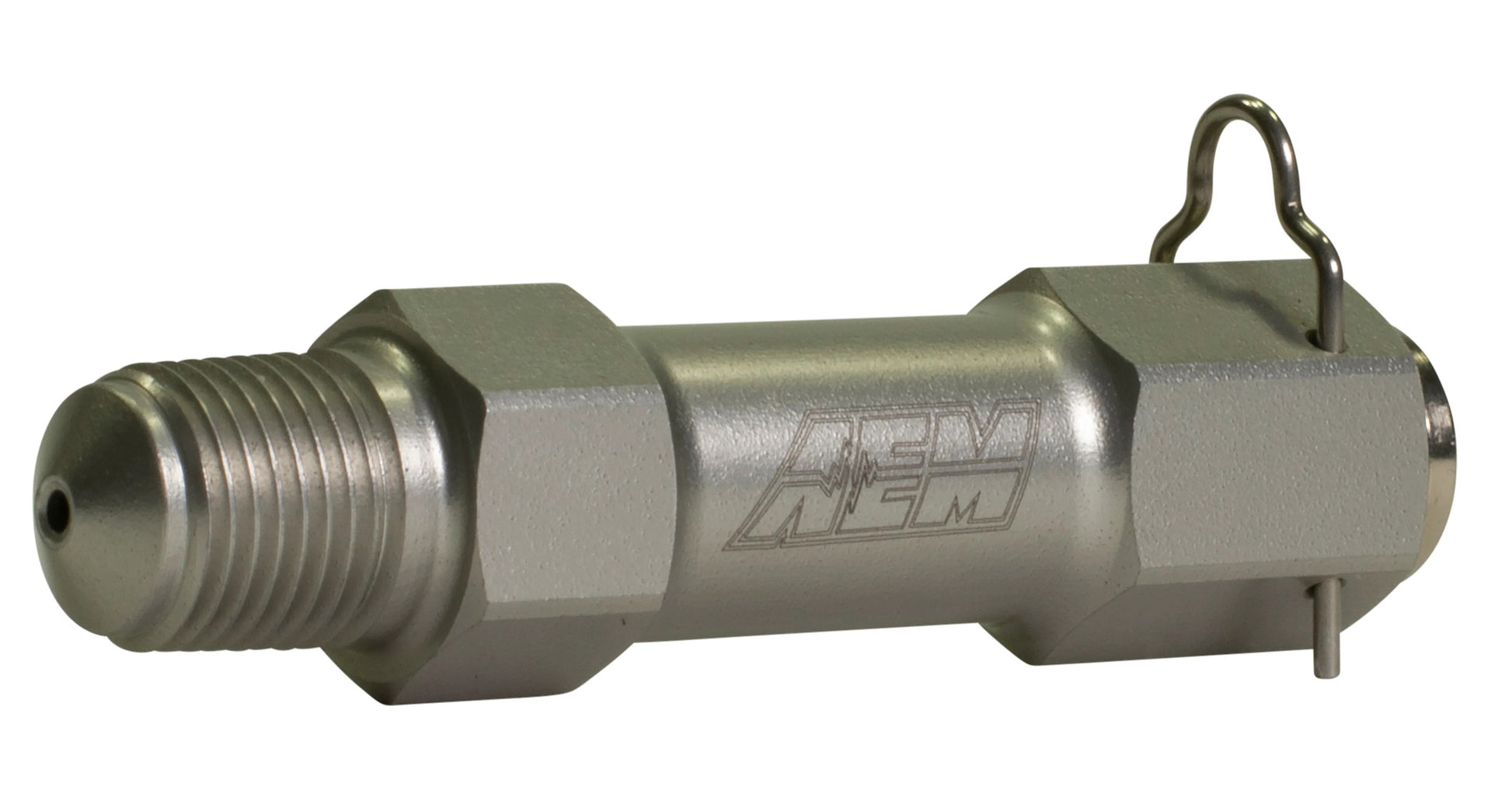

• One machined billet injector with integral check valve to prevent unintended flow
• Three interchangeable injector nozzles to cover a wide variety of HP levels (250cc/min, 500 cc/min & 1,000cc/min)

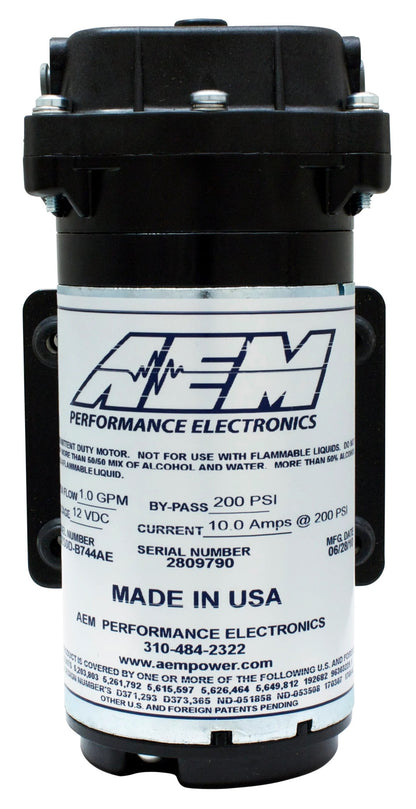

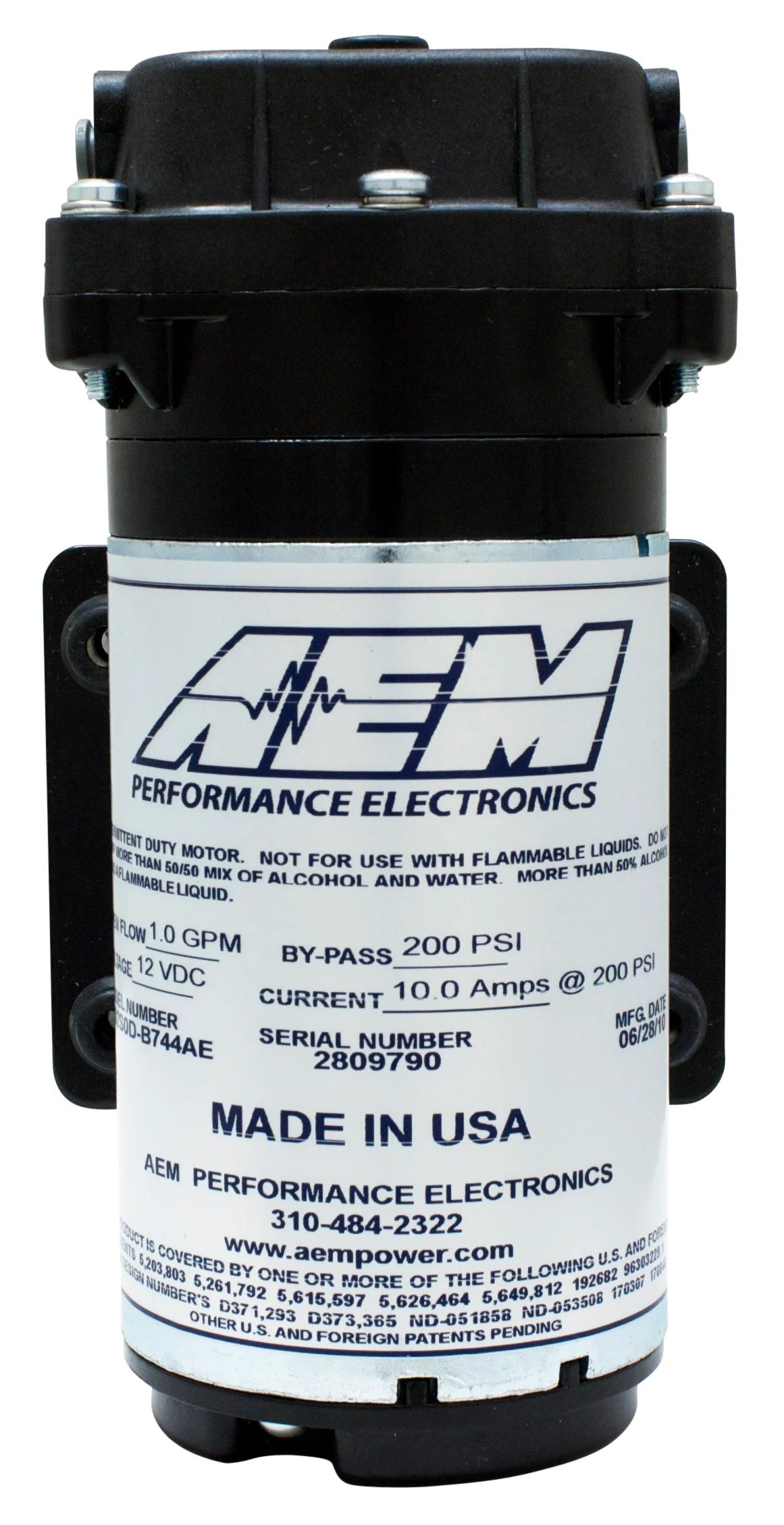

• Recirculation-style pump with integral fittings for quiet operation
• LED dash light for system status and low fluid warning
• 20 ft. of high-pressure Nylon injection tubing

Specs:

• Brand: AEM
• Emission Code: 4
• Product Type: Water Methanol Part

You can view and download the assembly/instruction booklet here.
