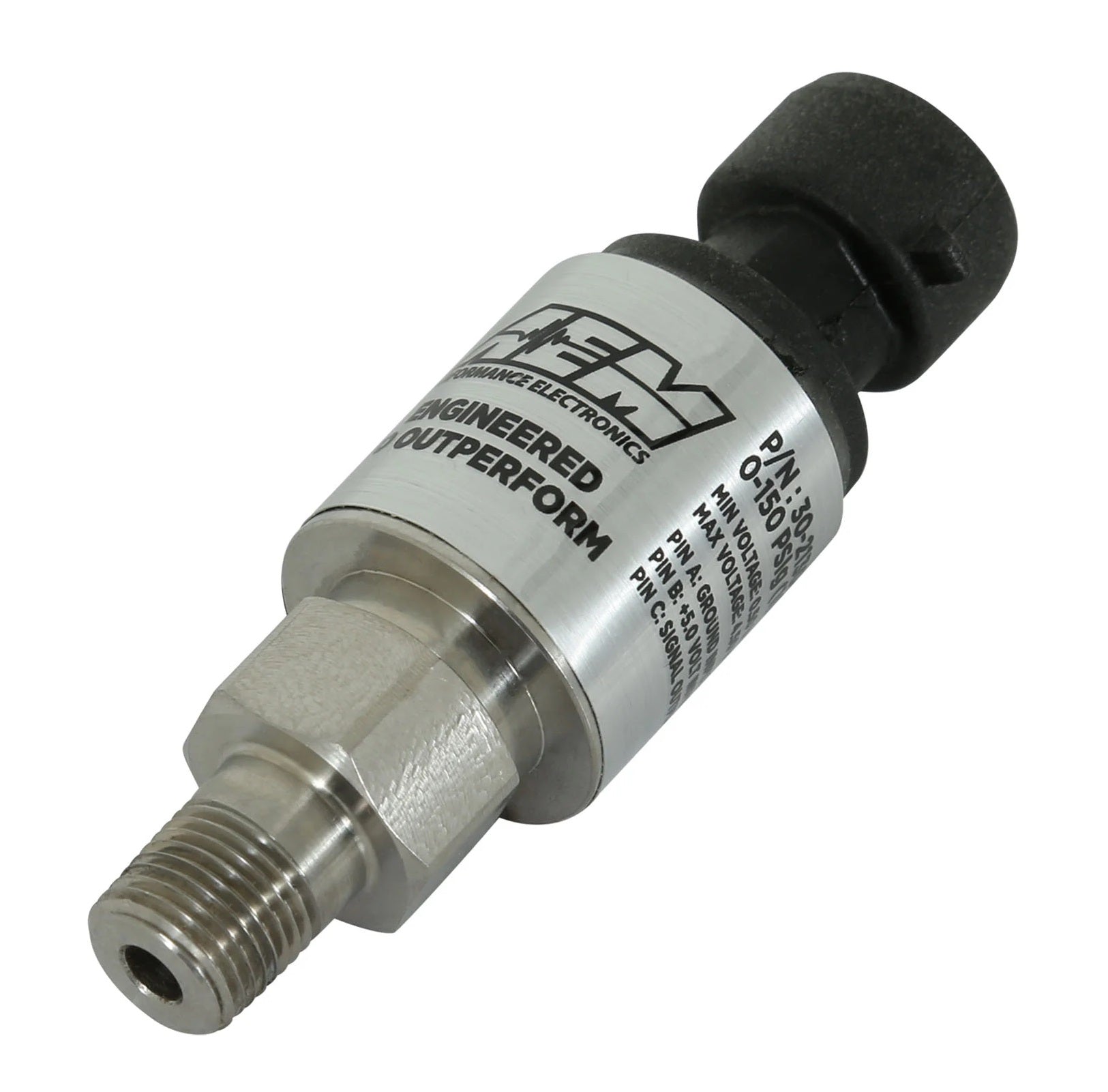

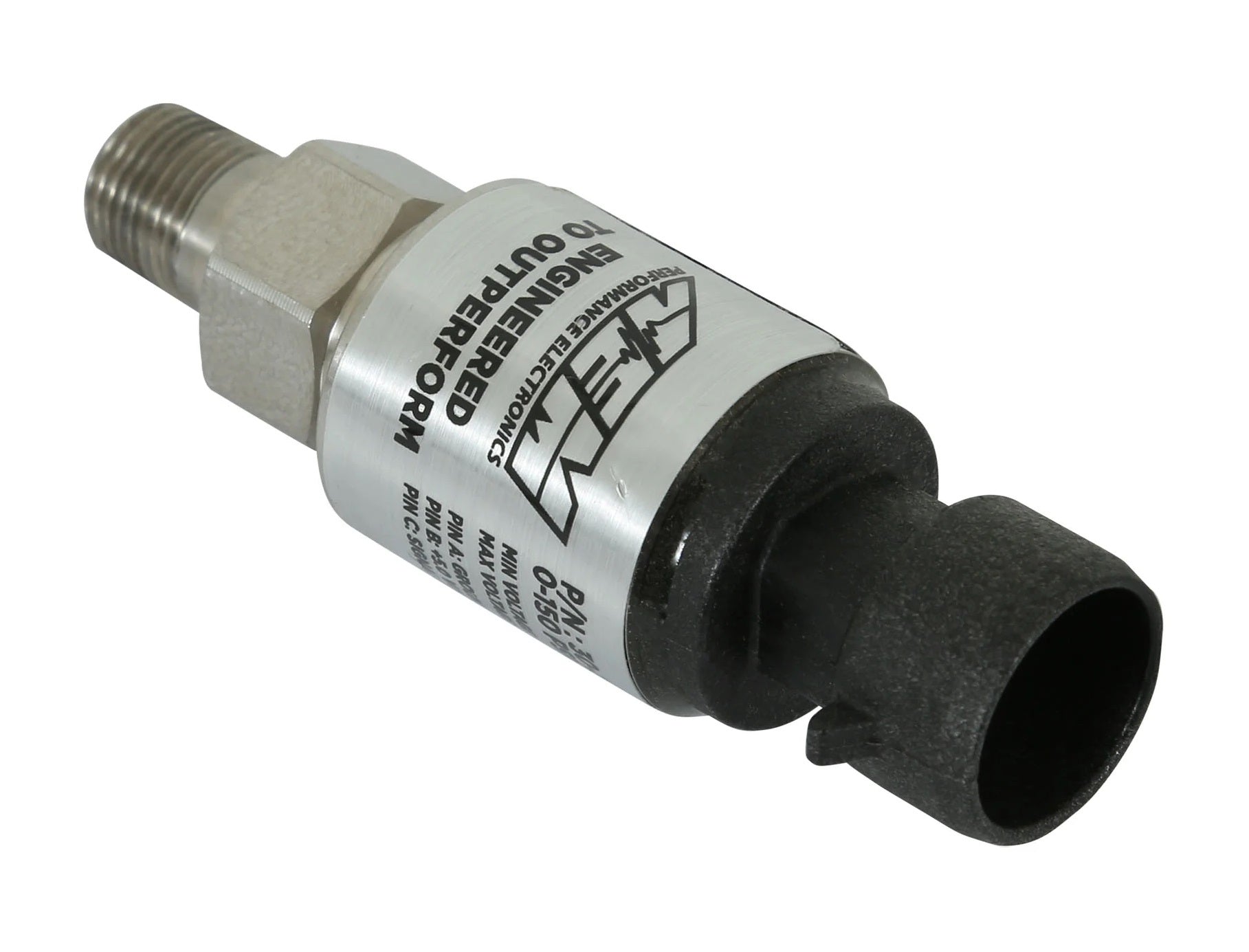

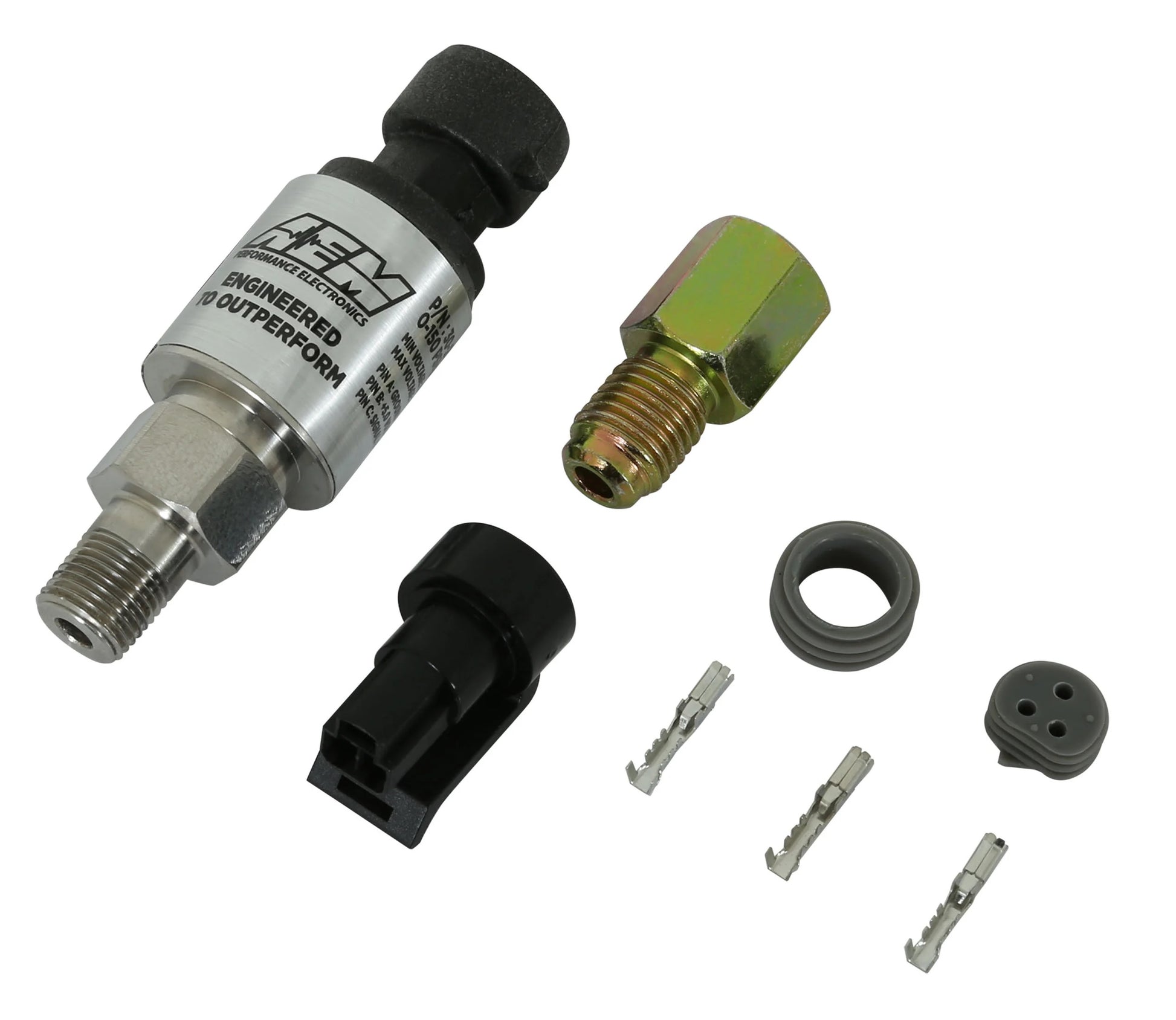

AEM offers high quality stainless steel PSIG sensors in 100, 150, 500, 1,000, and 2,000. Gauge style pressure sensors reference pressure above atmospheric pressure. When exposed to atmospheric pressure, gauge style pressure sensors will read 0 PSIG. Gauge style pressure sensors are commonly used for oil pressure, fuel pressure, brake pressure, nitrous pressure etc. Which Pressure Sensor is right for you? There are many different tools that can be used for measurement, but the degree of accuracy is dependent upon the tool. Stainless steel sensors provide more precise, calibration-grade data for ECU applications compared to older brass sensors.
Features:
- Stainless-steel sensors accurate to within 1% of full scale (pressure sensors)
- High-quality sealed sensor housings are virtually impervious to automotive fluids (360-degree welded wetted area)

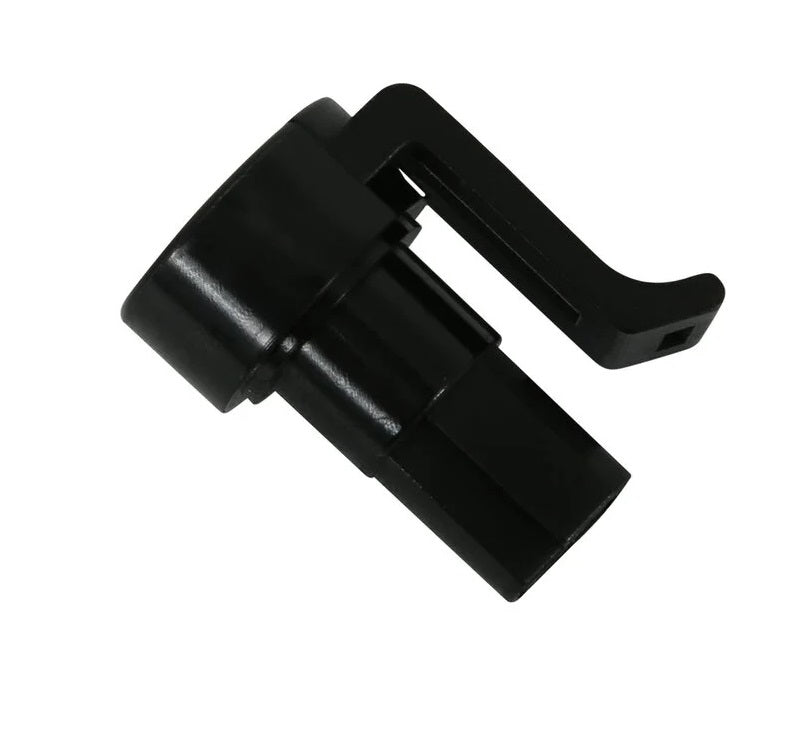

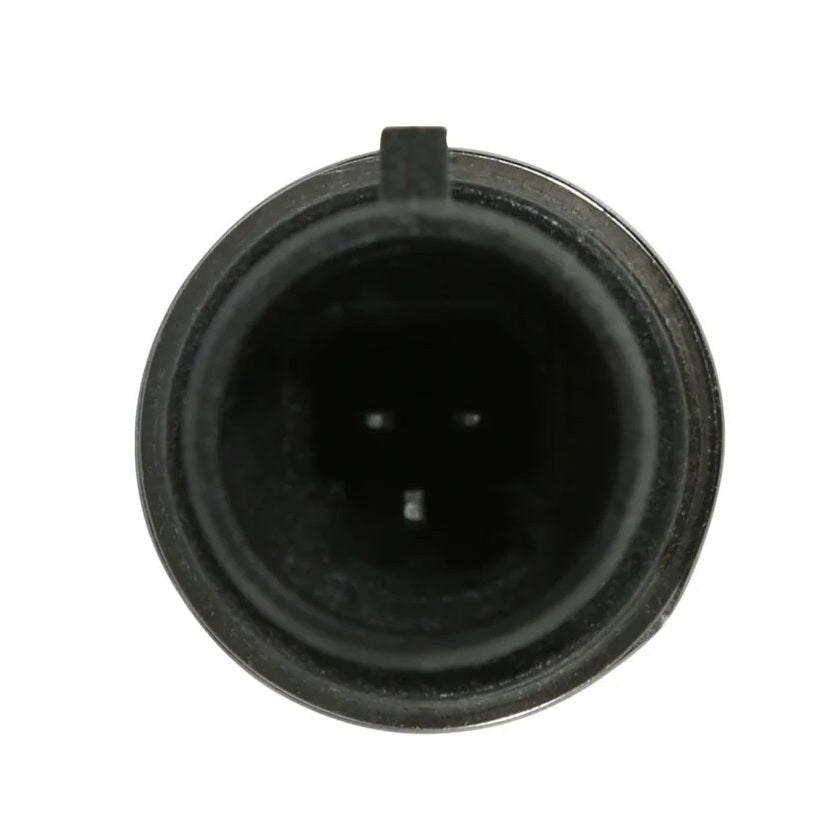

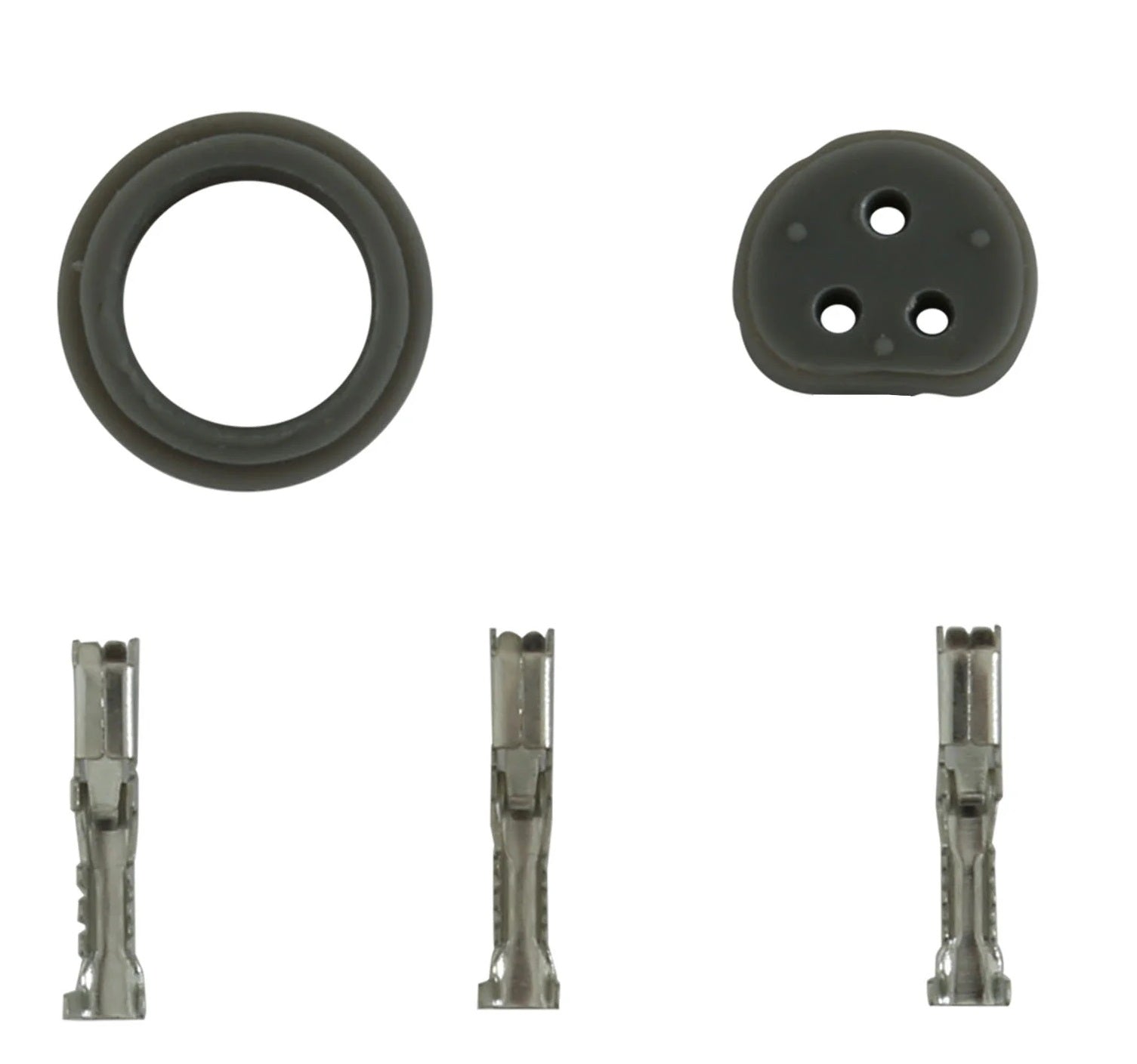

- Connector and pins included
- Analog Data Scaled in Charts

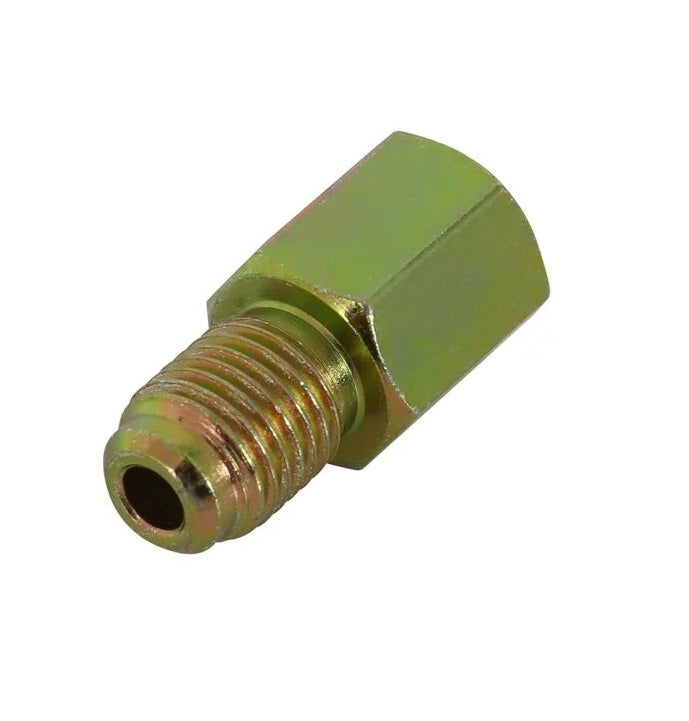

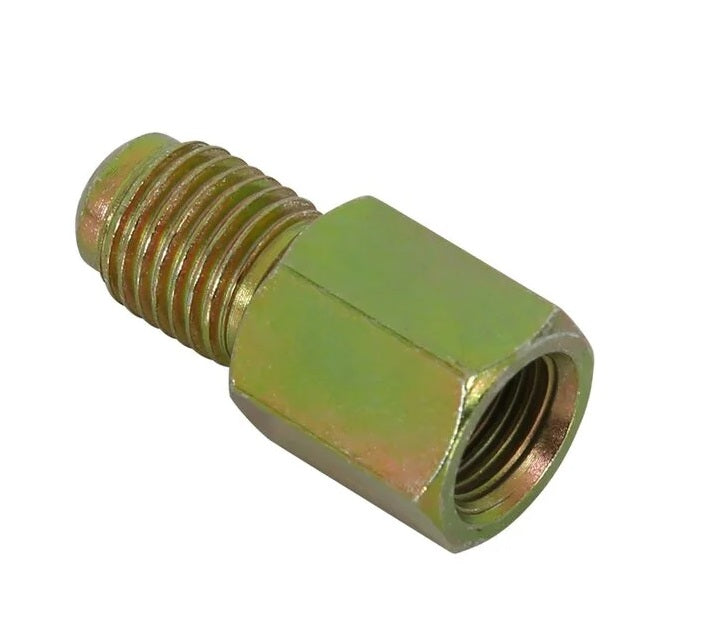

- 1/8 in. NPT Male Thread w/ -4 and 3/16 NPT Adapters
You can view and download the assembly instruction booklet here.
