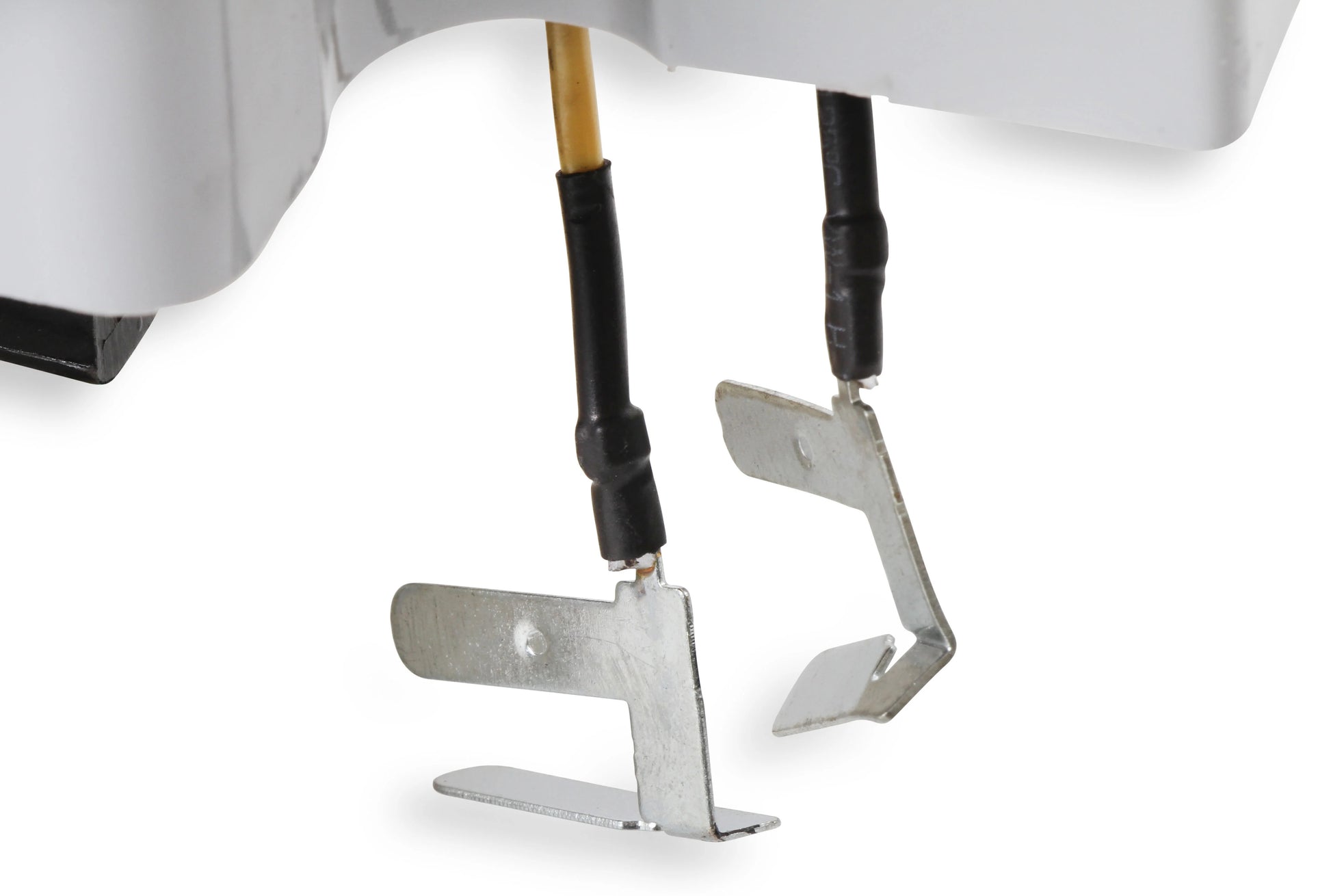

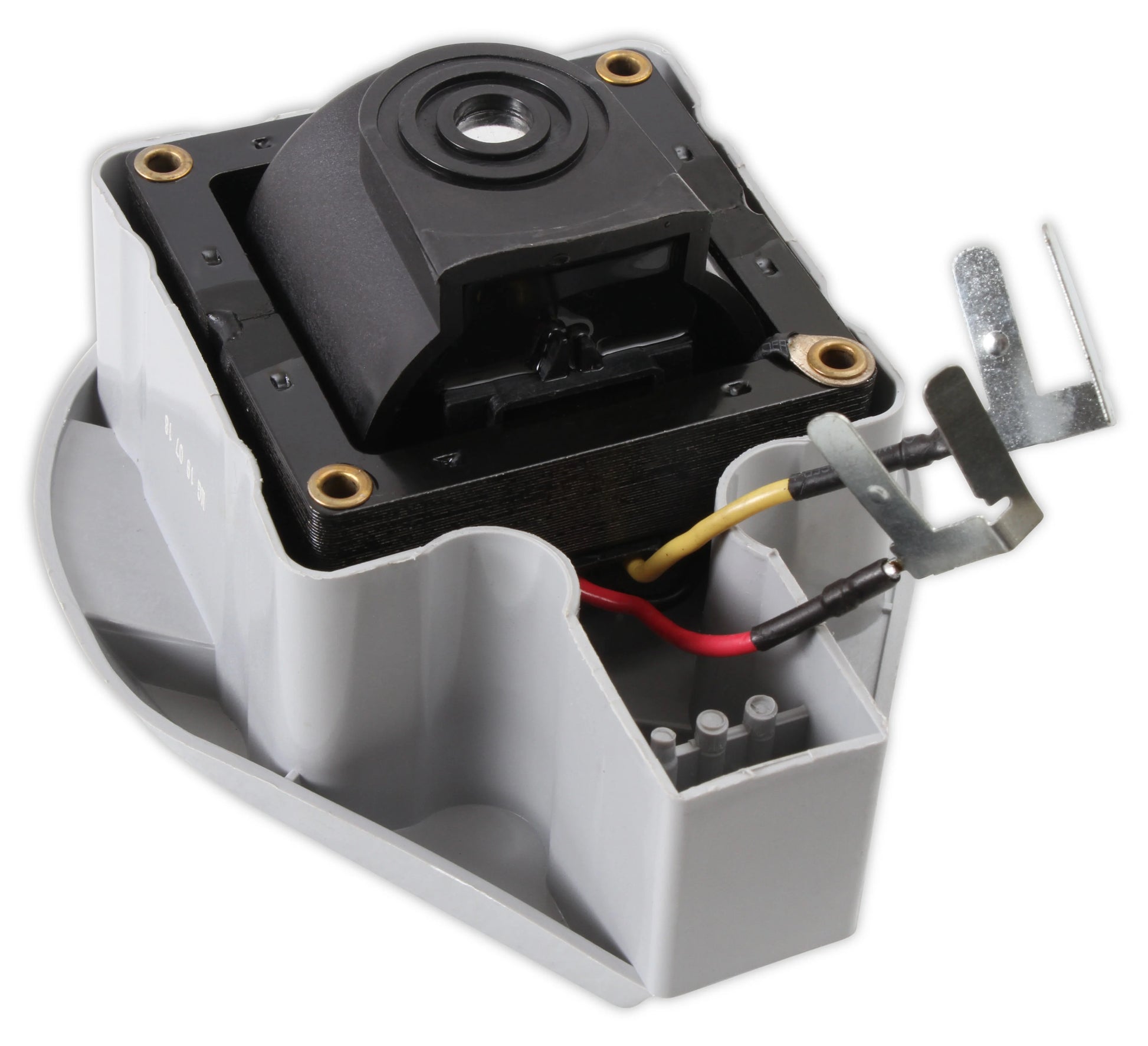

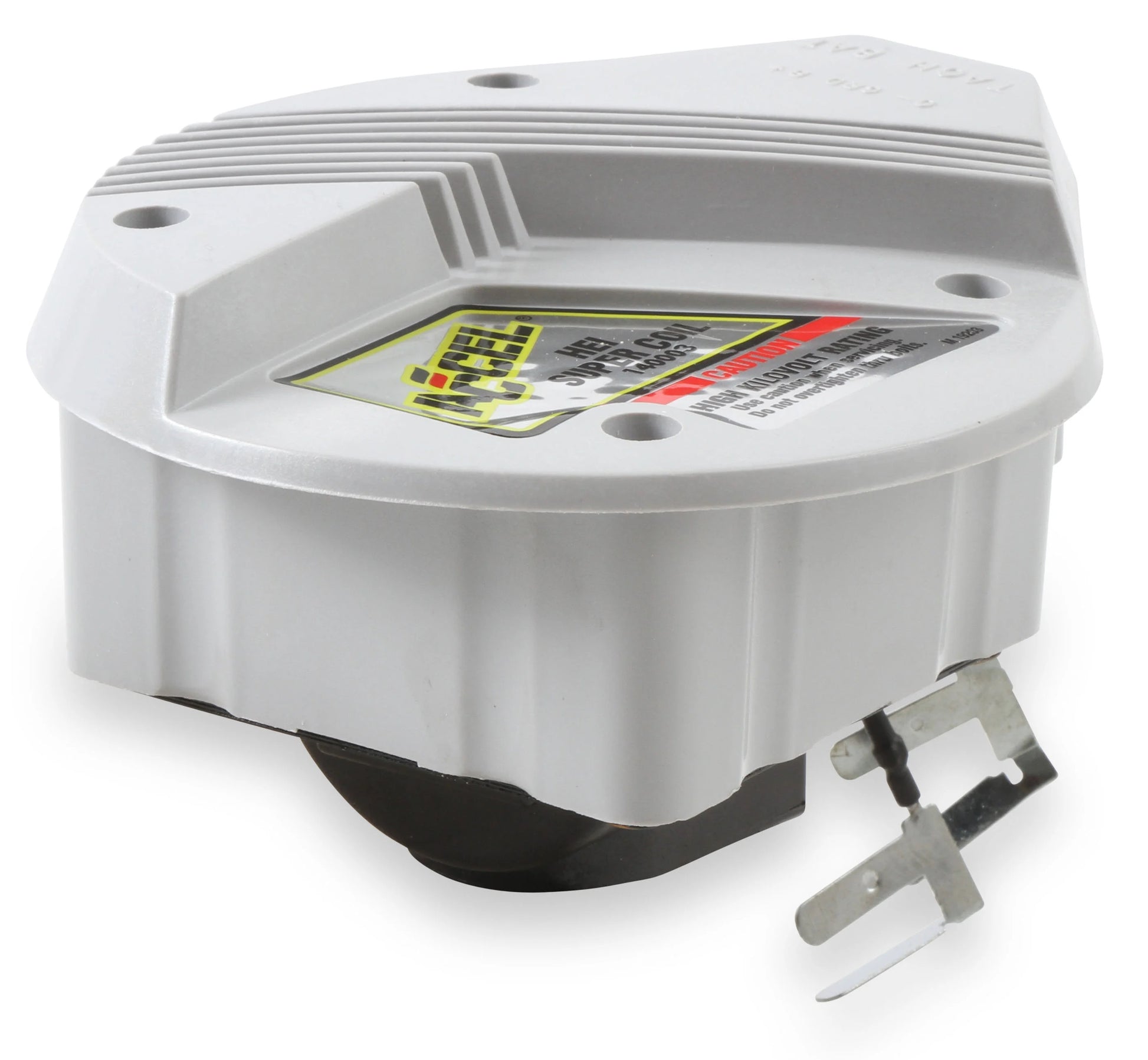

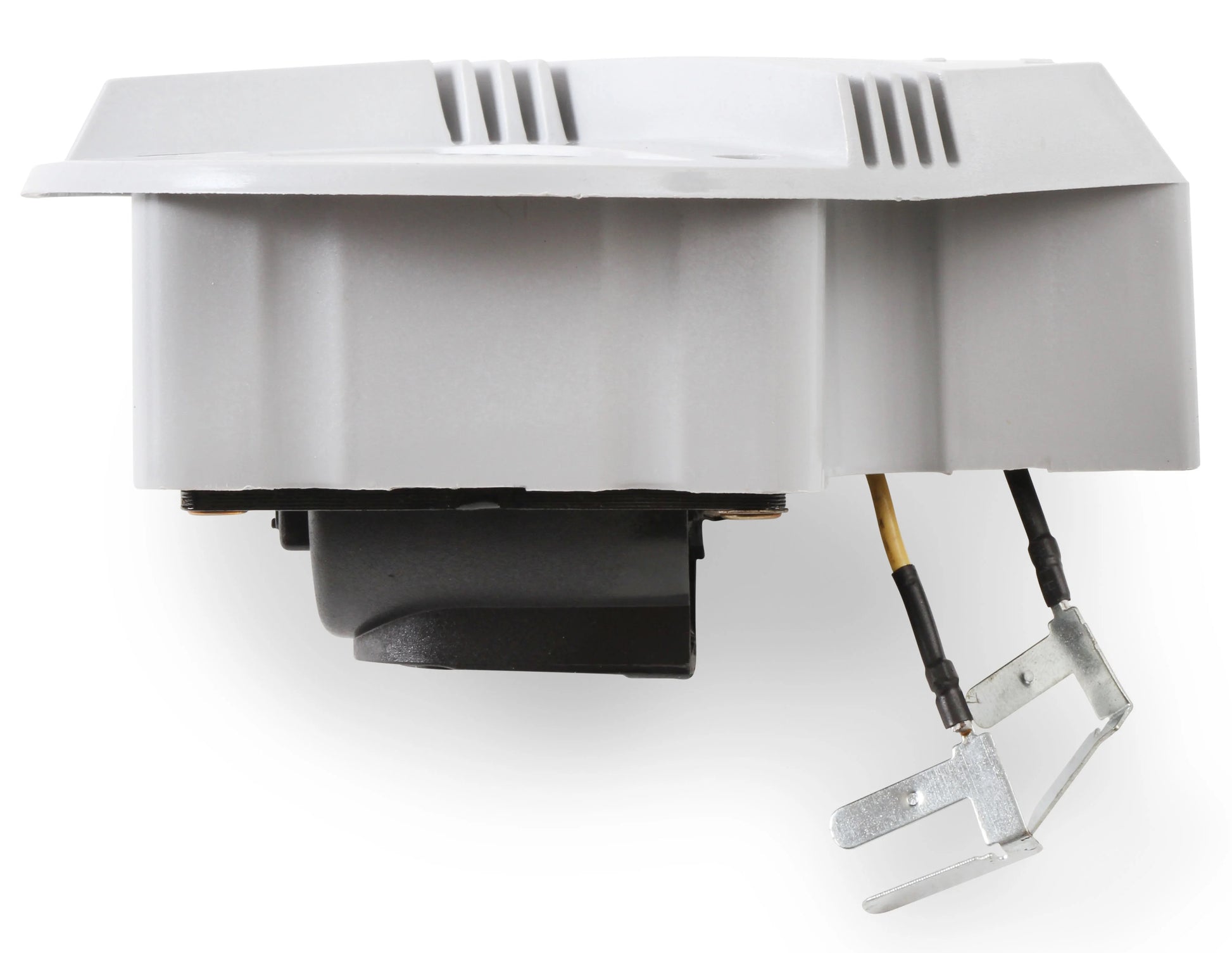

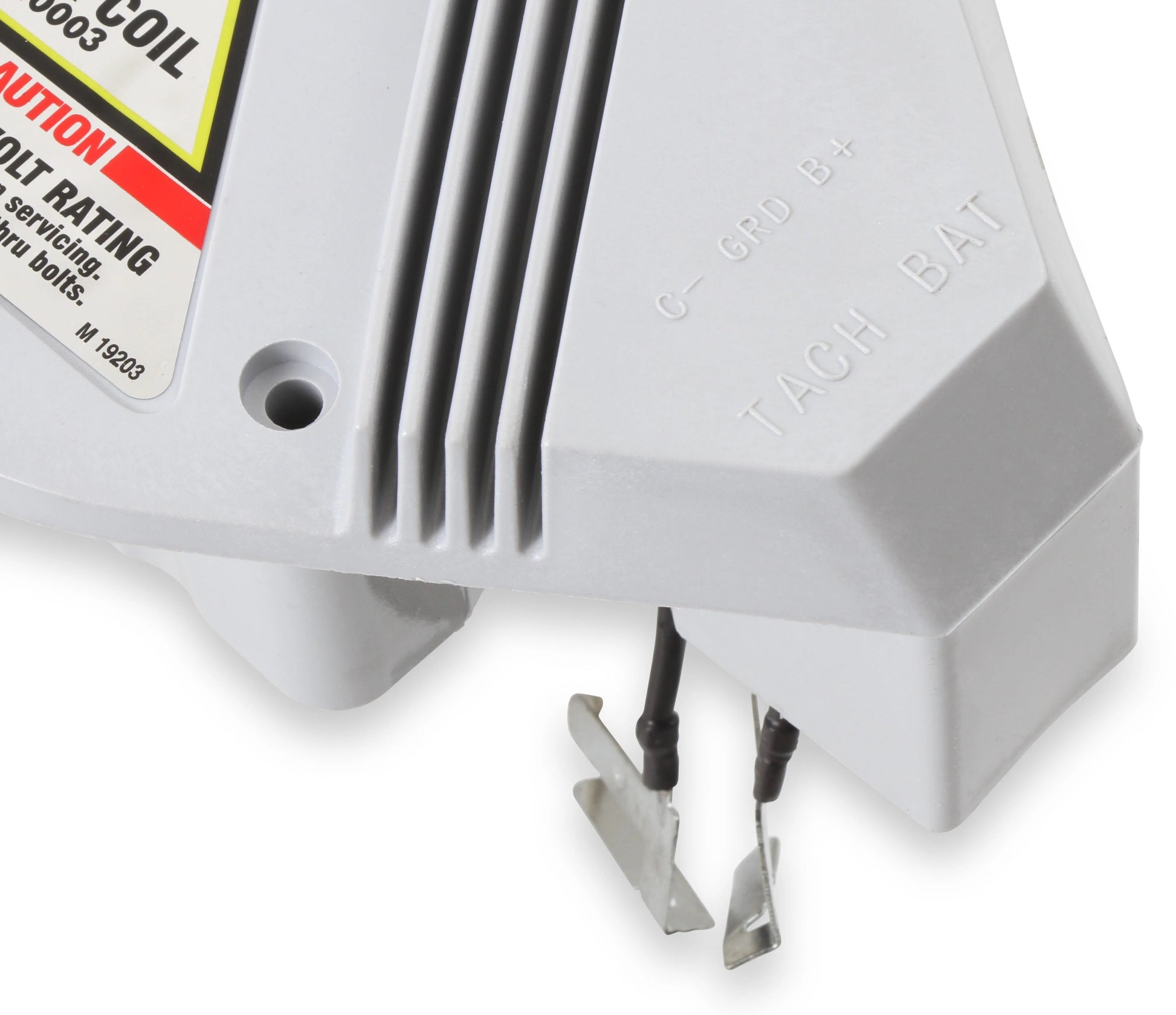

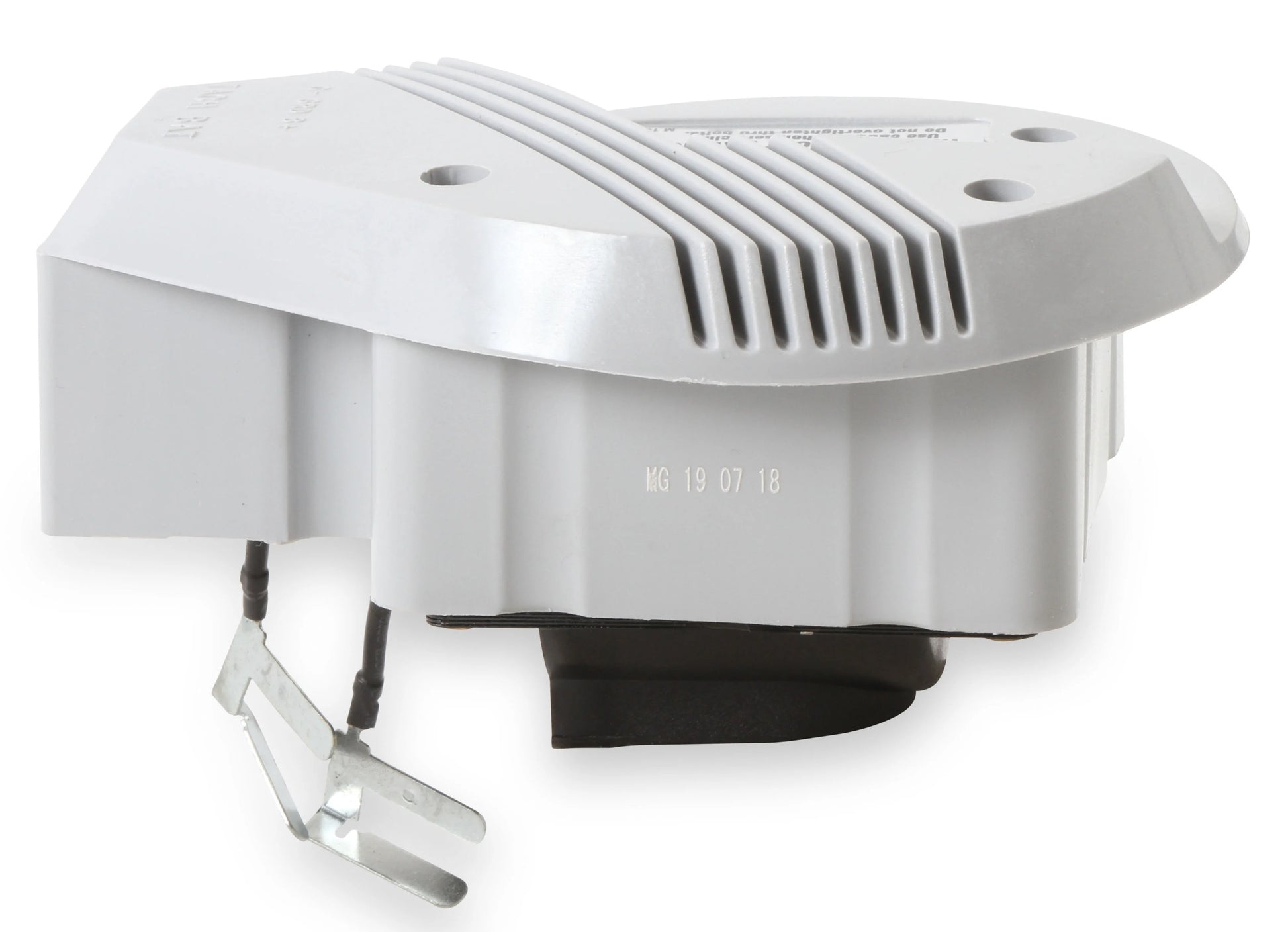

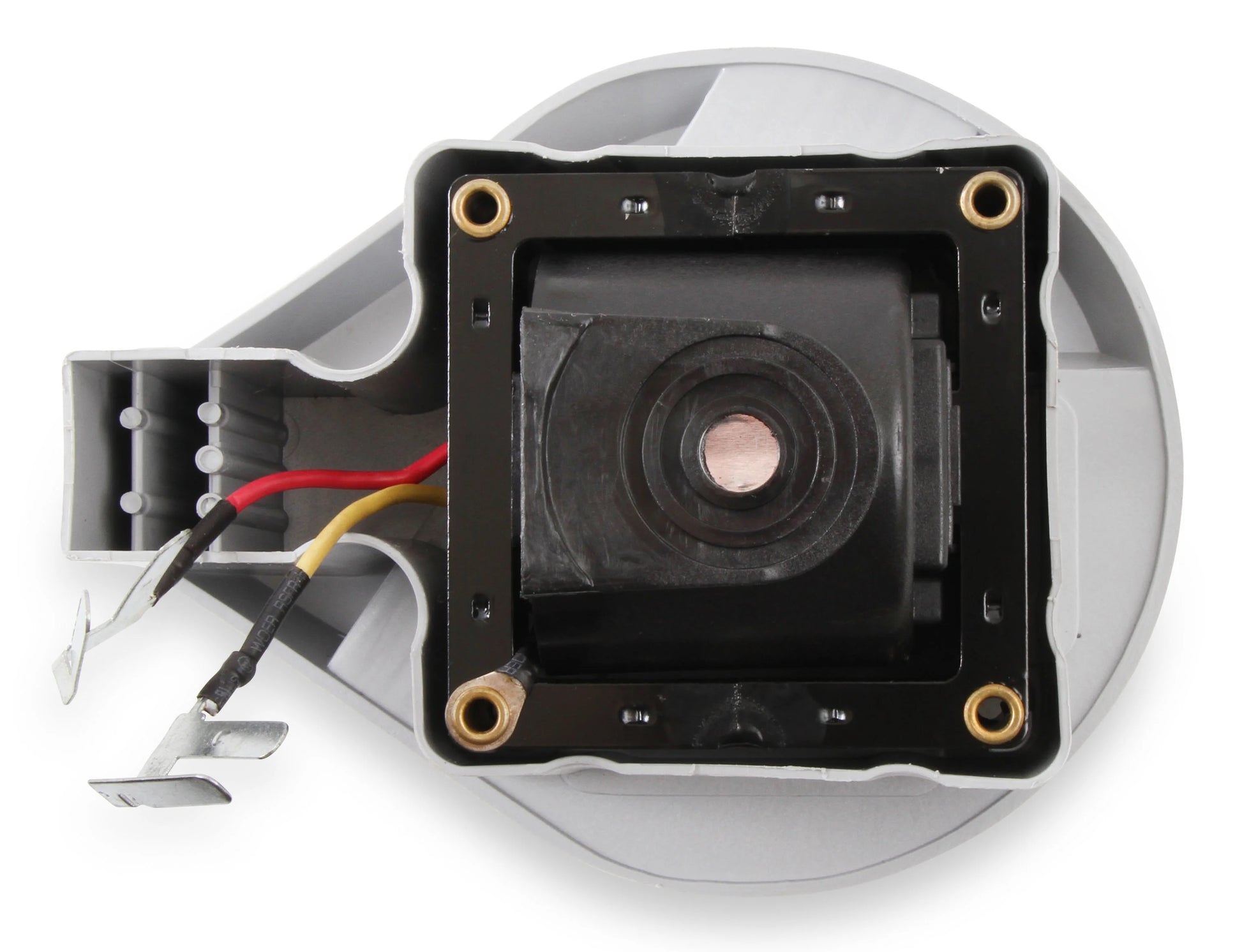

IGNITION COIL,SUPERCOIL,HEI IN-CAP 1973-1991,RED/YELLOW PRIMARY WIRE

Brand New ACCEL Ignition Coil, SuperCoil HEI in-cap 1973-1991 with Red/Yellow Primary Wire (Part #140003).

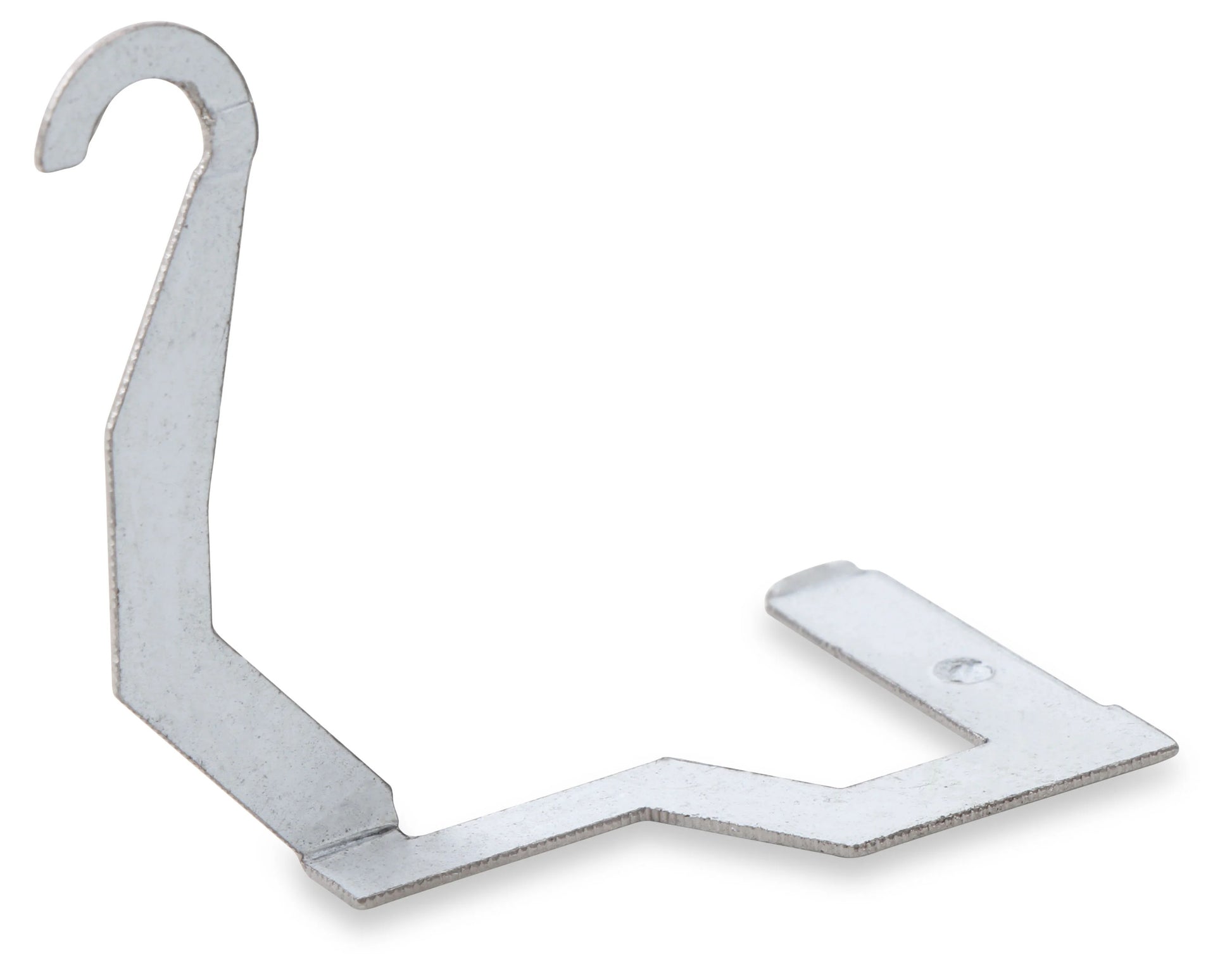

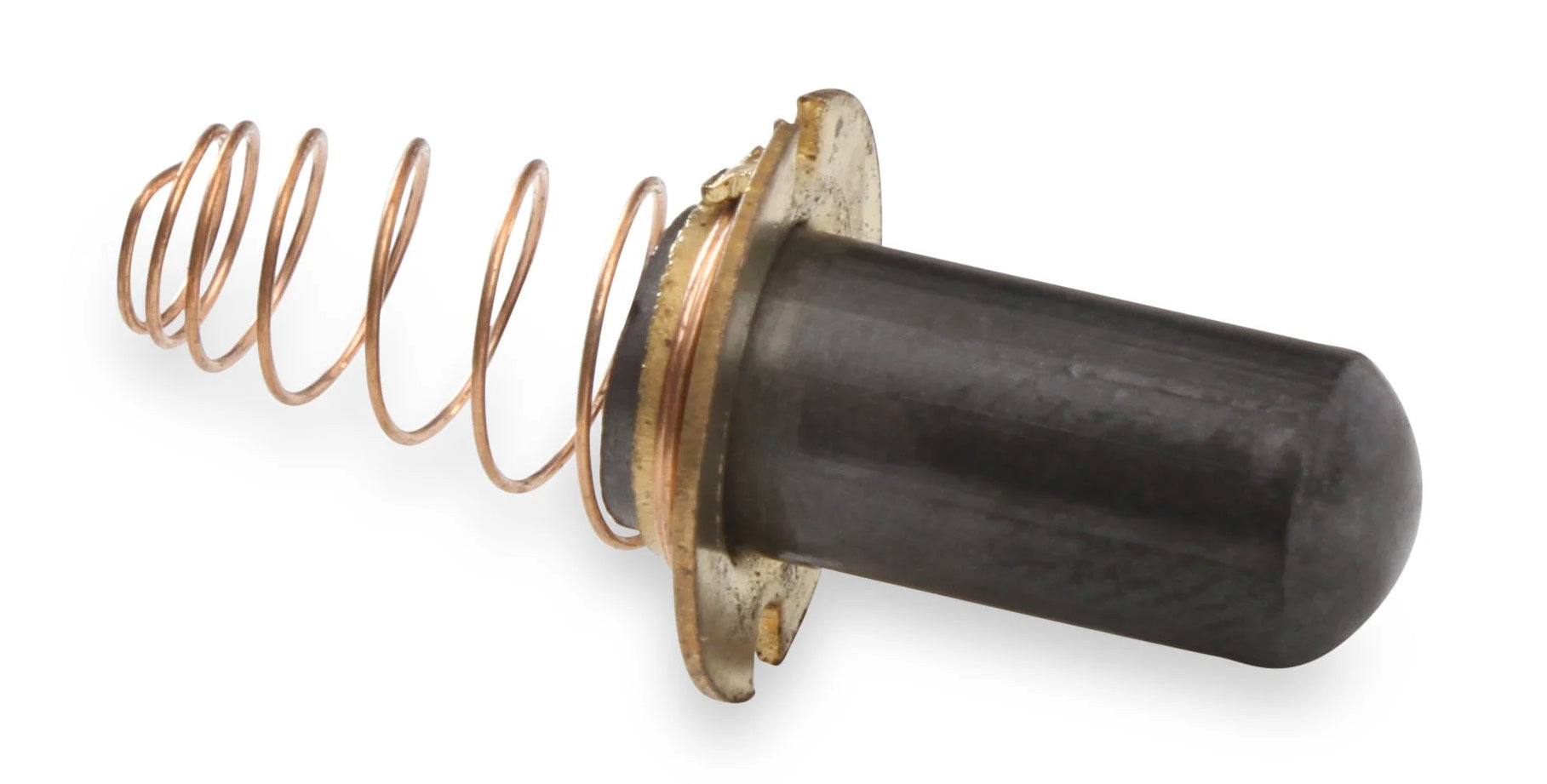

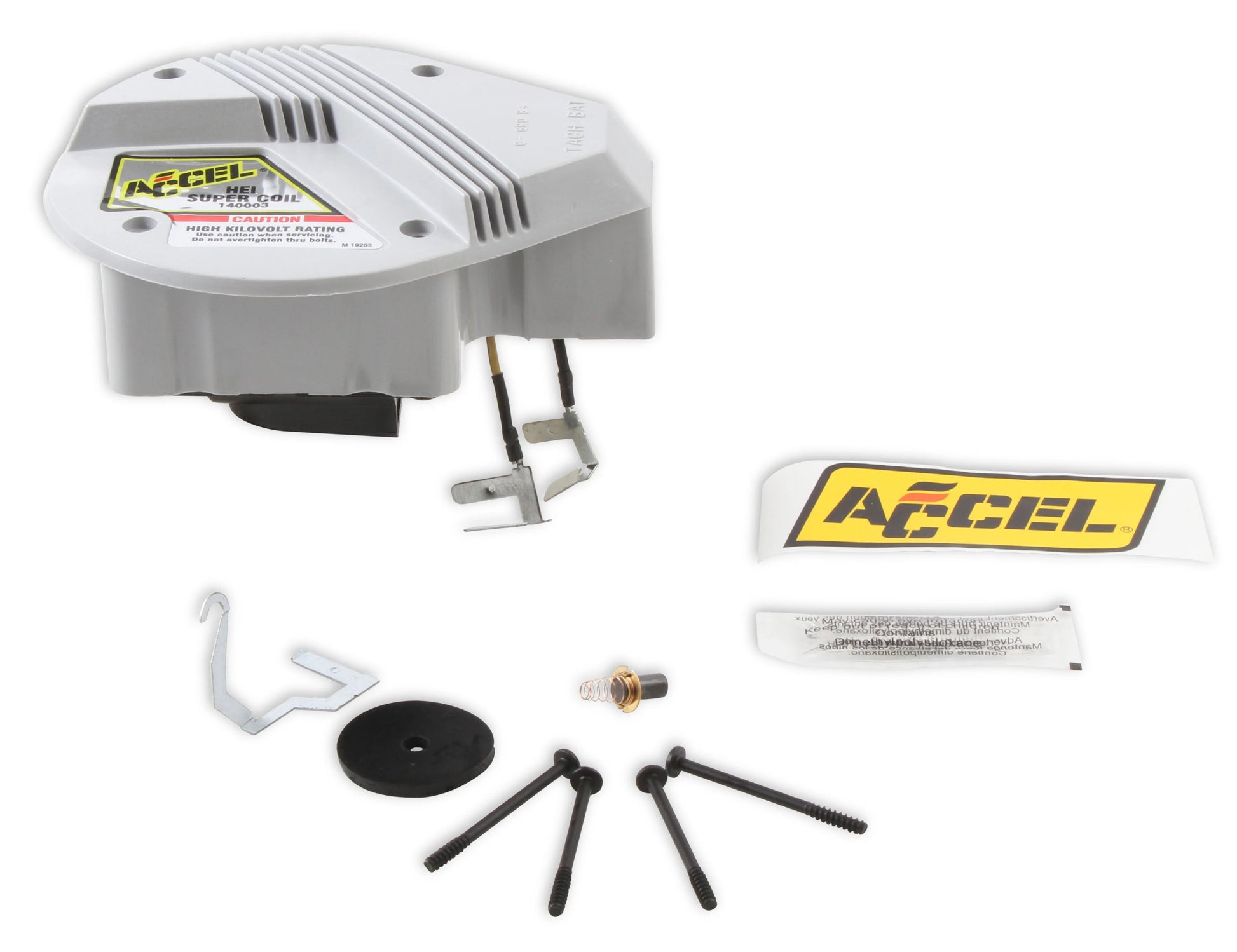

Engineered for higher energy output resulting in quicker starting, improved idle quality, crisper throttle response and more high RPM power. Compatible with both original HEI ignition systems and later model computer controlled HEI systems. No need to remove or re-time distributor. Complete with simplified ground strap, mounting screws, silicone coil gasket and carbon contact brush / spring. This ACCEL HEI in-cap has a maximum voltage of 45,000V. Typical HEI applications include Cadillac V8, Chevrolet 90 degree V6, & most V8s.

Features:

• 10-15% More Energy

• Direct Plug In Replacement Direct OE Fit

• Advanced Bobbin Technology

• Highly Specialized Silicone Magnetic Steel Cores

• Standard Motor Products SMP Dr-31

• MSD 8225

Specs:

• Application: GM

• Brand: ACCEL

• Color: Gray

• Maximum Voltage: 45,000 Volts

• Part Type: Ignition Coil

• Peak Increase in Voltage vs. OE: 18%

• Primary Resistance: 0.5 Ohms

• Secondary Resistance: 8.6 k Ohms

• Turns Ratio: 80:1


You can view and download the assembly instruction booklet here.
