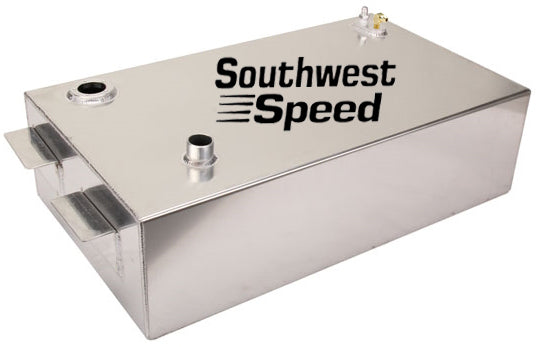

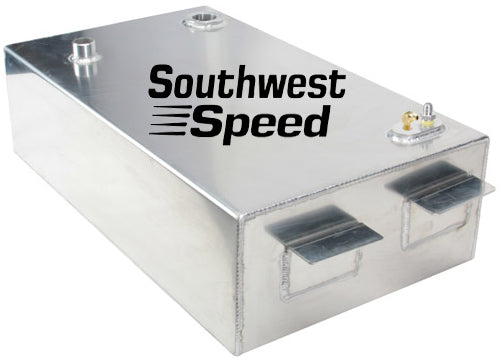

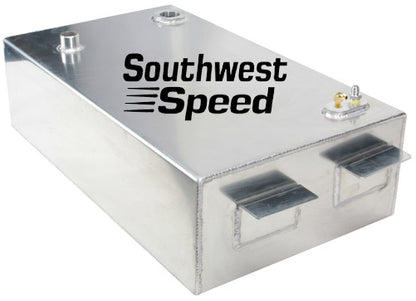

FUEL TANK,48-60 FORD TRUCK,17 GALLON,ALUMINUM

FUEL TANK,48-60 FORD TRUCK,17 GALLON,ALUMINUM

890-1019

$399.99
$399.99
This item requires an additional shipping fee of $20.00 over standard shipping.
View full details
  • BRAND NEW SOUTHWEST SPEED TIG-WELDED FABRICATED 17 GALLON ALUMINUM TOP FILL RELOCATION FUEL TANK THAT MOUNTS BEHIND THE REAR AXLE. FEATURES AN NATURAL ALUMINUM FINISH, & USES AN 1 1/2" FILLER NECK HOSE, 1/4" NPT THREADS FOR VENT HOSE, & 3/8" NPT THREADS FOR PICKUP TUBE THAT FITS 1948-1960 FORD TRUCKS.

  • THIS SOUTHWEST SPEED 17 GALLON TOP FILL RELOCATION ALUMINUM FUEL TANK IS DESIGNED TO FIT BETWEEN THE FRAME RAIL AND REARWARD OF THE AXLE ON 1948-1960 FORD PICKUP TRUCKS. BY MOVING THE TANK OUT OF THE CAB, YOU GAIN MUCH NEEDED ROOM TO ALLOW FOR FURTHER CUSTOMIZATION, WHICH ALSO INCREASES FUEL CAPACITY AND SAFETY! THE ADVANTAGE OF HAVING A TOP FILL TANK IS THAT YOU CAN FILL THE 17 GALLON TANK EASILY ON THE BED FLOOR. WHEN THE FUEL TANK IS COMPLETELY INSTALLED, THE FILLER NECK IS LOCATED 3" FROM THE LEFT OF THE BED CENTERLINE. THIS WORKS GREAT ON WOOD BED TRUCKS, BECAUSE IT PLACES THE FILLER NECK IN THE CENTER OF THE WOOD PLANK, SO NO BED STRIP MODIFICATIONS WILL BE NEEDED. ADDITIONAL PARTS WILL BE NECESSARY TO COMPLETE THE INSTALLATION. YOU WILL NEED TO ADD A GAS TANK FILLER HOSE AND GAS CAP. THE FUEL FEED LINE WILL NEED TO BE EXTENDED, ALONG WITH THE FUEL TANK SENDING UNIT WIRES. THE TIG WELDED 1 1/2" FILLER NECK WILL REQUIRE A REMOTE FILLER NECK OR FUEL FILLER DOOR IN THE BOX FLOOR. THE FRAME-MOUNTED SPARE TIRE WILL NEED TO BE RELOCATED. PROFESSIONAL INSTALLATION IS HIGHLY RECOMMENDED, INSTRUCTIONS ARE AVAILABLE IN THE LINK BELOW. THIS SOUTHWEST SPEED FUEL TANK IS IN STOCK & READY TO SHIP TODAY.

    • FEATURES:

    • RELOCATION FUEL TANK THAT IS ENGINEERED TO FIT BEHIND THE REAR AXLE
    • BAFFLED IN THE CENTER TO PREVENT FUEL FROM SLOSHING
    • TOP FILL FUEL TANK
    • 17 GALLON FUEL TANK CAPACITY
    • TIG-WELDED 5051 STRONG LIGHTWEIGHT AIRCRAFT ALUMINUM ALLOY
    • NATURAL ALUMINUM COLOR
    • 1/4" NPT THREADS FOR VENT HOSE
    • 3/8" NPT THREADS FOR PICKUP TUBE
    • TIG WELDED HEAVY-DUTY 1 1/2" FILLER NECK
    • MEASURES 32 1/8" LONG X 16 3/8" WIDE X 8" TALL. THE ACTUAL TANK IS 28 1/8" LONG, THE FRAME RAIL MOUNTING TABS ARE 2" WIDE ON EACH SIDE OF THE TANK. THE TOTAL LENGTH OF THIS TANK IS 32 1/8" INCLUDING THE MOUNTING TABS.

    FUEL TANK SPECIFICATIONS:

    • FUEL TANK STYLE: TOP FILL
    • OVERALL LENGTH: 32 1/8"
    • OVERALL WIDTH: 16 3/8"
    • OVERALL HEIGHT: 8"
    • VENT HOSE FITTING: 1/4" NPT THREADS
    • FUEL PICKUP TUBE FITTING: 3/8" NPT THREADS
    • FILLER NECK: 1 1/2"
    • MATERIAL TYPE: TIG-WELDED 5051 STRONG LIGHTWEIGHT AIRCRAFT ALUMINUM ALLOY
    • SENDING UNIT INCLUDED: NO
    • FINISH: NATURAL ALUMINUM
    • BAFFLED: YES
    • CAPACITY: 17 GALLONS

    APPLICATIONS:

    • FORD:
      • 1948-1960 F SERIES PICKUP
      • 1948-1952 F1 PICKUP
      • 1948-1952 F2 PICKUP
      • 1953-1960 F100 PICKUP
      • 1953-1960 F250 PICKUP

    YOU CAN VIEW AND DOWNLOAD THE COMPLETE INSTRUCTION BOOKLET FOR THE FUEL TANK HERE.
