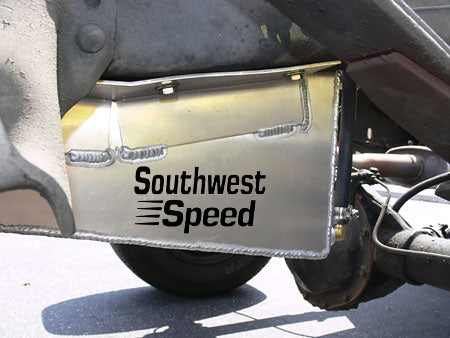

FUEL TANK,73-87 GM TRUCK,BEHIND REAR AXLE,19 GALLON,ALUMINUM

FEATURES:

• RELOCATION FUEL TANK THAT IS ENGINEERED TO FIT BEHIND THE REAR AXLE ON 4X2 MODELS

• 19 GALLON FUEL TANK CAPACITY

• TIG-WELDED 5051 STRONG LIGHTWEIGHT AIRCRAFT ALUMINUM ALLOY

• NATURAL ALUMINUM COLOR

• 1/4" NPT THREADS FOR VENT HOSE

• 3/8" NPT THREADS FOR PICKUP TUBE

• TIG WELDED HEAVY-DUTY 1 1/2" FILLER NECK

• INCLUDES TWO FUEL TANK MOUNTING STRAP & HARDWARE

• MEASURES 19 3/4" FRONT-TO-REAR X 30 3/4" WIDE X 10 1/4" TALL. THE ACTUAL TANK IS 25 3/4" LONG, THE FRAME RAIL MOUNTING TABS ARE 2 1/2" ON EACH SIDE OF THE TANK. THE TOTAL WIDTH OF THIS TANK IS 30 3/4" INCLUDING THE MOUNTING TABS.

FUEL TANK SPECIFICATIONS:

• FUEL TANK STYLE: TOP FILL

• FRONT-TO-REAR: 19 3/4"

• OVERALL WIDTH: 30 3/4"

• OVERALL HEIGHT: 10 1/4"

• VENT HOSE FITTING: 1/4" NPT THREADS

• FUEL PICKUP TUBE FITTING: 3/8" NPT THREADS

• FILLER NECK: 1 1/2"

• MATERIAL TYPE: TIG-WELDED 5051 STRONG LIGHTWEIGHT AIRCRAFT ALUMINUM ALLOY

• SENDING UNIT INCLUDED: NO

• FINISH: NATURAL ALUMINUM

• BAFFLED: NO

• CAPACITY: 19 GALLONS

APPLICATIONS:

• CHEVROLET:
  • 1973-1987 C10 PICKUP

  • 1973-1987 C15 PICKUP

  • 1973-1987 C20 PICKUP

  • 1973-1987 C25 PICKUP
• GMC:
• 1973-1987 C15/C1500 PICKUP

• 1973-1987 C25/C2500 PICKUP

YOU CAN VIEW AND DOWNLOAD THE COMPLETE INSTRUCTION BOOKLET FOR THE FUEL TANK HERE.
