HYDR. BEARING,STOCK,W/MASTER,LINE,&BLEED

HYDR. BEARING,STOCK,W/MASTER,LINE,&BLEED

SKU:650-6202

Regular price $239.99
Regular price Sale price $239.99
View full details

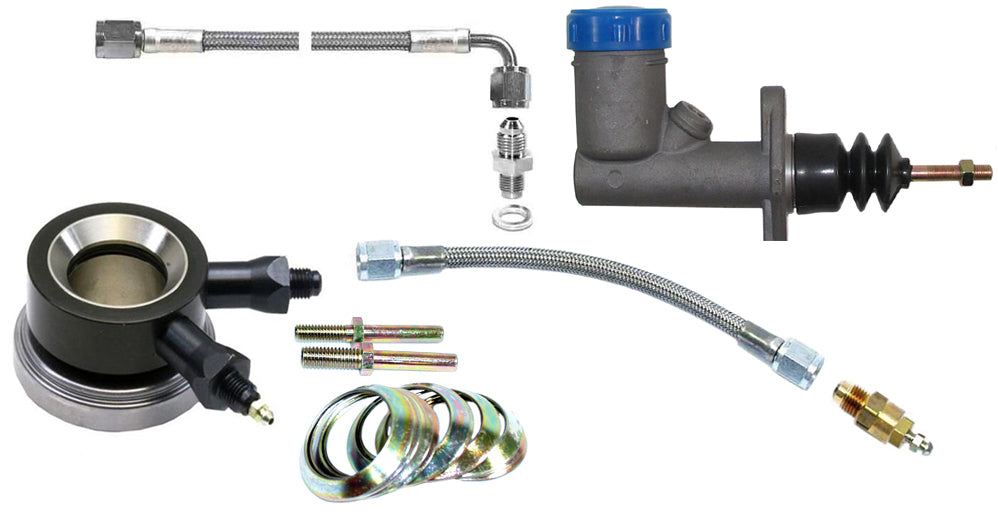

  • HYDRAULIC THROWOUT BEARING & MASTER CYLINDER KIT (FOR STOCK CLUTCHES) THAT INCLUDES THE STEEL BRAIDED LINE TO CONNECT THEM & A REMOTE BLEEDER LINE
  • HYDRAULIC THROWOUT BEARING:
    -WORKS WITH SAGINAW, MUNCIE, GM T-10, & JERICO TRANSMISSIONS, AS WELL AS ANY TRANSMISSION THAT HAS A BEARING RETAINER COLLAR WITH AN OUTSIDE DIAMETER OF 1.375" OR LESS, AS THE INSIDE DIAMETER OF THIS THROWOUT BEARING IS 1.380"
    -WILL NOT FIT T-5 OR NON-GM T-10 TRANSMISSIONS
    -FITS STOCK-STYLE, 10.5" CLUTCHES
    -INCLUDES A SET OF CONICAL SHIMS TO PROPERLY FIT THE BEARING
    -ALSO INCLUDES 2 DIFFERENT INSTALLATION STUDS, ONE 5/16"-18 AND ONE 3/8"-16, WHICH WILL REPLACE ONE OF THE BEARING RETAINER BOLTS IN THE TRANSMISSION TO HOLD THE BEARING IN PLACE
  • REMOTE BLEEDER KIT:
    -ALLOWS YOU TO BLEED THE BEARING FROM OUTSIDE THE BELLHOUSING
    -1/8" NPT MALE TO 1/8" NPT FEMALE
    -15" LONG
  • STEEL BRAIDED LINE KIT:
    -36" LONG, -4AN STEEL BRAIDED HOSE
    -1/8" NPT TO -4AN FITTING
    -90 DEGREE, 3/16" LINE TO -4AN STRAIGHT
    -MAKES MASTER CYLINDER TO THROWOUT BEARING CONNECTION A SNAP
  • CLUTCH MASTER CYLINDER:
    -3/4" BORE, GIRLING-TYPE MASTER CYLINDER
    -LIGHTWEIGHT ALUMINUM CONSTRUCTION
    -3/8"-24 BULB FLARE FEMALE THREADED OUTLET
    -THE FITTING THAT GOES IN THIS OUTLET NEEDS TO BE A BULB FLARE FITTING OR AT LEAST HAVE A WASHER SO THAT THE CONNECTION IS SEALED. THIS FITTING IS INCLUDED WITH THIS KIT
    -FITS ALL POPULAR RACING PEDALS
  • MASTER CYLINDER TO LINE FITTING:
    -BULB FLARE FOR A SEALED CONNECTION
    -3/8"-24 MALE TO 3/16" LINE FEMALE
