HYDR BEARING,RACING,W/MASTER,LINE,&BLEED

HYDR BEARING,RACING,W/MASTER,LINE,&BLEED

650-6002

$199.99
$199.99
View full details

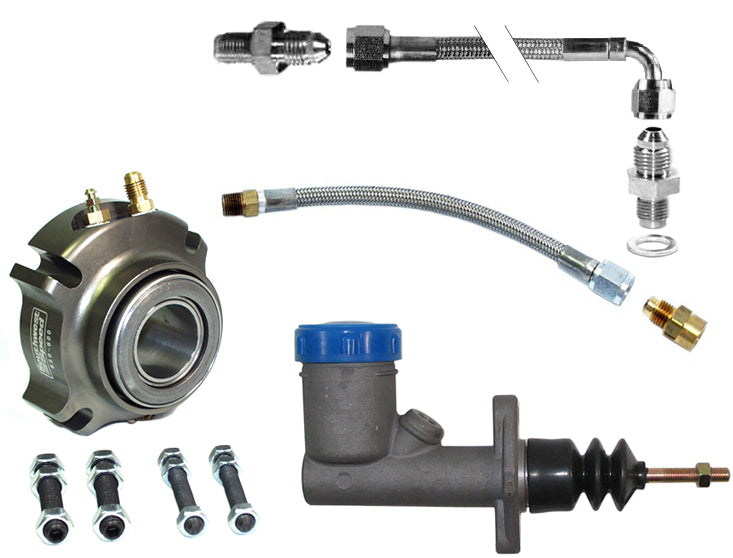

  • HYDRAULIC THROWOUT BEARING & MASTER CYLINDER KIT (FOR RACING MINI-CLUTCHES) THAT INCLUDES THE STEEL BRAIDED LINE TO CONNECT THEM & A REMOTE BLEEDER LINE
  • HYDRAULIC THROWOUT BEARING:
    -COMPATIBLE WITH MOST REDUCED DIAMETER RACING MINI-CLUTCHES, INCLUDING, BUT NOT LIMITED TO, RAM, QUARTERMASTER, & TILTON
    -WILL NOT WORK WITH STOCK DIAMETER CLUTCHES
    -WORKS WITH SAGINAW, MUNCIE, GM T-10, & JERICO TRANSMISSIONS, AS WELL AS ANY TRANSMISSION THAT HAS A BEARING RETAINER COLLAR WITH AN OUTSIDE DIAMETER OF 1.395" OR LESS, AS THE INSIDE DIAMETER OF THIS THROWOUT BEARING IS 1.400"
    -WILL NOT FIT T-5 OR NON-GM T-10 TRANSMISSIONS
    -LIGHTWEIGHT ALUMINUM CONSTRUCTION
    -INSTALLS BY SIMPLY REMOVING 2 OF THE BEARING RETAINER BOLTS& REPLACING THEM WITH THE STUDS, WHICH ARE INCLUDED
    -INCLUDES 2 SETS OF STUDS IN 2 DIFFERENT SIZES
  • REMOTE BLEEDER KIT:
    -ALLOWS YOU TO BLEED THE BEARING FROM OUTSIDE THE BELLHOUSING
    -1/8" NPT MALE TO 1/8" NPT FEMALE
    -15" LONG
  • STEEL BRAIDED LINE KIT:
    -36" LONG, -4AN STEEL BRAIDED HOSE
    -1/8" NPT TO -4AN FITTING
    -90 DEGREE, 3/16" LINE TO -4AN STRAIGHT
    -MAKES MASTER CYLINDER TO THROWOUT BEARING CONNECTION A SNAP
  • CLUTCH MASTER CYLINDER:
    -3/4" BORE, GIRLING-TYPE MASTER CYLINDER
    -LIGHTWEIGHT ALUMINUM CONSTRUCTION
    -3/8"-24 BULB FLARE FEMALE THREADED OUTLET
    -THE FITTING THAT GOES IN THIS OUTLET NEEDS TO BE A BULB FLARE FITTING OR AT LEAST HAVE A WASHER SO THAT THE CONNECTION IS SEALED. THIS FITTING IS INCLUDED WITH THIS KIT
    -FITS ALL POPULAR RACING PEDALS
  • MASTER CYLINDER TO LINE FITTING:
    -BULB FLARE FOR A SEALED CONNECTION
    -3/8"-24 MALE TO 3/16" LINE FEMALE
