CLUTCH LINKAGE,FRAME BRACKET,55 CHEVY

CLUTCH LINKAGE,FRAME BRACKET,55 CHEVY

650-4606

$24.99
$24.99

Yes, we have this item in stock and ready to ship immediately!
View full details

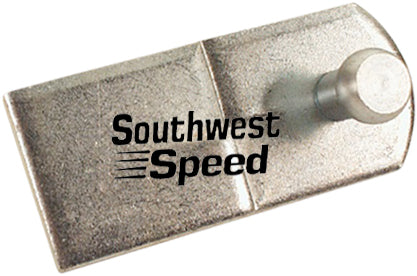

  • BRAND NEW SOUTHWEST SPEED FACTORY REPLACEMENT CLUTCH FRAME BRACKET THAT FITS ALL 1955 CHEVY PASSENGER CARS WITH MANUAL TRANSMISSIONS.

  • THIS SOUTHWEST SPEED CLUTCH FRAME BRACKET IS A REPRODUCTION OF THE ORIGINAL CROSS SHAFT FRAME BRACKET USED ON 1955 CHEVY PASSENGER CARS WITH MANUAL TRANSMISSIONS. ONE END OF THIS FRAME BRACKET WELDS TO THE FRAME & THE OTHER END ATTACHES TO THE 5/8" PIVOT STUD ON THE CROSS SHAFT OR KNOWN AS "Z"BAR. THIS FRAME BRACKET DOES NOT HAVE THE GM CASTING NUMBER BUT WILL LOOK, FIT, AND PERFORM JUST LIKE ORIGINAL. IF YOU ARE DOING A RESTORATION OF A 1955 CLASSIC CHEVY OR JUST WANT THE CORRECT CLUTCH FRAME BRACKET TO FINISH THAT ROD PROJECT, THIS IS THE PERFECT PART.

    • FEATURES:

    • INCLUDES THE 5/8" DIAMETER PIVOT STUD
    • FACTORY REPRODUCTION
    • LENGTH: 3 1/2"
    • WIDTH: 1 1/2"
    • ONE END WELDS TO THE FRAME & THE OTHER END CONNECTS TO THE CLUTCH CROSS SHAFT "Z" BAR

    APPLICATIONS:

    • 1955 CHEVY BEL AIR
    • 1955 CHEVY 150
    • 1955 CHEVY 210
    • 1955 CHEVY NOMAD
    • 1955 CHEVY SEDAN DELIVERY

    YOU CAN VIEW AND DOWNLOAD THE COMPLETE 1955 CHEVY CLUTCH LINKAGE ADJUSTMENT INSTRUCTIONS WITH DETAILED PARTS DIAGRAM HERE.
