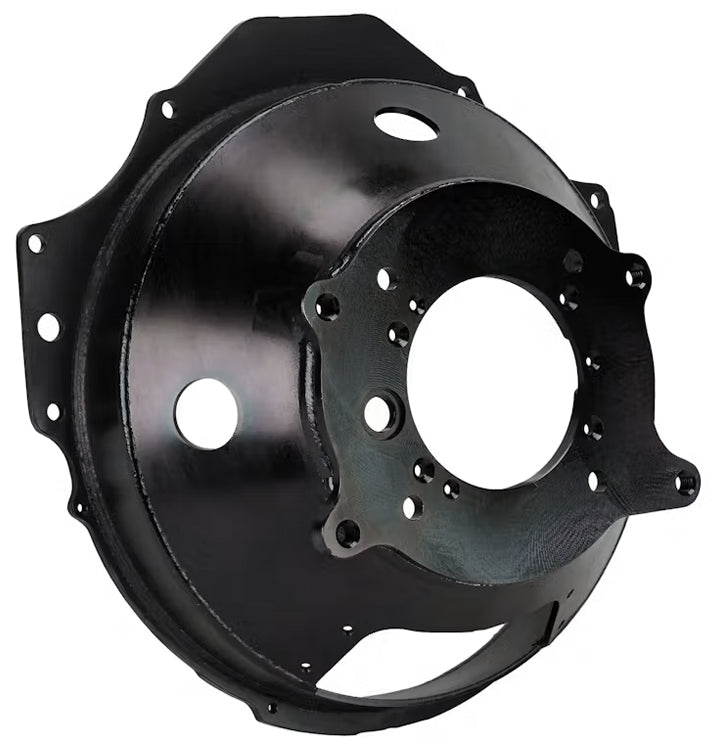

BELLHOUSING,CHEVY,STEEL,FAB,360 DEGREE,HYDRAULIC,10 1/2"

Brand New Southwest Speed Bellhousing, Small Block Chevy/Big Block Chevy (Part #650-3999).

We designed this replacement steel bellhousing for Chevy enthusiasts running small or big block engines backed by a manual transmission. Includes Small Block Chevy and Big Block Chevy engine bolt pattern. GM transmission bolt pattern fits Muncie, Saginaw, and Non-World Class T5 transmissions. Laser-Cut, CNC-finished flange for perfect fit. The bottom 6.3" opening with removable cover allows for easy inspection of hydraulic throwout bearing and clutch. Includes inspection cover, dust cover, and starter hole cover.

Features:

• Chevy engine bolt patterns (SBC/BBC)
• Laser-Cut, CNC-finished flange for a perfect fit
• Bolt Pattern for Muncie/Saginaw transmissions as well as early Chevy-Pattern T5 (Non-World Class)
• Machined for pivot ball to accommodate clutch fork and pivot stud if desired
• Provision for a clutch fork would need to be cut by end-user
• Includes two 1-inch holes for hydraulic throwout bearing lines (one on top, one on driver's side)
• The bottom 6.3" opening with removable cover allows for easy inspection of hydraulic throwout bearing and clutch
• Must be used with a 153 tooth or smaller flywheel
• Features a durable black zinc plated finish

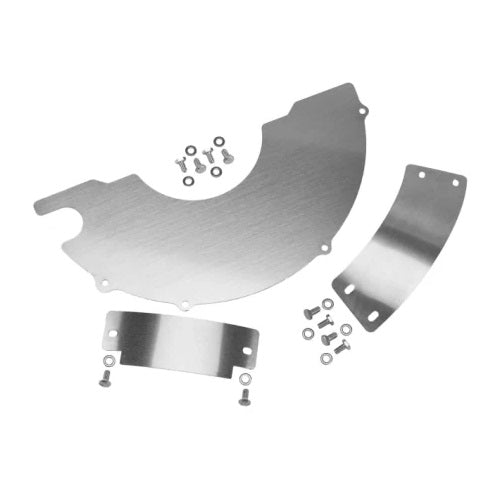

• Includes Inspection Cover, Dust Cover, and Starter Hole Cover

Specs:

• Clutch Diameter: 10.5" max
• Clutch Operation: Mechanical or Hydraulic
• Engine: Chevrolet Small Block | GM Big Block
• Flywheel: 153 Tooth
• Material: Steel
• Trans Bore: 4.686"
• Transmission: Saginaw | Muncie | Chevy Non-World Class T5 GM
• Transmission Type: Manual
• Weight (lb): 25
