BRINN TRANSMISSION,PRO SERIES 2.0, BRINN

BRINN TRANSMISSION,PRO SERIES 2.0, BRINN

650-104

$2,999.99
$2,999.99

Yes, we have this item in stock and ready to ship immediately!
View full details
  • BRINN PRO SERIES 2.0 TRANSMISSION WITH A LIGHTWEIGHT MAGNESIUM CASE
  • USES #499-810 REVERSE MOUNTED STARTER
  • FEATURES THE LOWEST ROTATING WEIGHT OF ANY TRANSMISSION, JUST 11 LBS. EVEN BETTER, THAT WEIGHT IS CONCENTRATED IN AN OVERALL DIAMETER OF LESS THAN 2 3/4", WHICH REDUCES INERTIA. THE DIAMETER OF A WEIGHT IS MUCH MORE CRITICAL TO OVERCOMING INERTIA THAN THE TOTAL WEIGHT ITSELF. EFFECTIVELY, THAT MEANS THAT YOU CAN ACCELERATE & DECELERATE QUICKER
  • IN HIGH GEAR, THE ONLY ROTATING COMPONENTS ARE THE INPUT & OUTPUT SHAFTS, THE DIRECT DRIVE & THE REVERSE COUPLERS, AND THE CLUTCH DRIVE DISCS. THIS ALLOWS FOR THE GREATEST RELIABILITY EVER, SINCE NONE OF THE GEAR TRAIN TURNS DURING OPERATION, THERE IS LITTLE TO FAIL
  • LUBRICATION IS BY THE SPLASH METHOD & ALL GEARS HAVE DOG RINGS FOR EASY SHIFTING
  • THE DISTANCE FROM THE CENTER OF THE MAIN SHAFT TO THE BOTTOM OF THE CASE IS ONLY 4 1/4", ALLOWING THE MOST GROUND CLEARANCE OF ANY TRANSMISSION
  • FEATURES AN INTEGRAL HYDRAULIC CLUTCH, WHICH INCLUDES THE INPUT SHAFT, CLUTCH ASSEMBLY, & THROWOUT BEARING. THIS CLUTCH IS SIMPLE & QUICK TO INSTALL & REMOVE. IT MOUNTS TO THE FRONT OF THE TRANSMISSION & CAN BE QUICKLY UNBOLTED BY REMOVING ONLY 3 BOLTS. JUST 1 SNAP RING NEEDS TO BE PULLED FOR DISASSEMBLY
  • INSIDE THE CLUTCH DRUM, THERE ARE 5 DRIVE & 5 DRIVEN CLUTCH PLATES. A NEEDLE BEARING ASSEMBLY ENSURES THAT THE CLUTCH DRUM IS WELL SUPPORTED & IN ALIGNMENT, THUS GUARANTEEING NO DRAG & A POSITIVE CLUTCH RELEASE
  • REPLACEMENT PARTS ARE READILY AVAILABLE HERE AT SOUTHWEST SPEED; CLICK HERE FOR THE FULL LIST, AS WELL AS SEVERAL DETAILED DIAGRAMS OF THE BRINN TRANSMISSION

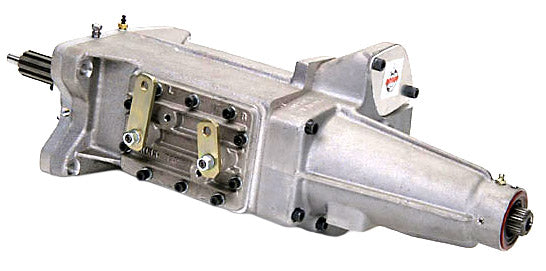

  • ORIGINAL BRINN PRO SERIES SHOWN
