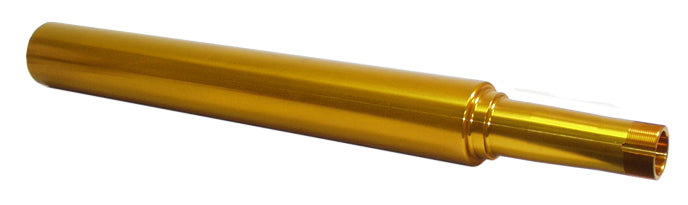

WIDE 5 TUBE,ALUM, 22 1/2",34 1/2"

WIDE 5 TUBE,ALUM, 22 1/2",34 1/2"

605-170

$199.99
$199.99
View full details
  • MEASURES 22 1/2" FROM THE END OF THE TUBE TO WHERE THE INNER HUB BEARING BOTTOMS OUT ON THE SNOUT
  • ONE PIECE, 7075-T6 ALUMINUM CONSTRUCTION
  • 3" O.D.
  • 1/4" WALL THICKNESS
  • ANODIZED GOLD
  • NOTE: WIDE 5 SNOUT USES 2" I.D. INNER BEARING & 1 13/16" I.D. OUTER BEARING
  • THE LAST LENGTH IN THE DESCRIPTION (34 1/2") IS MERELY A REFERENCE LENGTH FOR AXLES ON CERTAIN REAR ENDS, DISREGARD THIS LENGTH
    • Rear End Tubes > Wide 5, Aluminum
