QUICK CHANGE REAR END ASSEMBLY,STREET ROD,8.38 V-8,56",POLISH

QUICK CHANGE REAR END ASSEMBLY,STREET ROD,8.38 V-8,56",POLISH

604-3781

$3,799.99
$3,799.99
This item requires an additional shipping fee of $50 over standard shipping.
View full details

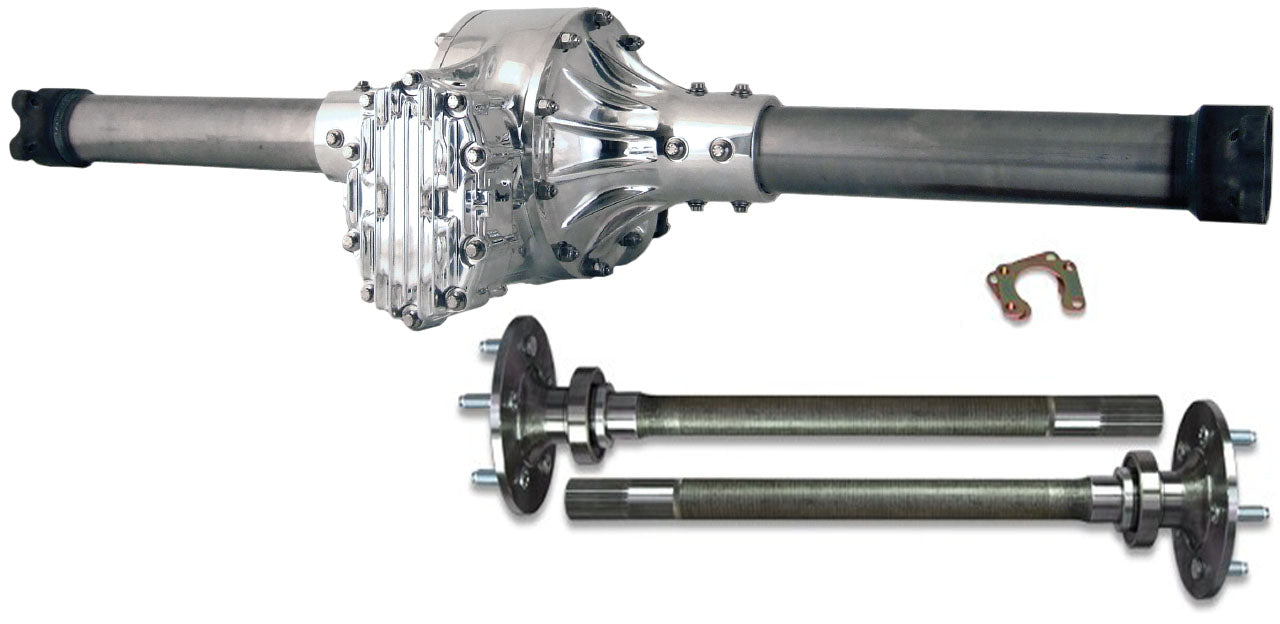

  • BRAND NEW WINTERS V8 QUICK CHANGE REAR END WITH FLANGED AXLES, WITH POLISHED CENTER SECTION, & WITH POLISHED GEAR COVER (PART #604-3781; WINTERS PART #SR2550, SR2980-56", & SR8207).  THIS REAR END MEASURES 56" AXLE FLANGE TO AXLE FLANGE.
  • LEGENDARY STYLING AND CUTTING EDGE TECHNOLOGY FOR STREET RODS, HOT RODS, ROADSTERS, ETC.  THE WINTERS V8 QUICKCHANGE REAR END FEATURES A 8 3/8", 3.78 RING & PINION, POLISHED CENTER SECTION, POLISHED GEAR COVER, HEAT TREATED LOWER SHAFT, WINTERS WEDGELOCK DIFFERENTIAL (SEE DIAGRAM BELOW), AXLE SEALS AND A SET OF 6 SPLINE, STRAIGHT CUT GEARS.  INCLUDES STOCK APPEARING FLANGED 31 SPLINE AXLES THAT WILL ACCOMMODATE AFTER-MARKET DISC OR STOCK BRAKES.
  • THESE REAR ENDS ARE A FANTASTIC ADDITION TO ALMOST ANY STREET ROD, HOT ROD, OR RESTORATION PROJECT
  • FEATURES:
    • WINTERS 8 3/8", 3.78 RING & PINION
    • HEAT-TREATED LOWER SHAFT

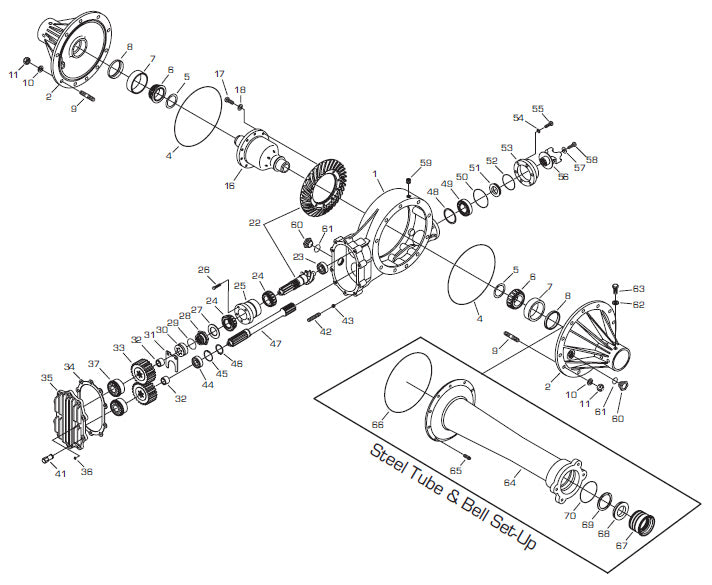

    • WINTERS WEDGELOCK DIFFERENTIAL, WHICH YOU CAN SEE PICTURED BELOW
      • THE WEDGELOCK IS AN ALL-GEAR DRIVE DIFFERENTIAL.  IT IS A UNIQUE RACE PROVEN GEAR DESIGN THAT AUTOMATICALLY SENSES WHEEL SPIN AND DELIVERS POSITIVE TRACTION
    • 31 SPLINE FLANGED AXLES WITH BEARINGS, BEARING RETAINERS, AND STUDS
      • DRILLED FOR USE WITH 5 X 4.5" AND 5 X 4.75" BOLT PATTERNS
    • AXLE SEALS
    • 1310 SERIES FRONT PINION YOKE
    • INCLUDES A SET OF WINTERS 6 SPLINE GEARS;  THE DEFAULT GEAR SET IS #4401, WHICH HAS 24 SPLINE UPPER AND LOWER GEARS, YIELDING A 3.78 GEAR RATIO.  IF YOU WOULD LIKE TO GET A DIFFERENT SET INSTEAD, JUST LET US KNOW WHEN ORDERING, AS WE HAVE THE COMPLETE LINE IN STOCK
    • THE AXLE FLANGES ON THIS REAR END ARE THE BIG BEARING FORD (NEW STYLE), ALSO KNOWN AS "TORINO":
    • THIS REAR END COMES ASSEMBLED WITH THE TUBES INSTALLED
    • SHIPS VIA UPS IN 2 SEPARATE BOXES BY REMOVING THE SIDE BELLS WITH THE TUBES INSTALLED TO SHIP IN ONE BOX AND SHIPPING THE COMPLETE CENTER SECTION IN ANOTHER BOX

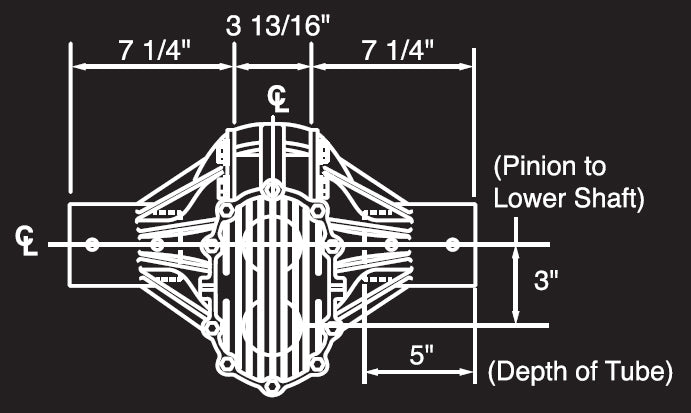

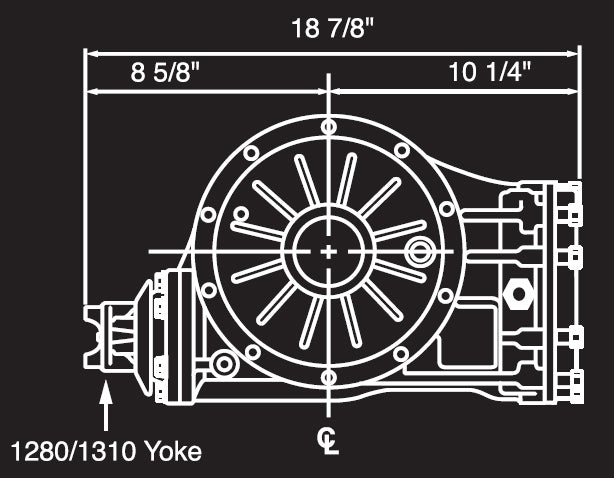

    • YOU CAN SEE MANY DIFFERENT DIAGRAMS TO THE RIGHT WITH ALL THE DIMENSIONS OF THIS REAR END
