QUICKCHANGE ASSY,MAG,TIGER,CTD BELLS,LOW DRAG,WITH STEEL TUBES,AXLES,HUBS,ROTORS

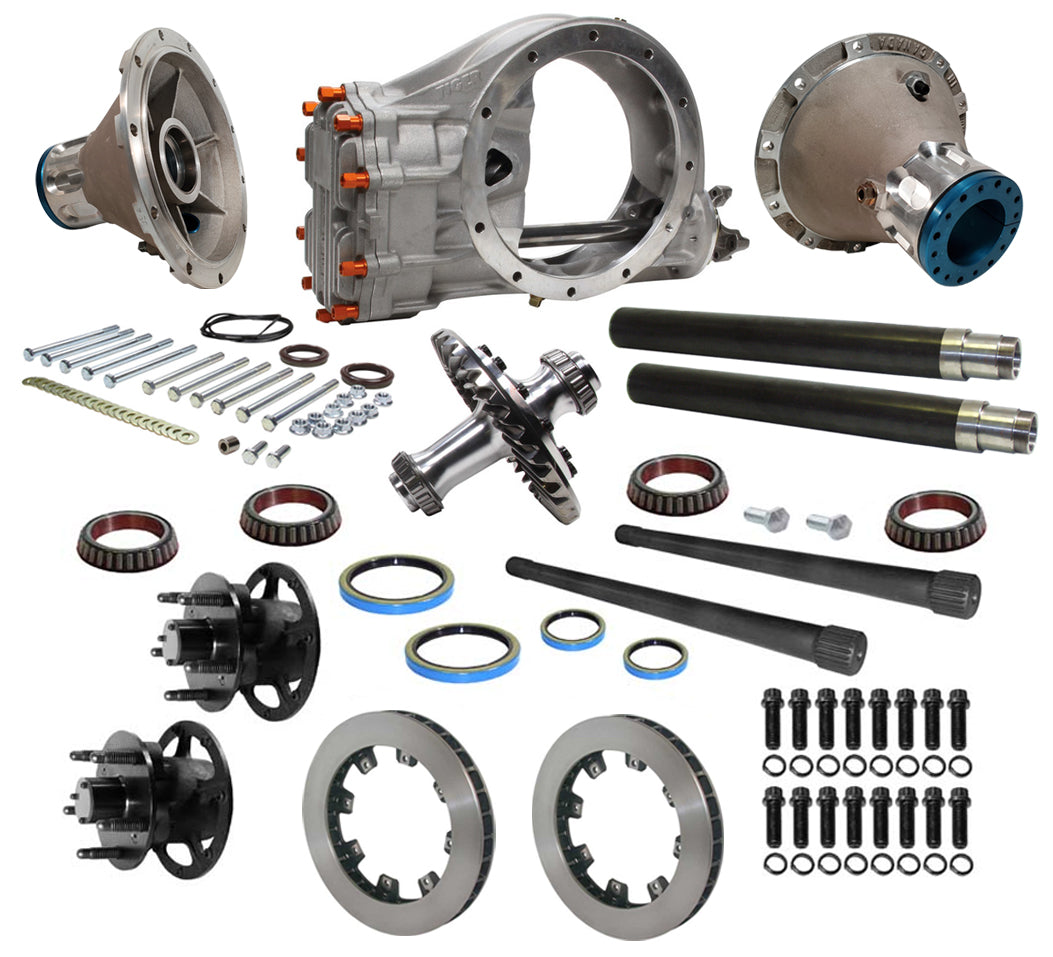

BRAND NEW TIGER MAGNESIUM QUICK CHANGE REAR END WITH CTD SIDE BELLS, POLISHED RING & PINION, STEEL TUBES, AXLES, HUBS, & ROTORS (PART #604-3027).

CTD QUICK CHANGE SIDE BELLS ARE RAPIDLY BECOMING THE STATE-OF-THE ART IN REAR DRIVE TECHNOLOGY. NO LONGER DOES A DAMAGED TUBE MEAN LOADING THE CAR. IN LITERALLY A FEW MINUTES, WITHOUT HEAT, DRILLING, OR A PRESS, A NEW TUBE CAN BE INSTALLED WITHOUT EVEN DRAINING THE OIL! THESE SIDE BELLS ARE SIMPLY THE ONLY WAY TO GO! JUST LOOSEN CTDS PATENTED TAPER LOCK AND REMOVE THE SAFETY PIN. REINSTALL THE NEW TUBE, TAPER LOCK AND SAFETY PIN AND YOU ARE DONE!

NOTE: THE STANDARD WIDTH OF THESE REAR ENDS IS 60" CENTERED, MEASURED FROM DRIVE PLATE FACE TO DRIVE PLATE ACE, IN OTHER WORDS, FROM WHERE THE WHEEL BOLTS ON TO WHERE THE WHEEL BOLTS ON. HOWEVER, WE HAVE THE STEEL TUBES AVAILABLE TO MAKE ALMOST ANY WIDTH.

INCLUDES:

• TIGER MAGNESIUM QUICK CHANGE CENTER SECTION
• BERT CTD SIDE BELLS (QUICK TUBE REPLACEMENT)
• REM POLISHED RING & PINION, 4:86
• DRILLED ALUMINUM 31 SPLINE SPOOL
• LOW DRAG SEALS
• STEEL 5X5 AXLE TUBES
• SOLID AXLES, 31 SPLINE (GUN-DRILLED AXLES ARE AVAILABLE AT AN ADDITIONAL COST)
• SPINDLE NUTS & LOCK WASHERS
• 11.75" O.D. ROTORS, .810" WITH 8 BOLT X 7" BOLT CIRCLE
• ROTOR BOLT KITS
• 5 X 4 3/4" CAST STEEL HUBS WITH COARSE THREAD STUDS
• 8 BOLT X 7" ROTOR PLATES
• DRIVE PLATES
• WHEEL BEARINGS
• WHEEL SEALS
• ALL NECESSARY O-RINGS & BOLTS FOR THE HUB KITS
• SPINDLE SNOUT SEALS
• AXLE SPACER BOLTS
