5X5 REAR,W/METRIC MOUNTS,CAST STEEL HUB

5X5 REAR,W/METRIC MOUNTS,CAST STEEL HUB

SKU:603-604

Regular price $1,099.99
Regular price Sale price $1,099.99
This item requires an additional shipping fee of $30 over standard shipping.
View full details
  • 60" CENTERED, SOUTHWEST SPEED STOCK GM METRIC REAR END ASSEMBLY
  • ALL NEW COMPONENTS & MATERIALS
  • UPPER & LOWER GM METRIC MOUNTS COME WELDED IN PLACE
  • FEATURES VENT, FILL, & DRAIN PLUG BUNGS
  • 5 X 5" BOLT PATTERN
  • CAST STEEL HUBS (#601-188)

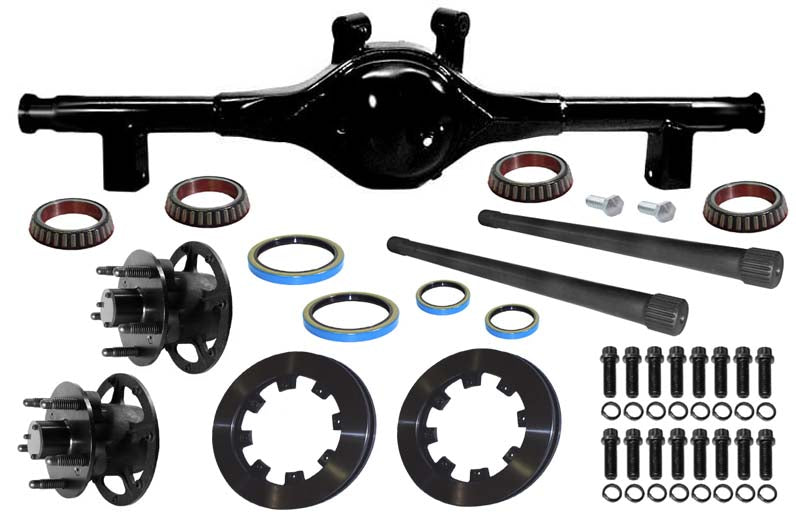

  • COMPLETE STOCK GM METRIC 9" FORD REAR END ASSEMBLY INCLUDES:
    *HOUSING WITH METRIC MOUNTS
    *SOLID AXLES, 28 OR 31 SPLINE (GUNDRILLED AXLE OPTION AVAILABLE)
    *SPINDLE NUTS & LOCK WASHERS
    *11.75" O.D. ROTORS, EITHER .810" OR 1.250" WIDE, WITH 8 BOLT X 7" BOLT CIRCLE
    *ROTOR BOLT KITS
    *5 X 5" CAST STEEL HUBS WITH COARSE THREAD STUDS
    *8 BOLT X 7" ROTOR PLATES
    *DRIVE PLATES
    *WHEEL BEARINGS
    *WHEEL SEALS
    *ALL NECESSARY O-RINGS & BOLTS FOR THE HUB KITS
    *SPINDLE SNOUT SEALS
    *AXLE SPACER BOLTS
  • GUN-DRILLED AXLES ARE AVAILABLE AT AN ADDITIONAL COST
  • WHEN ORDERING, PLEASE SPECIFY IF YOU WANT 28 OR 31 SPLINE AXLES
  • REAR ENDS ARE 60" CENTERED; LENGTH OF THE REAR END IS MEASURED FROM THE LEFT DRIVE PLATE FACE TO THE RIGHT DRIVE PLATE FACE, IN OTHER WORDS, FROM WHERE THE WHEEL BOLTS ON TO WHERE THE WHEEL BOLTS ON
