HEADER,SBF,1 5/8",289/5.0L,SHORTY,64-73 MUSTANG,FAIRLANE,ETC,2 1/2",BLACK

HEADER,SBF,1 5/8",289/5.0L,SHORTY,64-73 MUSTANG,FAIRLANE,ETC,2 1/2",BLACK

440-2495

$399.99
$399.99
View full details

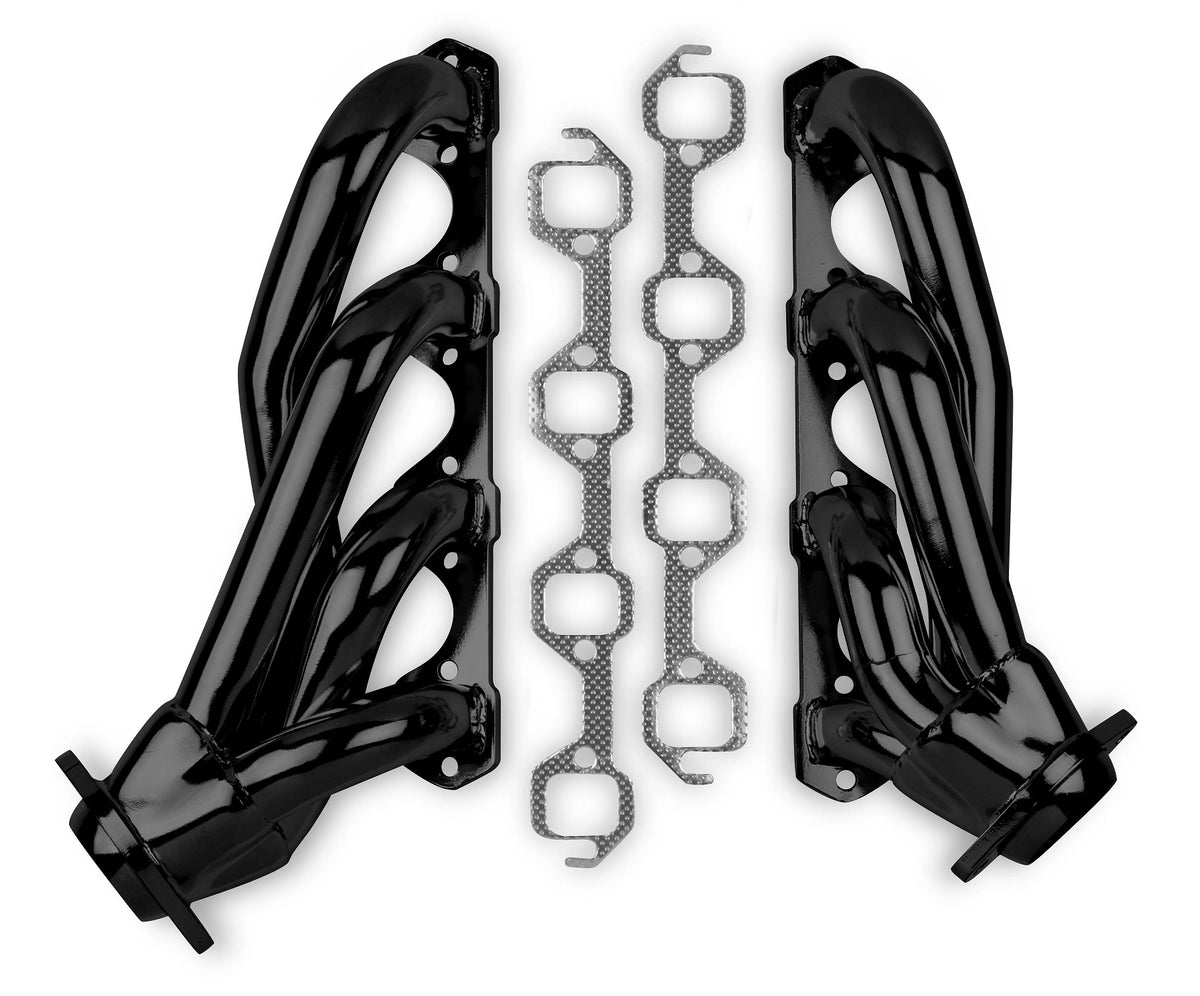

Brand New Southwest Speed Shorty Headers, Painted Black, 1-5/8" Tube Diameter, 2.5" Collectors (Part #440-2495).

Southwest Speed headers are the perfect combination of performance and value. This shorty header fits the popular 1964-1/2 to 1973 Ford Mustang, Falcon, Fairlane, Torino, Ranchero, Comet, Cyclone and Montego V8-289/302/5.0L.

NOTE: This application does not fit with Dart Windsor heads or C6 transmissions. For 1964-1966 models the center to center distance between shock towers needs to be at a minimum of 34 7/16-inches

Compatible with:

  • Ford:
    • 1964-1970 Fairlane
    • 1964-1970 Falcon
    • 1972-1973 Gran Torino
    • 1971-1973 Maverick
    • 1964-1973 Mustang
    • 1965-1973 Ranchero
    • 1968-1973 Torino
  • Mercury:
    • 1964-1973 Comet
    • 1967-1973 Cougar
    • 1964-1971 Cyclone
    • 1968-1973 Montego

Features:

  • High flow, mandrel-bent tubes provide consistent tubing diameters for smooth flow and increased exhaust velocity
  • Heavy duty tubing and high quality welds for increased strength and durability
  • Smooth transition, 1-5/8” diameter primary tubes are used for increased exhaust flow increasing performance, improving throttle response and broadening the torque curve
  • 2-1/2” collector used for high tuck design and maximum exhaust component clearance
  • Machined 3/8” header flange for a leak-free seal and maximum strength
  • Premium aluminum header gaskets and installation hardware included
  • Shorty header design with rear exit location is perfect for lowered vehicles where maximum ground clearance and fitment is critical

Specs:

  • Engine: Ford 289/302
  • Header Style: Shorty
  • Header Finish: Painted Black
  • Primary Tube Diameter: 1-5/8"
  • Collector Diameter: 2.5"

Paint Warning:

  • These headers are painted with a high heat dull black paint. It will generally dull even more when the engine is started. The header paint will smoke and let off an odor the first few times the engine is up to temperature and the black finish will become duller turning closer to gray in color. If exhaust temperatures are extreme at start the paint will blister and peel. There is no warranty on header paint.

Header Return Policy:

  • Please refer to the header measurement chart below to make sure the header will fit your vehicle and application before ordering. In the event you order a header that will not fit your vehicle and application, you may return them for a refund, providing you don't damage the header. When you receive the header the finish will be protected and must remain unscratched for a refund. If you bend or dimple any of the tubes or scratch the finish, we will not be able to sell the header and will not be able to process a refund. Use care when trial fitting headers. Repack them well to prevent damage returning them to us. We won't process refunds for scratched, dimpled, dented, or bent headers.

You can view and download the complete assembly instruction booklet for these headers here.
