HEADER,FLATHEAD FORD V-8,1 3/4",CENTER DUMP,2 1/2" COLLECTORS,BLACK

HEADER,FLATHEAD FORD V-8,1 3/4",CENTER DUMP,2 1/2" COLLECTORS,BLACK

440-2458

$199.99
$199.99
This item requires an additional shipping fee of $20.00 over standard shipping.
View full details

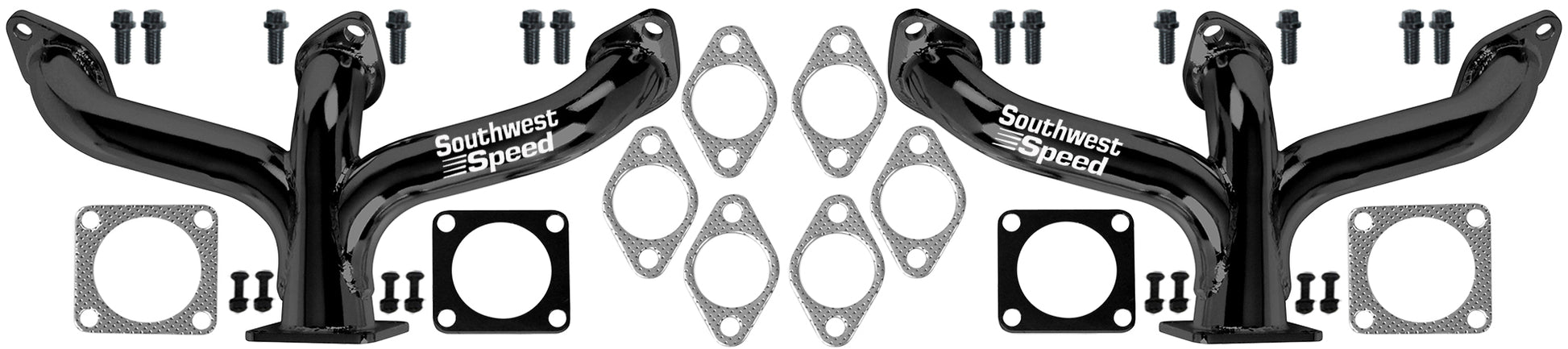

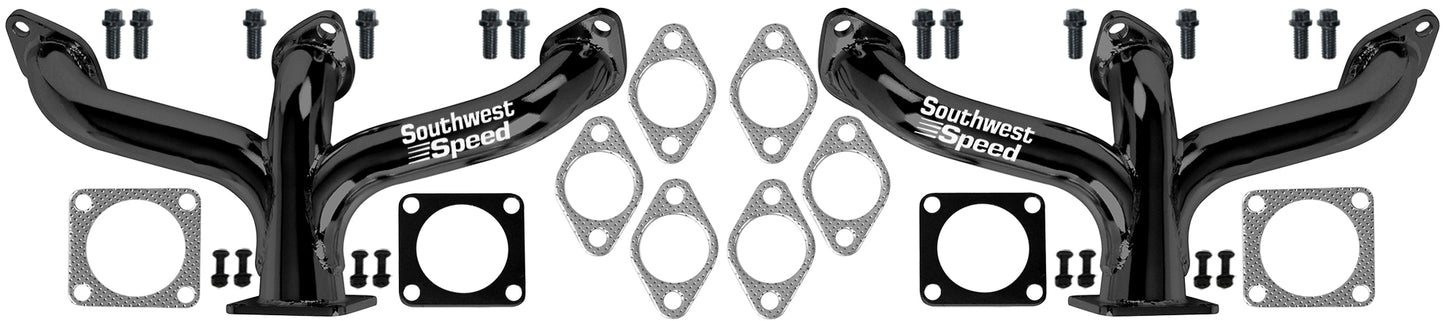

  • BRAND NEW PAIR OF SOUTHWEST SPEED FLAT BLACK CENTER DUMP HEADERS FOR 1932-1953 FLAT HEAD FORDS WITH 136-337CI V-8 ENGINES

  • HOT RODS, STREET RODS, RAT RODS & NOSTALGIA RODS ARE HOTTER THAN EVER, AND NOTHING GIVES YOUR VINTAGE ROD THAT RACY LOOK AND SOUND LIKE A SET OF OUR HEADERS. IMPROVE THE PERFORMANCE & SOUND QUALITY OF YOUR 1932-1953 FLATHEAD FORD V8 WITH THESE HIGH QUALITY & AFFORDABLE TUBULAR STEEL CENTER DUMP DESIGN HEADERS. COMPLETE WITH HEADER BOLTS AND GASKETS, FLANGE BOLTS AND GASKETS, 2-1/2" DIAMETER COMPANION FLANGES. GROUND PARALLEL WITH .300" FLANGES ON THE MOUNTING SURFACE. ALTHOUGH THESE ARE 1932-1953 FORD CAR SPECIFIC HEADERS, THEY WILL FIT MANY OTHER APPLICATIONS WITH USUALLY A MINIMUM OF CHANGES. CONSULT THE KNOWN RESTRICTIONS BELOW TO INSURE HEADERS WILL FIT YOUR VEHICLE AND APPLICATION. WE SUGGEST ALSO HAVING SOMEONE COMPETENT IN HEADER INSTALLATION ASSIST WITH THIS PROJECT.

  • NOTE: REFER TO MEASUREMENT CHART BELOW TO INSURE HEADERS WILL FIT YOUR VEHICLE AND APPLICATION.

    • FEATURES:

    • 1-3/4" PRIMARY TUBES INTO 2-1/2" DIAMETER COLLECTOR
    • CENTER DUMP DESIGN
    • GREAT FOR SOME HOT RODS, RAT RODS & STREET RODS
    • EASILY ADAPTED TO MANY APPLICATIONS AND ENGINE SWAP COMBINATIONS
    • MORE PERFORMANCE
    • BETTER FUEL MILEAGE
    • GREAT CHOICE TO REPLACE CAST IRON EXHAUST MANIFOLDS
    • ENHANCES THE LOOKS OF ANY ROD
    • INCLUDES BLOCK GASKETS, COLLECTOR GASKETS AND A PAIR OF COMPANION 2-1/2" FLANGES FOR BEGINNING THE EXHAUST SYSTEM (COMPANION FLANGES FIT 2-1/2" PIPE).
    • PAINTED FLAT BLACK TO RESIST EARLY CORROSION

    HEADER SPECIFICATIONS:

    • PORT DIAMETER: 1-3/4"
    • FLANGE THICKNESS: .310"
    • TUBE OUTSIDE DIAMETER: 1-3/4"
    • COLLECTOR DIAMETER: 2-1/2"

    APPLICATIONS:

    • FITS 136, 221, 239, 255, & 337 CUBIC INCH FLAT HEAD FORD V-8 ENGINES
    • WILL BOLT TO ALL 32-53 FLAT HEAD FORD V-8 BLOCKS

  • NOTE: HEADERS DROP DOWN 7-1/2", AT EXHAUST PORTS THE HEADERS STICK OUT 2-1/4", AND AT THE BOTTOM OF THE BLOCK THE COLLECTOR STICKS OUT 4-1/4".

    • KNOWN RESTRICTIONS:

    • WILL NOT WORK ON FORD CARS WITH STOCK WISHBONES.

    PAINT WARNING:

    THESE HEADERS ARE PAINTED WITH A HIGH HEAT DULL BLACK PAINT. IT WILL GENERALLY DULL EVEN MORE WHEN THE ENGINE IS STARTED. THE HEADER PAINT WILL SMOKE AND LET OFF AN ODOR THE FIRST FEW TIMES THE ENGINE IS UP TO TEMPERATURE AND THE BLACK FINISH WILL BECOME DULLER TURNING CLOSER TO GRAY IN COLOR. IF EXHAUST TEMPERATURES ARE EXTREME AT START THE PAINT WILL BLISTER AND PEEL. THERE IS NO WARRANTY ON HEADER PAINT.

    HEADER RETURN POLICY:

    PLEASE REFER TO THE HEADER MEASUREMENT CHART BELOW TO MAKE SURE THE HEADER WILL FIT YOUR VEHICLE AND APPLICATION BEFORE ORDERING. IN THE EVENT YOU ORDER A HEADER THAT WILL NOT FIT YOUR VEHICLE AND APPLICATION, YOU MAY RETURN THEM FOR A REFUND, PROVIDING YOU DO NOT DAMAGE THE HEADER. WHEN YOU RECEIVE THE HEADER, THE FINISH WILL BE PROTECTED AND MUST REMAIN UNSCRATCHED FOR A REFUND. IF YOU BEND OR DIMPLE ANY OF THE TUBES OR SCRATCH THE FINISH, WE WILL NOT BE ABLE TO SELL THE HEADER AND WILL NOT BE ABLE TO PROCESS A REFUND. USE CARE WHEN TRIAL FITTING HEADERS. REPACK THEM WELL TO PREVENT DAMAGE RETURNING THEM TO US. WE WILL NOT PROCESS REFUNDS FOR SCRATCHED, DIMPLED, DENTED, OR BENT HEADERS.
