HEADER,SBC,1 5/8",63-82 CORVETTE,LONG TUBE,3",CHROME PLATED

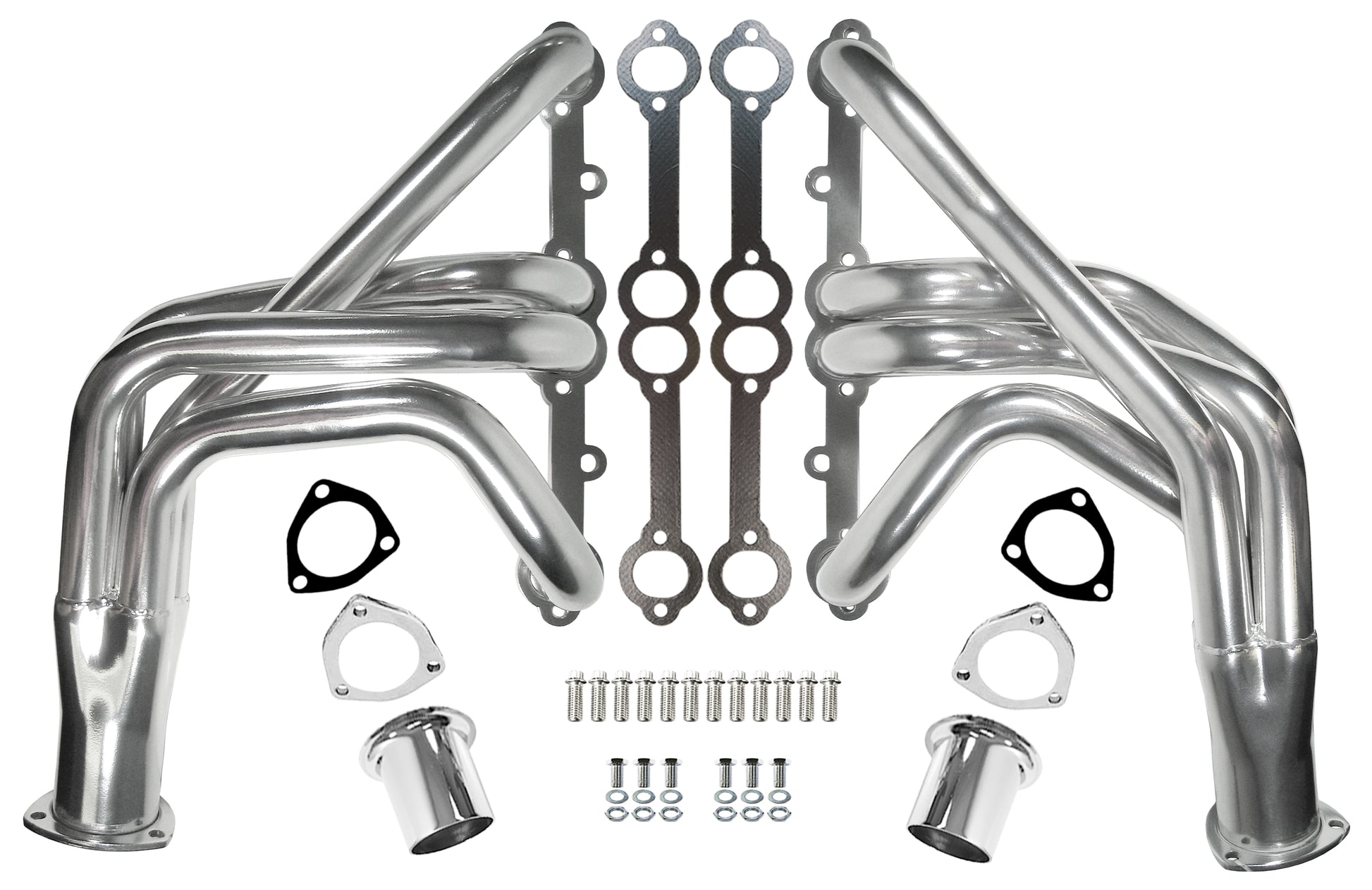

Brand New Pair of Southwest Speed Triple Process Chrome Plated Long Tube Headers for 1963-1982 Corvette's with Small Block Chevy 262-400ci Engines (Part #440-2232).

This Pair of Southwest Speed Small Block Chevy Long Tube Headers offer an immediate increase in performance by eliminating backpressure, improving exhaust flow, and building more horsepower. Constructed from cold-rolled, flash-controlled 16-gauge steel tubing and finished with a black satin paint or silver ceramic heat resistant coating these headers are equipped with an O-ring port seal and 5/16" flanges that are heavy enough to maintain complete integrity, yet pliable enough to create a leak free seal. The consistent tubing diameter contributes to the smooth air flow and greater exhaust velocity of these carefully engineered headers while the precision welded collectors give you a perfect fit. Headers do not have an internal coating.

Applications:

• 1963-1982 Chevrolet Corvette

Notes:

• Must modify stock exhaust to retain catalytic converters.
• Will not fit with A.I.R. pump.
• Installation on vehicles 1978 and earlier with air conditioning will require purchase of 410-5815 bracket.
• 1979 and later vehicles equipped with short compressor will re-use the original bracket.

Features:

• 1-5/8" primaries to the 3" Collectors
• 2 1/2" reducers
• Ideal for Engine Swaps
• More Performance
• Better Fuel Mileage
• Enhances the look of any Corvette
• Will clear straight and angle plug heads
• Includes gaskets and mounting hardware
• Triple Process Chrome Plated to resist early corrosion

Header Specs:

• Material Type: Steel
• Header Style: Full Length
• Tube Direction: Down Swept
• Flange Thickness: .313"
• Hardware Included: Yes
• Gaskets Included: Yes
• Tube Outside Diameter: 1 5/8"
• Collector Diameter: 3"
• Reducers: 2 1/2"

Chrome Warning:

Due to a revised chroming process brought on by recent EPA regulations and high labor costs, todays chrome is not the quality of days gone by. Be aware: exhaust components which are chrome plated are now much more susceptible to blueing, blistering, peeling & corrosion. We see very few headers that do not change color once exhaust temperatures are achieved. No warranty or returns on chrome exhaust items once they have been installed.

Header Return Policy:

Please refer to the header measurement chart below to make sure the header will fit your vehicle and application before ordering. In the event you order a header that will not fit your vehicle and application, you may return them for a refund, providing you don't damage the header. When you receive the header the finish will be protected and must remain unscratched for a refund. If you bend or dimple any of the tubes or scratch the finish, we will not be able to sell the header and will not be able to process a refund. Use care when trial fitting headers. Repack them well to prevent damage returning them to us. We won't process refunds for scratched, dimpled, dented, or bent headers.

You can view and download the complete instructions for these headers here.
