OIL PAN,FINNED ALUM,SBC,86+,RIGHT-HAND DIPSTICK

OIL PAN,FINNED ALUM,SBC,86+,RIGHT-HAND DIPSTICK

413-0397

$139.99
$139.99

Yes, we have this item in stock and ready to ship immediately!
This item requires an additional shipping fee of $10.00 over standard shipping.
View full details

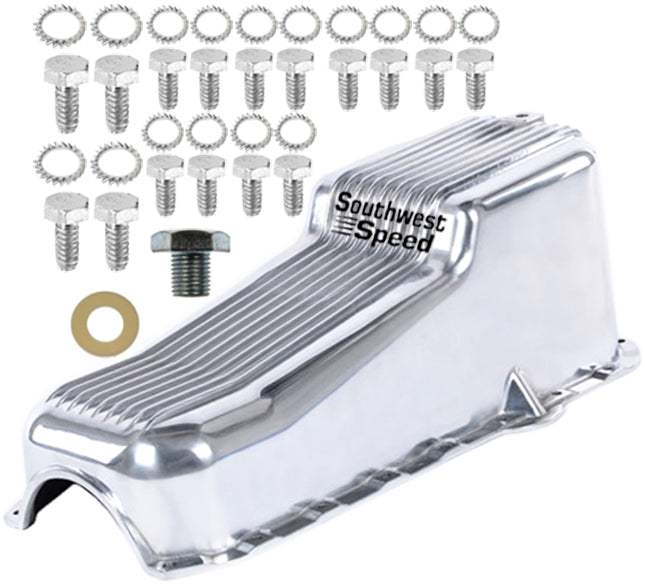

Brand New Southwest Speed Polished Finned Aluminum 4 Quart Oil Pan with Right Hand Side Oil Dipstick that fits 1986-2002 Small Block Chevy 262ci-350ci Engines running up to a 3.48" Stroke. (SWS Part #413-0397).

This Southwest Speed 4 Quart Oil Pan fits 262ci-350ci Small Block Chevy engines running a maximum stroke of 3.48". This Oil Pan uses the factory style 1 piece rear main seal, & front main seal. This oil pan features polished finned cast aluminum & is notched on the right side for the oil dipstick, and utilizes the factory oil pump pickup. This Oil Pan was crafted from the highest quality materials, and includes mounting hardware, oil drain plug, & drain plug sealing washer.

Note: This oil pan only fits Small Block Chevy Engines with a right hand side oil dipstick.

Features:

  • Fits Small Block Chevy Engines with up to a 3.48" Stroke (Except with aluminum rods)
  • Stock Style 4 quart oil pan capacity excluding oil filter
  • Utilizes factory oil pump pickup
  • Uses 1 piece rear main seal
  • Right Hand Side Oil Dipstick
  • Polished Finned Cast Aluminum
  • Crafted using the highest quality materials
  • Includes 14: 1/4" x 3/4": oil pan mounting bolts
  • Includes 4: 5/16" x 1": front & rear oil pan mounting bolts
  • Includes 1: 5/8" oil drain plug

Note: This oil pan only fits Small Block Chevy Engines running a maximum crankshaft stroke of 3.48" and is not clearanced for 3.75" Crankshafts.

Factory Applications:

Chevrolet:

    • Blazer: 1987-1994, (5.0L 305CI), (5.7L, 350CI)
    • Blazer K5: 1986, (5.0L 305CI), (5.7L, 350CI)
    • Camaro: 1986-1997, (5.0L 305CI), (5.7L, 350CI)
    • Caprice: 1986-1996, (5.0L 305CI), (5.0L 307CI), (5.7L, 350CI)
    • Commercial Chassis: 1991-1994, (5.7L 350CI)
    • Corvette: 1986-1996, (5.7L 350CI)
    • C10 Pickup: 1986, (5.0L 305CI), (5.7L, 350CI)
    • C10 Suburban: 1986, (5.0L 305CI), (5.7L, 350CI)
    • C1500: 1989-1999, (5.0L 305CI), (5.7L, 350CI)
    • C1500 Pickup: 1990-1999, (5.0L 305CI), (5.7L, 350CI)
    • C1500 Suburban: 1992-1999, (5.0L 305CI), (5.7L, 350CI)
    • C20 Pickup: 1986, (5.0L 305CI), (5.7L, 350CI)
    • C20 Suburban: 1986, (5.0L 305CI), (5.7L, 350CI)
    • C2500: 1989-2000, (5.0L 305CI), (5.7L, 350CI)
    • C2500 Pickup: 1989-2000, (5.0L 305CI), (5.7L, 350CI)
    • C2500 Suburban: 1992-1999, (5.0L 305CI), (5.7L, 350CI)
    • C30 Pickup: 1986, (5.0L 305CI), (5.7L, 350CI)
    • C3500 Pickup: 1988-2000, (5.0L 305CI), (5.7L, 350CI)
    • Express 1500: 1996-2000, (5.0L 305CI), (5.7L, 350CI)
    • Express 2500: 1996-2000, (5.0L 305CI), (5.7L, 350CI)
    • Express 3500: 1996-2000, (5.7L, 350CI)
    • G10: 1986-1995, (5.0L 305CI), (5.7L, 350CI)
    • G20: 1986-1995, (5.0L 305CI), (5.7L, 350CI)
    • G30: 1986-1996, (5.7L, 350CI)
    • Impala: 1994-1996, (5.7L, 350CI)
    • K10 Pickup: 1986, (5.0L 305CI), (5.7L, 350CI)
    • K1500: 1988-1999, (5.0L 305CI), (5.7L, 350CI)
    • K1500 Pickup: 1988-1999, (5.0L 305CI), (5.7L, 350CI)
    • K1500 Suburban: 1988-1999, (5.0L 305CI), (5.7L, 350CI)
    • K20 Pickup: 1986, (5.0L 305CI), (5.7L, 350CI)
    • K2500: 1988-2000, (5.0L 305CI), (5.7L, 350CI)
    • K2500 Pickup: 1988-2000, (5.0L 305CI), (5.7L, 350CI)
    • K2500 Suburban: 1988-1999, (5.0L 305CI), (5.7L, 350CI)
    • K30 Pickup: 1986, (5.7L, 350CI)
    • K3500: 1988-2000, (5.7L, 350CI)
    • K3500 Pickup: 1988-2000, (5.7L, 350CI)
    • Monte Carlo: 1986-1988, (5.0L, 305CI)
    • P20: 1986-1989, (5.7L, 350CI)
    • P30: 1986-1999, (5.7L, 350CI)
    • R10 Pickup: 1987, (5.0L 305CI), (5.7L, 350CI)
    • R10 Suburban: 1987-1988, (5.0L 305CI), (5.7L, 350CI)
    • R1500 Suburban: 1989-1991, (5.0L 305CI), (5.7L, 350CI)
    • R20 Pickup: 1987, (5.0L 305CI), (5.7L, 350CI)
    • R20 Suburban: 1987-1988, (5.7L, 350CI)
    • R2500 Pickup: 1989, (5.7L, 350CI)
    • R2500 Suburban: 1989-1991, (5.7L, 350CI)
    • R30 Pickup: 1987-1988, (5.7L, 350CI)
    • R3500 Pickup: 1989, (5.7L, 350CI)
    • Silverado 2500 : 2001-2002, (5.7L, 350CI)
    • Tahoe : 1995-2000, (5.7L, 350CI)
    • V10 Pickup: 1987, (5.0L 305CI), (5.7L, 350CI)
    • V10 Suburban: 1987-1988, (5.0L 305CI), (5.7L, 350CI)
    • V1500 Suburban: 1989-1991, (5.7L, 350CI)
    • V20 Pickup: 1987, (5.0L 305CI), (5.7L, 350CI)
    • V20 Suburban: 1987-1988, (5.0L 305CI), (5.7L, 350CI)
    • V2500 Suburban: 1989-1991, (5.7L, 350CI)
    • V30 Pickup: 1987-1988, (5.7L, 350CI)
    • V3500 Pickup: 1989-1991, (5.7L, 350CI)
