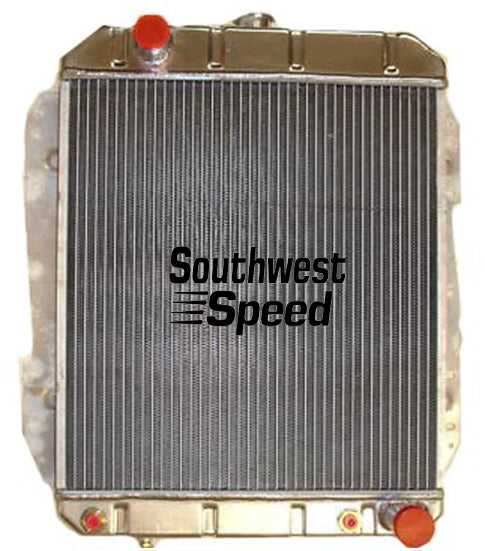

RADIATOR,ALUMINUM,DOWN FLOW,58 IMPALA

FEATURES:

• HIGH EFFICIENCY DOWNFLOW DUAL CORE RADIATOR

• DIRECT BOLT-ON OEM FITMENT OR REPLACEMENT

• CONSTRUCTED FROM STRONG & LIGHTWEIGHT T-606 ALUMINUM

• WELDED SEAMS BRAZED CORE TECHNOLOGY (NO EPOXY)

• 2 ROWS OF 1" TUBES

• CONVENIENTLY LOCATED DRAIN PETCOCK

• BUILT-IN 7-PLATE AUTOMATIC TRANSMISSION COOLER

• TRANS COOLER PORTS: 1/2"-20 INVERTED FLARE

RADIATOR SPECIFICATIONS:

• MATERIAL TYPE: ALUMINUM

• OVERALL HEIGHT: 26 3/8"

• CORE HEIGHT: 20"

• OVERALL WIDTH: 22 1/2"

• CORE WIDTH: 18 1/4"

• TRANSMISSION COOLER:YES

• TUBE STYLE: DOWNFLOW

• OVERALL THICKNESS: 3"

• ROW QUANTITY: DUAL

• DRAIN PETCOCK LOCATION: BOTTOM LEFT SIDE OF RADIATOR

• FILLER NECK DIAMETER: 2 1/8"

• FILLER NECK LOCATION: TOP CENTER

• INLET LOCATION: UPPER LEFT

• INLET SIZE: 1 1/2"

• OUTLET LOCATION: LOWER RIGHT

• OUTLET SIZE: 1 3/4"

• TUBE SIZE: SIZE: 1.00"

• TRANSMISSION COOLER PORTS: 1/2"-20 INVERTED THREADS

• RADIATOR STYLE: SINGLE PASS

FACTORY APPLICATIONS:

• 1958 CHEVY BEL AIR

• 1958 CHEVY BISCAYNE

• 1958 CHEVY BROOKWOOD

• 1958 CHEVY DELRAY

• 1958 CHEVY IMPALA

• 1958 CHEVY NOMAD

• 1958 CHEVY SEDAN DELIVERY

• 1958 CHEVY YOEMAN
