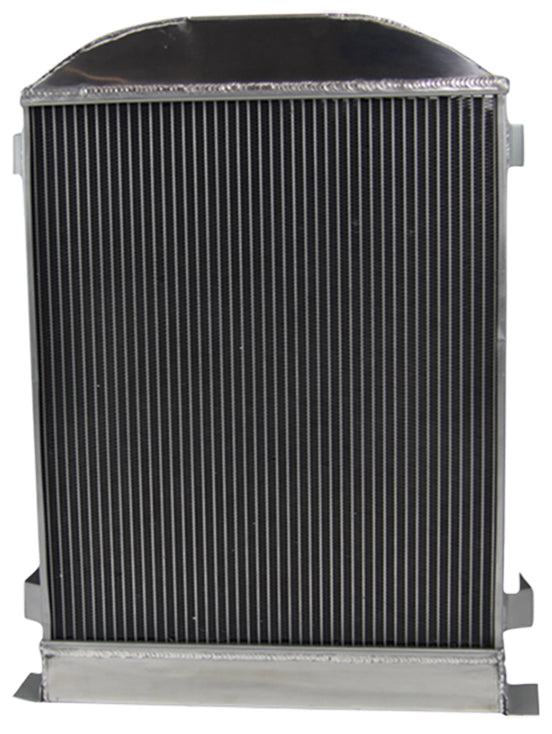

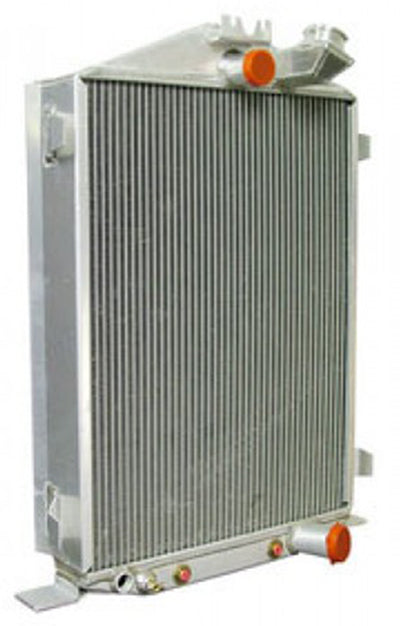

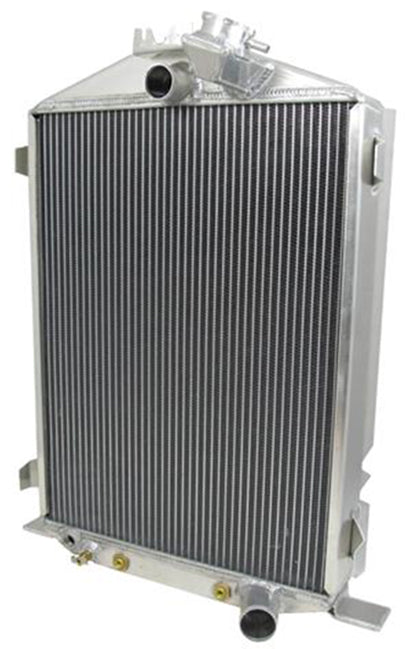

RADIATOR,ALUMINUM,DOWN FLOW,32 FORD,CHEVY OUTLETS,HI-BOY

BRAND NEW SOUTHWEST SPEED ORIGINAL STYLE RADIATOR WITH A BUILT-IN TRANSMISSION COOLER FOR A 1932 FORD HI-BOY, RAT ROD, HOT ROD, OR STREET ROD THAT CAN BE USED ON MANUAL AND AUTOMATIC APPLICATIONS.

THIS RADIATOR IS ALL ALUMINUM WITH 100% TIG WELDED CONSTRUCTION WITH NO EPOXY. FEATURES 2 ROWS OF 1" DIAMETER TUBES AND 17 FINS PER INCH TO PROVIDE MAXIMUM COOLING, WITH A BUILT-IN TRANSMISSION COOLER.

FEATURES:

• 1/2" NPT BUNG FOR TEMP SWITCH
• CHEVY-STYLE OUTLETS
• 2 ROWS OF 1" TUBES
• BUILT-IN 7-PLATE AUTOMATIC TRANSMISSION COOLER
• DRAIN PETCOCK
• TRANS COOLER PORTS: 1/8" NPT

SPECS:

• MATERIAL TYPE: ALUMINUM
• OVERALL HEIGHT: 27 1/8"
• OVERALL WIDTH: 18"
• PASSENGER SIDE LOWER HOSE 1 3/4"
• CENTERED UPPER HOSE: 1 1/2"
• CORE THICKNESS: 3"
• CORE HEIGHT: 22 1/2"
• OVERALL THICKNESS: 4.00"
• TRANSMISSION COOLER: YES
• TUBE STYLE: DOWNFLOW
• ROW QUANTITY: DUAL
• TUBE SIZE: 1.00"
• RADIATOR STYLE: SINGLE PASS

LATEST HIGH EFFICIENCY CORE DESIGNED WITH CHEVY-STYLE OUTLETS. PERFECT FIT WITH OUR HI-BOY GRILLE SHELL AND GRILLE INSERT. SUPER DUTY, ALL ALUMINUM CONSTRUCTION IS IDEAL FOR HIGH COMPRESSION OR SUPERCHARGED ENGINES. (IT IS ALWAYS A GOOD IDEA TO TO MEASURE BEFORE YOU ORDER).
