RADIATOR WITH GRILLE & SHELL,DOWN FLOW,32 FORD HI-BOY RODDER STYLE WITHOUT HOLES

Brand New Southwest Speed Rodder-Style Radiator, Grille, & Grille Shell Kit for a 1932 Ford Hi-Boy, Rat Rod, Hot Rod, or Street Rod (Part #410-1888, 410-1800, & 410-1801).

Please Note: This kit includes an aluminum radiator with the radiator fill cap located on the back of the radiator tank, under the hood.

Kit Includes:

• Southwest Speed 1932 Ford Hi-Boy Aluminum Radiator (#410-1888)
  • 1/2" NPT bung for temp switch, if not needed, it can be plugged with a 1/2" NPT plug
  • 2 rows of 1" tubes
  • Built-in 7-plate automatic transmission cooler
  • Drain Petcock
  • Correct brackets for 32 Ford Support Rods welded to back of upper radiator tank
  • Trans Cooler ports: 1/8" NPT

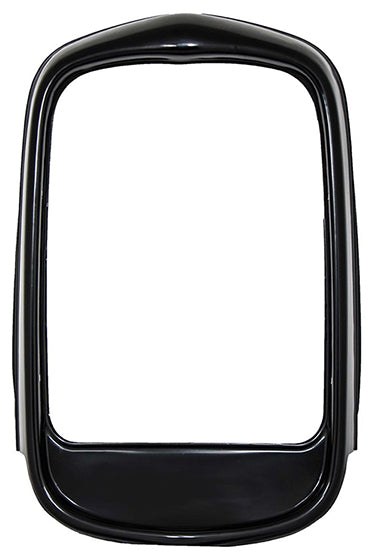

• Southwest Speed 1932 Ford Hi-Boy Steel Grille Shell Without Crank Hole & Without Radiator Fill Hole (#410-1800)
  • Manufactured with heavy duty steel
  • Rodder style with no Crank hole & no Radiator fill hole
  • Model A Ford black finish
  • Rat Rod Quality, Factory Reproduction Piece, which could need sanding, putty & paint to be show car quality.
• Southwest Speed 1932 Ford Hi-Boy Polished Stainless Steel Grille Insert Without Crank Hole (#410-1801)
  • Top Quality stainless steel bars and outer ring
  • Rodder style with no crank hole
  • Polished stainless steel finish

Radiator Specs:

• Material Type: Aluminum
• Overall Height: 27 1/8"
• Overall Width: 18"
• Passenger side lower hose 1 3/4"
• Centered upper hose: 1 1/2"
• Core Thickness: 3"
• Overall Thickness: 4.00"
• Transmission Cooler: Yes
• Tube Style: Downflow
• Row Quantity: Dual
• Tube Size: 1.00"
• Radiator Style: Single Pass

Radiator Grille Shell Specs:

• Material Type: Steel
• Overall Height: 33"
• Overall Width: 22"
• Crank Hole: No
• Radiator Fill Hole: No
• Finish: Model A Ford Black

Radiator Grille Specs

• Material Type: Stainless Steel
• Overall Height: 27 1/2"
• Overall Width: 17 1/2"
• Crank Hole: No
• Finish: Polished

We also have the Rodder style Hi-Boy Radiator & Grille kit available with the crank hole & radiator fill hole, click here to view our other listings.

This is the Perfect kit for a Rat Rod, Hot Rod, or Street Rod. The Aluminum radiator Features a Super duty, all aluminum construction with the latest high efficiency core with Chevy-style outlets that is ideal for high compression & supercharged engines. The Grille insert features exceptionally solid polished stainless steel bars and outer ring. The Grille Shell is made from heavy duty steel with a Ford Model A Black finish that will add the perfect finishing touch to your 32' project. (It is always a good idea to measure before you order).
