TRANSMISSION CROSSMEMBER,47-59 GM TRUCK,CHROME

TRANSMISSION CROSSMEMBER,47-59 GM TRUCK,CHROME

400-7089

$149.99
$149.99
This item requires an additional shipping fee of $5.00 over standard shipping.
View full details

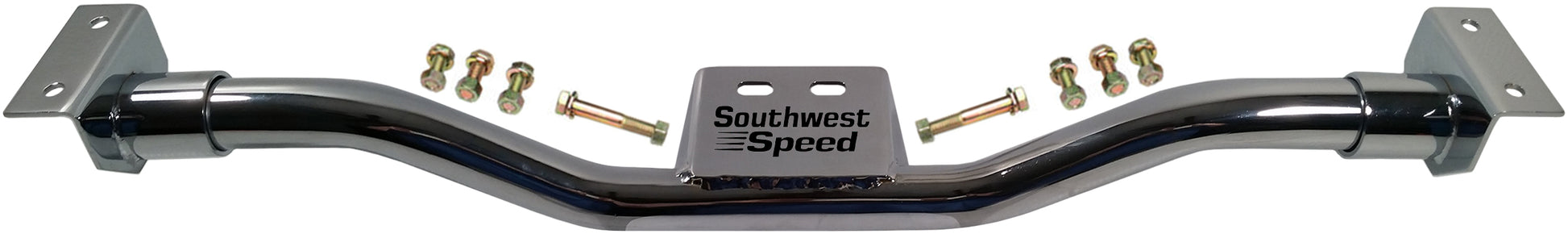

  • BRAND NEW SOUTHWEST SPEED CHROME-PLATED BOLT-IN TUBULAR TRANSMISSION MOUNT FOR 1947-1959 CHEVY & GMC TRUCKS. THIS IS A TRIM-TO-FIT TUBULAR CROSSMEMBER.

  • THIS TUBULAR TRANSMISSION CROSSMEMBER IS FOR INSTALLING LATE MODEL AUTOMATIC & MANUAL TRANSMISSIONS IN 1947-1959 CHEVY & GMC TRUCKS. THIS CROSSMEMBER IS ADJUSTABLE TO FIT FRAME RAIL SPACINGS OF 26" TO 36". THE TRANSMISSION CROSSMEMBER BOLTS DIRECTLY TO 1947-1959 CHEVY & GMC TRUCK FRAME RAILS, AND WILL THEN ACCEPT THE LATER MODEL TRANSMISSIONS. INSTALLATION OF THIS CROSSMEMBER WILL ALLOW YOU TO INSTALL A POWERGLIDE, TH350, TH400, OR 700R4 AUTOMATIC TRANSMISSION, AS WELL AS MUNCIE & SAGINAW, 3 & 4 SPEED MANUAL TRANSMISSIONS. THIS CROSSMEMBER IS SHIPPED COMPLETE AND INCLUDES THE NECESSARY HARDWARE TO MOUNT THE CROSSMEMBER. CROSSMEMBER REQUIRES THE USE OF THE POLYURETHANE OR STOCK RUBBER TAIL HOUSING MOUNT (NOT INCLUDED).

    • FEATURES:

    • TRIM-TO-FIT TO FIT YOUR CUSTOM APPLICATION
    • ADJUSTABLE END CAPS THAT ADAPT TO FRAME RAIL SPACINGS FROM 26" TO 36"
    • MADE FROM HEAVY GAUGE TUBULAR STEEL TUBING
    • INCLUDES MOUNTING HARDWARE PICTURED
    • CHROME-PLATED

    CROSSMEMBER SPECS:

    • FITS FRAME RAILS 26" TO 36" INSIDE TO INSIDE
    • CENTER TUBE LENGTH END TO END: 30-3/8"
    • END CAPS: 4-3/8" LONG PER SIDE
    • CROSSMEMBER TUBE OUTSIDE DIAMETER: 1-5/8"
    • CROSSMEMBER TUBE INSIDE DIAMETER: 1-3/8"
    • END CAPS OUTSIDE DIAMETER: 1-7/8"
    • END CAPS INSIDE DIAMETER: 1-3/4"

    MOUNTING HARDWARE SPECS:

    • TWO MOUNTING BOLTS WITH, LOCK WASHERS & FLAT WASHERS, CENTER CROSSMEMBER TO TAIL HOUSING MOUNT
    • TWO MOUNTING BOLTS WITH NUTS & LOCK WASHERS, CENTER CROSSMEMBER TO END CAPS
    • FOUR MOUNTING BOLTS WITH NUTS & LOCK WASHERS, END CAPS TO FRAME RAILS

    APPLICATIONS:

    • 1947-1959 CHEVY TRUCK
    • 1947-1959 GMC TRUCK
