TRANSMISSION CROSSMEMBER,55-57 CHEVY,CHROME

TRANSMISSION CROSSMEMBER,55-57 CHEVY,CHROME

400-7085

$149.99
$149.99
This item requires an additional shipping fee of $5.00 over standard shipping.
View full details

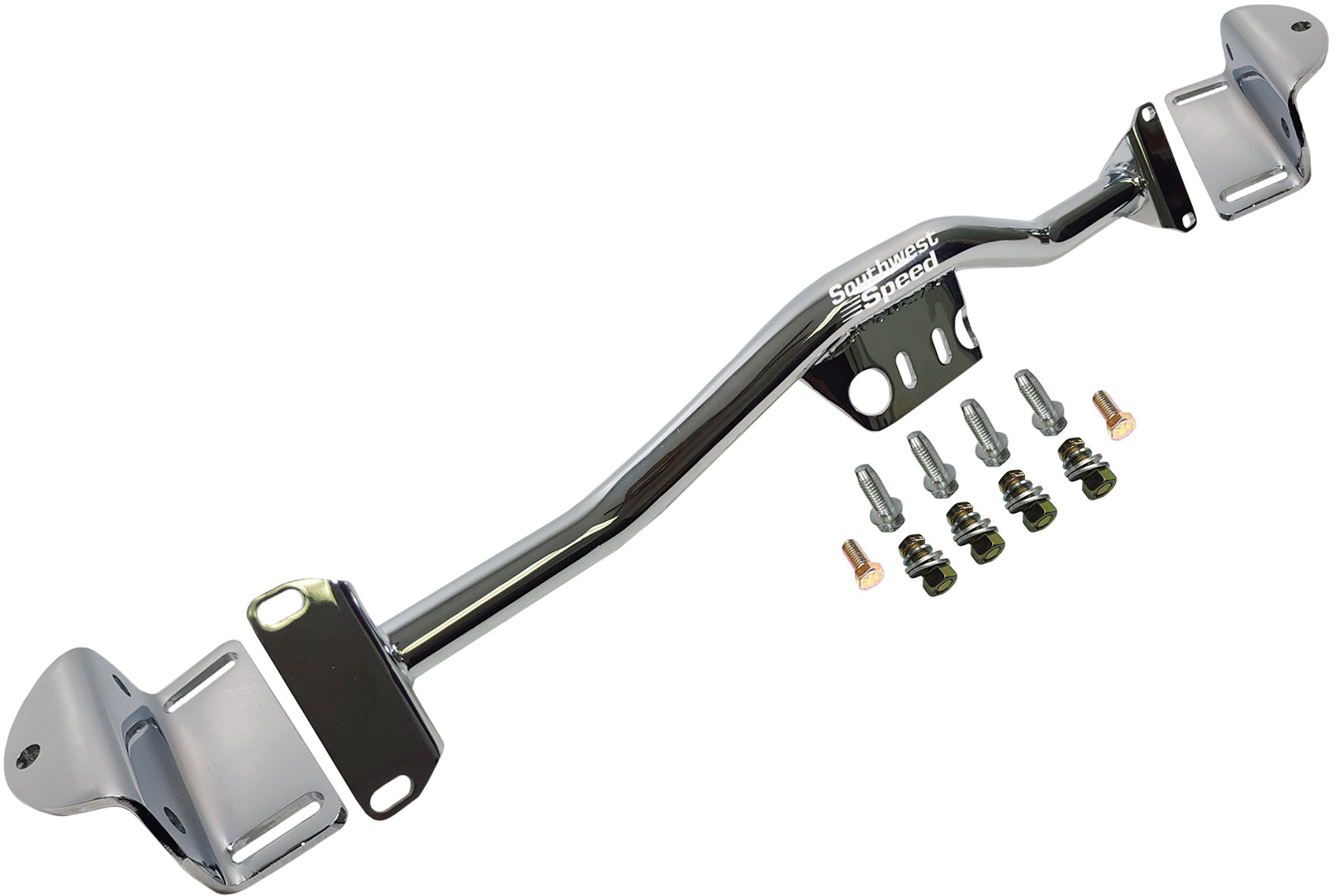

  • BRAND NEW SOUTHWEST SPEED CHROME-PLATED BOLT-IN TUBULAR TRANSMISSION CROSSMEMBER.

  • THIS SOUTHWEST SPEED BOLT-IN TUBULAR TRANSMISSION CROSSMEMBER IS FOR INSTALLING A POWERGLIDE, TH350, TH400, OR 700R4 AUTOMATIC TRANSMISSION IN A 1955, 1956, 1957 CHEVROLET 150, 210, DELRAY, BELAIR, SEDAN DELIVERY, & NOMAD. UNFORTUNATELY, IT WILL NOT WORK WITH ANY OF THE CONVERTIBLE FRAMES THAT HAVE THE X-BRACED FRAME, THAT ENCASES THE DRIVE SHAFT. THIS CROSSMEMBER WILL ALSO WORK WITH GM MANUAL TRANSMISSIONS INCLUDING LATER MODEL MUNCIE & SAGINAW, 3 & 4 SPEED MANUAL TRANSMISSIONS AND ALLOWS THE USE OF BELLHOUSINGS THAT DO NOT HAVE THE REAR ENGINE MOUNTS ON THE BOTTOM OF THE BELLHOUSING. THIS IS EXTREMELY HELPFUL WHEN YOU ARE TRYING TO INSTALL NEWER MODEL ENGINE AND TRANSMISSION COMBINATIONS IN THE 55-57 CHEVY. THIS CROSSMEMBER MOVES THE REAR ENGINE/TRANSMISSION MOUNTING LOCATION FROM THE BOTTOM OF THE BELLHOUSING TO THE TAIL HOUSING ON THE TRANSMISSION AND WILL WORK WITH EITHER THE STOCK RUBBER OR URETHANE TAIL HOUSING MOUNTS TO ISOLATE VIBRATIONS. THIS IS NT A UNIVERSAL FIT UNIT. THIS IS A DIRECT BOLT-IN AND ALSO INCREASES EXHAUST PIPE CLEARANCE IN CRITICAL AREAS.

    • FEATURES:

    • ADJUSTABLE MOUNTING BRACKETS
    • MADE FROM HEAVY GAUGE STEEL TUBING
    • INCLUDES ALL HARDWARE TO MOUNT CROSSMEMBER
    • CHROME-PLATED

    CROSSMEMBER SPECS:

    • CENTER CROSSMEMBER OVERALL WIDTH 32"
    • CROSSMEMBER TUBE OUTSIDE DIAMETER: 1-1/2"

    MOUNTING HARDWARE SPECS:

    • TWO CHROME-PLATED OFFSET FRAME RAIL MOUNTING BRACKETS
    • TWO BOLTS & WASHERS, CENTER CROSSMEMBER TO TAIL HOUSING MOUNT
    • FOUR SELF-TAPPING BOLTS, OFFSET BRACKETS TO FRAME RAILS
    • FOUR LONG MOUNTING BOLTS WITH NUTS & WASHERS, CROSSMEMBER TO OFFSET BRACKETS

    APPLICATIONS:

    • 1955-1957 BEL AIR
    • 1955-1957 CHEVY 150
    • 1955-1957 CHEVY 210
    • 1955-1957 CHEVY 210 DELRAY
    • 1955-1957 NOMAD
    • 1955-1957 SEDAN DELIVERY
