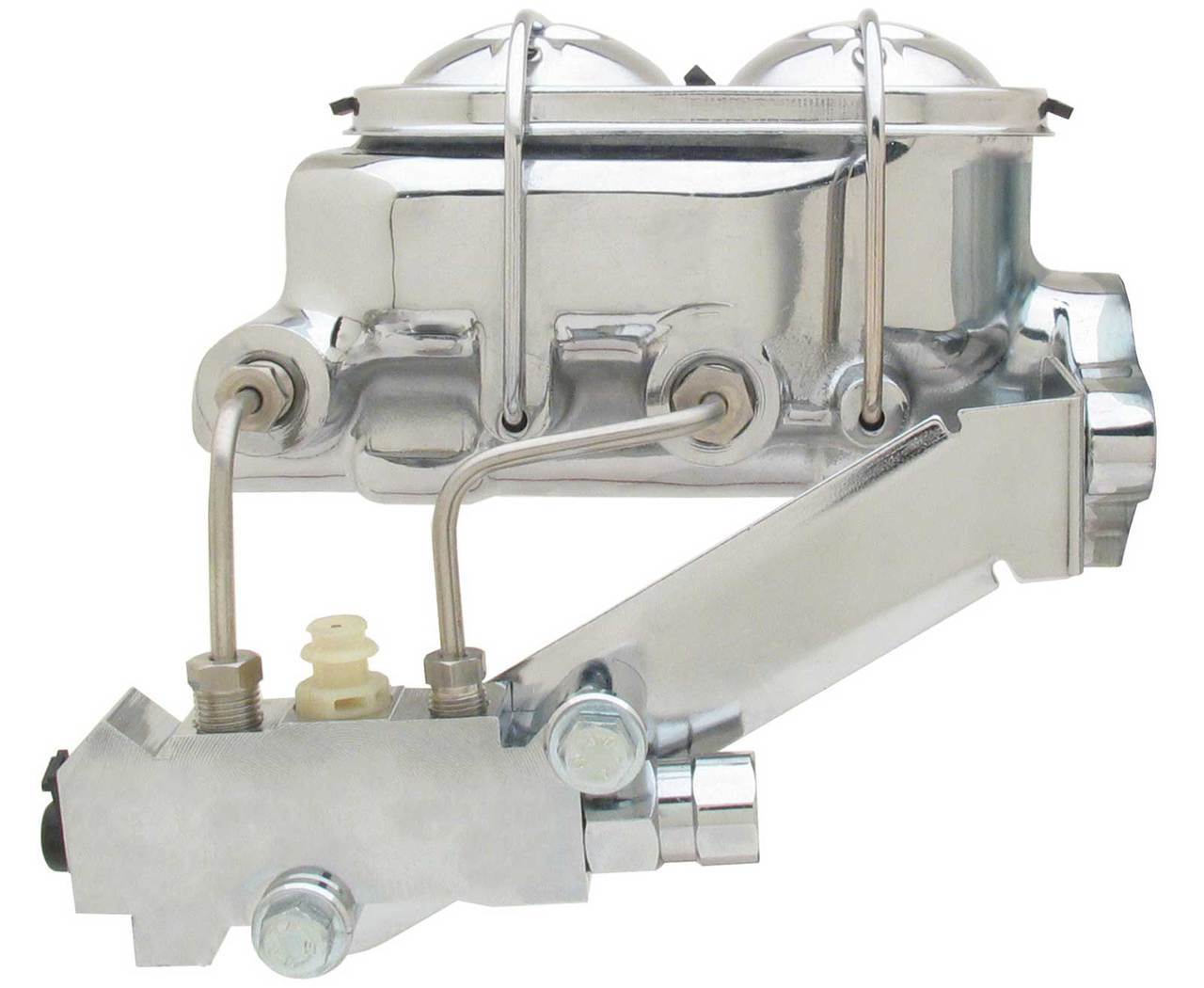

MASTER CYLINDER & PROPORTIONING VALVE,POLISHED ALUMINUM,LEFT,1" DIAMETER

Brand New 1" Polished Aluminum Tandem Chamber Master Cylinder & Proportioning Valve Kit with Mounting Bracket & Lines, Driver's Side Mount, No Pushrod (Part #300-8061).

This lightweight aluminum cylinder features a bright polished finish, giving it a show-car appearance. It offers a simple bolt-on installation on many original equipment (OE) mounts, including popular patterns from Chrysler, Corvette, GM, and Ford Mustang. The cylinder's slotted 2-bolt mounting flange can accept either 3/8" or 10mm bolts, allowing for mounting to center-to-center patterns of 3 1/8", 3 1/4", or 3 3/8".

Kit Includes:

• Tandem Chamber Master Cylinder:

  • 1" bore cylinder without the pushrod
  • Height from center line to the top most point on the retaining bar is approximately 3 1/2"

  • Measures 8 3/4" from mount surface to front of cylinder body

  • Features a deep piston design and includes a piston adapter that allows it to be used for manual or power applications

• Proportioning Valve:

  • Engineered to ensure that the proper amount of pressure is sent to the rear wheels when the brakes are applied

  • 100% tested to ensure long lasting reliable performance

• Steel Fluid Tubes:

  • Precision bent with preinstalled tube nuts for a simple bolt-on installation

• Valve Mounting Bracket:
  • Valve on the left (driver's side) of the cylinder
