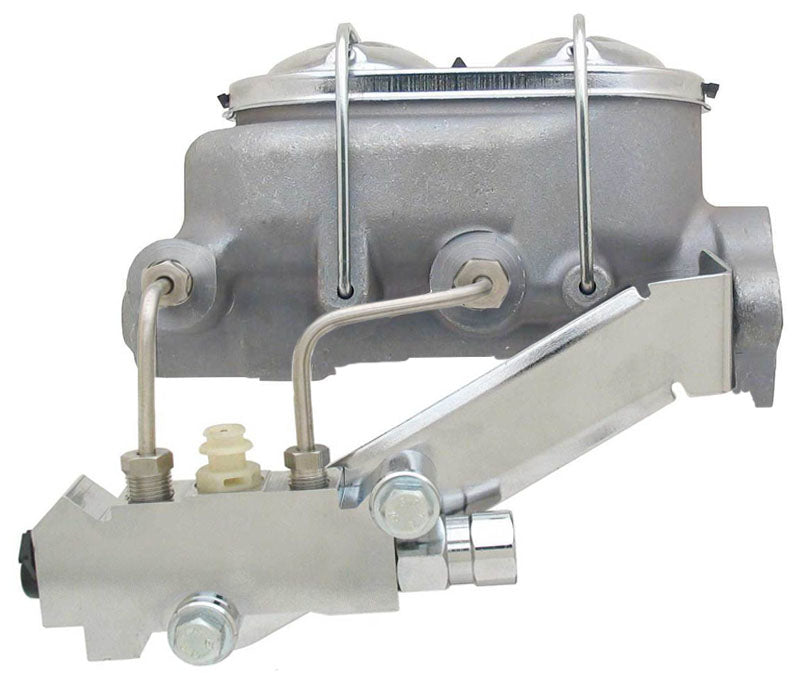

MASTER CYLINDER & PROPORTIONING VALVE,ALUMINUM,LEFT,1" DIAMETER

Brand New 1" Aluminum Tandem Chamber Master Cylinder & Proportioning Valve Kit with Mounting Bracket & Lines, Driver's Side Mount, No Pushrod (Part #300-8055).

This master cylinder features a lightweight aluminum construction, making it a suitable choice for various applications. It can be easily bolted onto many original equipment (OE) mounts, including those found on popular vehicles such as Chrysler, Corvette, GM, and Ford Mustang, which share common bolt patterns. The 2 bolt mounting flange is designed to accept 3/8" and 10mm bolts, providing flexibility in terms of compatibility. Additionally, it can be mounted to center-to-center patterns with spacings of 3 1/8", 3 1/4", or 3 3/8".

Kit Includes:

• Tandem Chamber Master Cylinder:

  • 1" bore cylinder without the pushrod
  • Height from center line to the top most point on the retaining bar is approximately 3 1/2"

  • Measures 8 3/4" from mount surface to front of cylinder body

  • Features a deep piston design and includes a piston adapter that allows it to be used for manual or power applications

• Proportioning Valve:

  • Engineered to ensure that the proper amount of pressure is sent to the rear wheels when the brakes are applied

  • 100% tested to ensure long lasting reliable performance

• Steel Fluid Tubes:

  • Precision bent with preinstalled tube nuts for a simple bolt-on installation

• Valve Mounting Bracket:
  • Valve on the left (driver's side) of the cylinder
