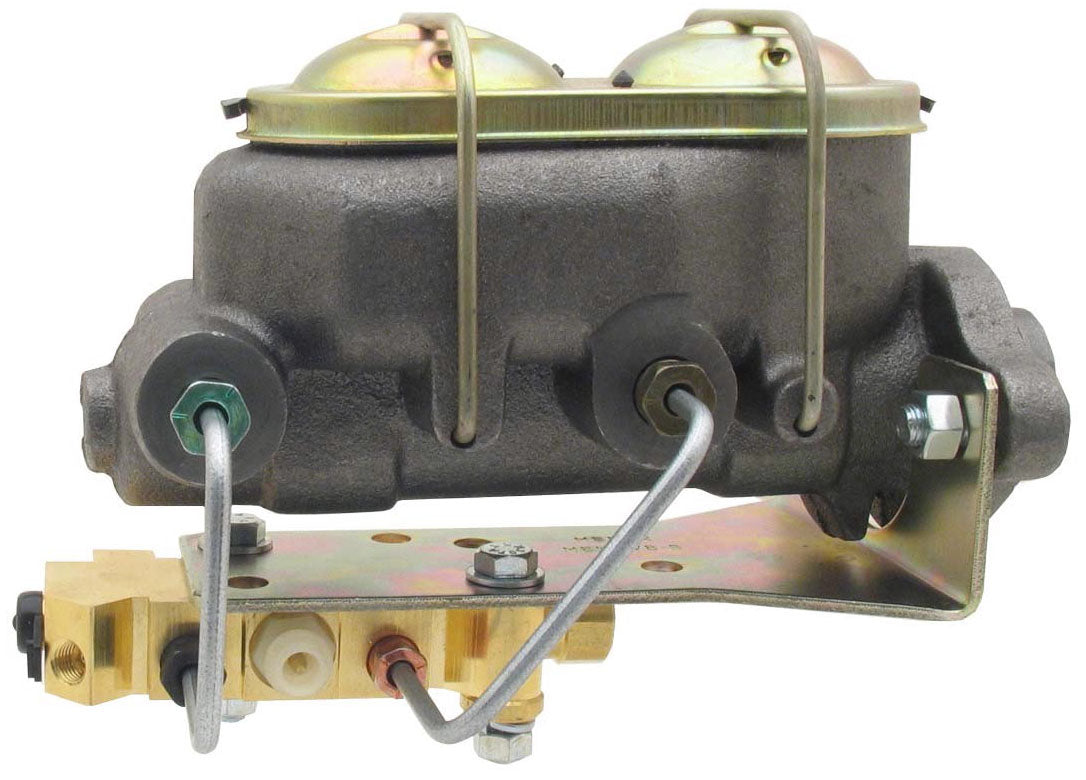

MASTER CYLINDER & PROPORTIONING VALVE SET,BOTTOM,1" DIAMETER

Brand New 1" Bore Tandem Chamber Master Cylinder & Proportioning Valve Kit with Mounting Bracket & Lines, Bottom Mount, No Pushrod (Part #300-8050).

This master cylinder is designed to seamlessly integrate with your vehicle's existing design, maintaining the stock look and aesthetic. It features a simple bolt-on installation process, allowing it to be easily attached to many original equipment (OE) mounts, including those commonly found on popular vehicles such as Chrysler, Corvette, GM, and Ford Mustang. The 2 bolt mounting flange is designed to accept 3/8" and 10mm bolts, providing flexibility in terms of compatibility. Additionally, it can be mounted to center-to-center patterns with spacings of 3 1/8", 3 1/4", or 3 3/8".

Kit Includes:

• Tandem Chamber Master Cylinder:

  • 1" bore cylinder without the pushrod
  • Height from center line to the top most point on the retaining bar is approximately 3 1/2"

  • Measures 8 3/4" from mount surface to front of cylinder body

  • Features a deep piston design and includes a piston adapter that allows it to be used for manual or power applications

• Proportioning Valve:

  • Engineered to ensure that the proper amount of pressure is sent to the rear wheels when the brakes are applied

  • 100% tested to ensure long lasting reliable performance

• Steel Fluid Tubes:

  • Precision bent with preinstalled tube nuts for a simple bolt-on installation

• Valve Mounting Bracket:
  • Valve on the bottom of the cylinder
