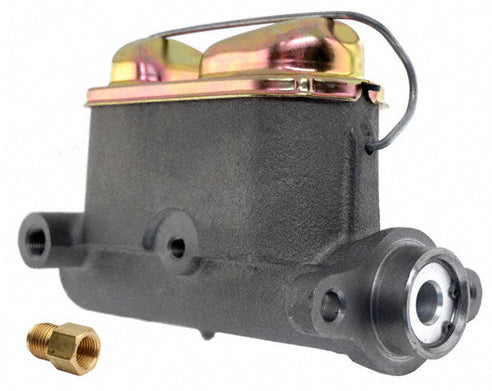

MASTER CYLINDER,3/8,1/2,9/16 LEFT,1 1/4"

MASTER CYLINDER,3/8,1/2,9/16 LEFT,1 1/4"

300-8022

$59.99
$59.99
View full details
  • 1 1/4" BORE TANDEM MASTER CYLINDER WITHOUT THE PUSH ROD
  • SLOTTED 2 BOLT MOUNTING FLANGE ACCEPTS 3/8" & 10MM BOLTS, AND ALLOWS FOR MOUNTING TO 3 1/8", 3 3/16", AND 3 1/4" CENTER-TO-CENTER PATTERNS
  • HEIGHT FROM CENTER LINE TO THE TOP MOST POINT ON THE RETAINING BAR IS APPROXIMATELY 4 1/2"
  • MEASURES 8 1/4" FROM MOUNT SURFACE TO FRONT OF CYLINDER BODY
  • FEATURES BOTH PORTS ON THE LEFT (DRIVERS) SIDE WITH A 3/8"-24 INVERTED FLARE PORT IN THE REAR & A 9/16" PORT IN THE FRONT; THIS INCLUDES AN ADAPTER TO TAKE THAT FRONT PORT TO A 1/2" AS WELL
  • FEATURES A DEEP PISTON DESIGN
    • Master Cylinders > Dual Outlet (Tandem) Cylinders > Southwest Speed Tandem Cylinders
