POWER BRAKE BOOSTER,11" DIAMETER SINGLE,67-74 GM A-BODY,GM F-BODY,X-BODY,CHROME

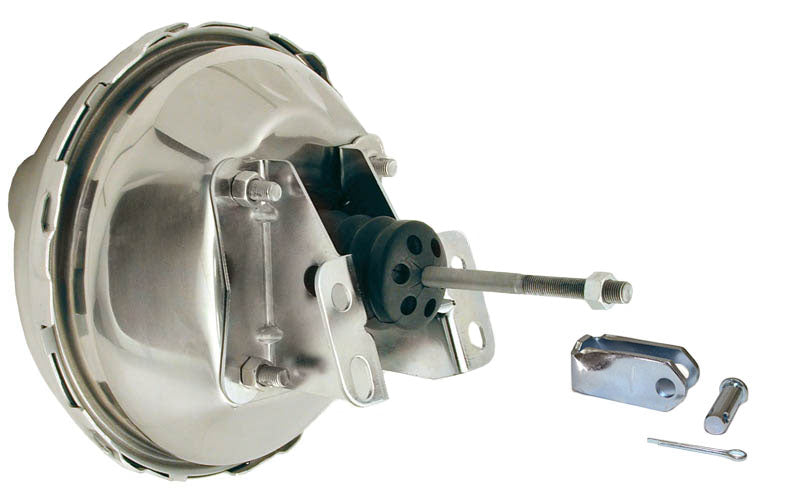

Brand New Chrome 11" Single Diaphragm Power Brake Booster (Part #300-7975).

This brake booster includes the necessary brackets and hardware to bolt directly to the firewall of vehicles such as the 1968-1974 Chevy II / Nova, 1967-1972 Cutlass, 1967-1969 Firebird, and other 1967-1972 GM A-body, 1967-1969 GM F-body, or 1968-1974 X-Body cars.

Fits:

• Chevrolet:
  • 1967-1969 Camaro
  • 1967-1972 Chevelle
  • 1968 Chevy II
  • 1967-1972 El Camino
  • 1967-1972 Malibu
  • 1967-1972 Monte Carlo
  • 1969-1974 Nova
• Buick:
  • 1973-1974 Apollo
  • 1967-1972 Regal
  • 1967-1972 Skylark
  • 1967-1972 Special
  • 1967-1972 Sportwagon
• Oldsmobile:
  • 1967-1972 442
  • 1967-1972 Cutlass
  • 1967-1972 F85
  • 1973-1974 Omega
  • 1967-1972 Vista Cruiser
• Pontiac:
  • 1967-1969 Firebird
  • 1967-1972 Grand Prix
  • 1967-1972 GTO
  • 1967-1972 Lemans
  • 1967-1972 Tempest
  • 1971-1974 Ventura


Features:

• 11" Single diaphragm, delco-moraine style booster
• Includes the brackets to bolt directly to the firewall of the vehicle
• The rear brackets have a 4 bolt mounting pattern that measures 3 3/8" side-to-side (measured center-to-center)

• The bottom holes are slotted, so it will accept top-to-bottom patterns from 1 3/16" to 1 3/8" (measured center-to-center) and accept 3/8" bolts
• 2 Master cylinder mounting studs are 3/8"-18 and measure 3 3/8" center-to-center
• Includes clevis, push rod extension, nuts, washers, and dust boot
