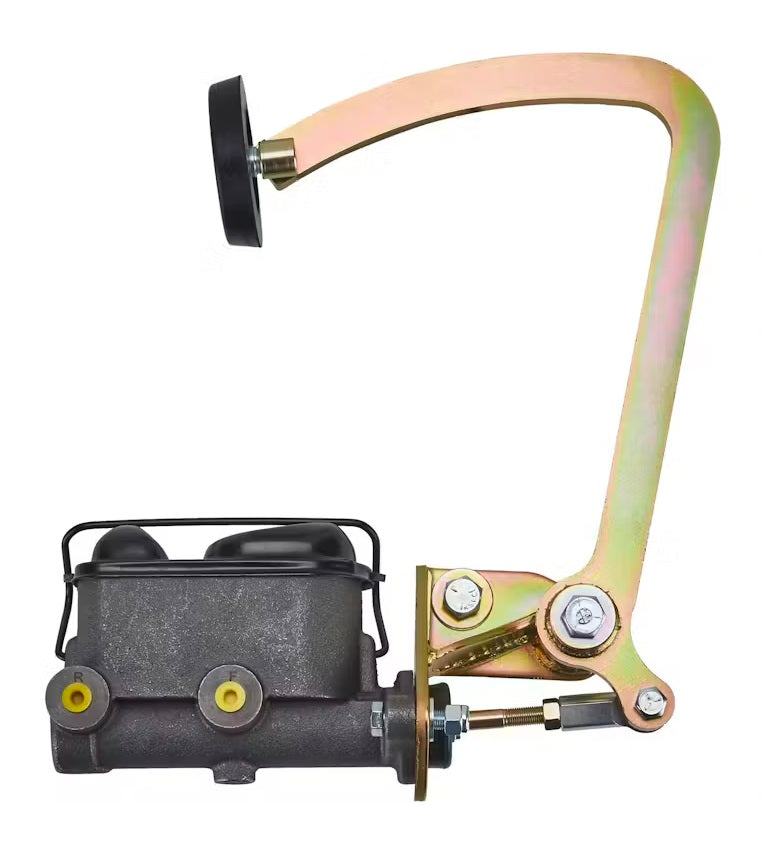

PEDAL ASSEMBLY,UNDER FLOOR,28-32 FORD,W/MASTER CYLINDER

Brand New Southwest Speed Brake Pedal Assembly & Master Cylinder for 1928-1932 Ford. (Part #300-7829).

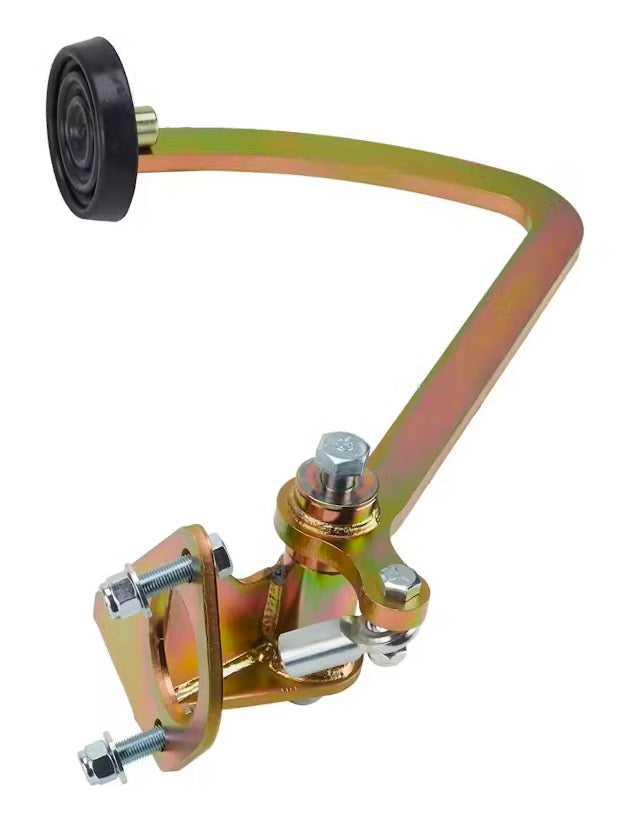

Designed for a clean and simple install onto Model A and 1932 Ford frame. The included 1" bore master cylinder is suitable for 4-wheel disc or disc/drum brake setups. The outlet ports are 3/8"-24 IFF. The bracket can be bolted or welded to the left frame rail (boxed or stock). Kit includes a dual feed master cylinder, frame bracket, and a steel pedal arm with pad that can be easily modified for driver comfort.

Note: Will not work in conjunction with the factory clutch pedal. Intended for use with an Automatic Transmission.

Compatible with:

• 1928-1931 Model A
• 1928-1932 Sedan Delivery
• 1932 Model B
• 1932 Model BB
• 1932 Model 18
• 1932 1/2 Ton Pickup
• 1932 3/4 Ton Pickup
• 1932 1 Ton Pickup

Features:

• Designed for a clean and simple install

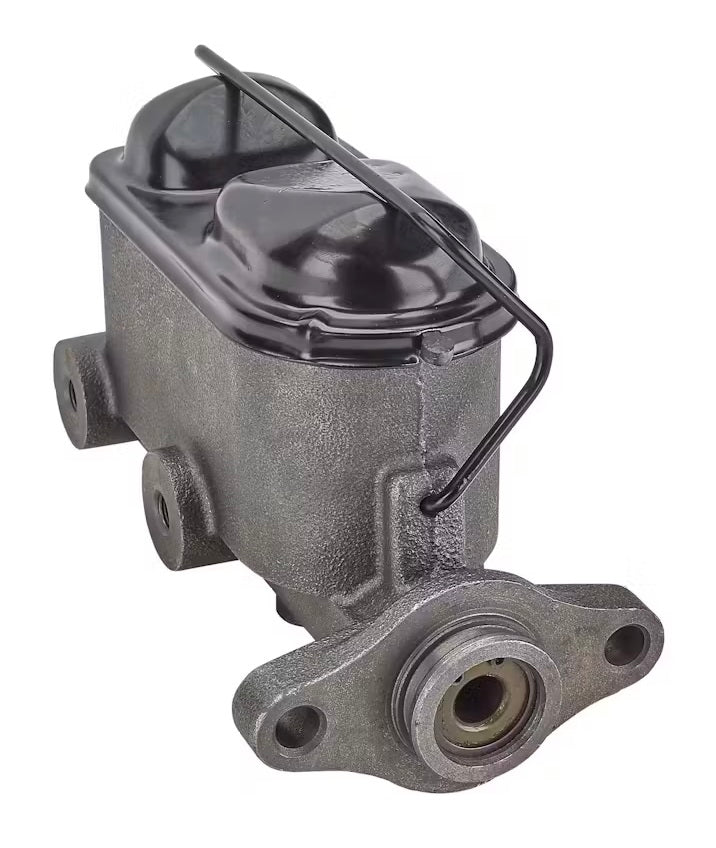

• 1" bore remanufactured master cylinder is suitable for 4-wheel disc or disc/drum brake setups
• Kit includes a dual feed master cylinder, frame bracket, and a steel pedal arm w/ pad
• Brake lever can easily be modified for driver comfort
• Intended for use with an automatic transmission

Specs:

• Both fluid outlets are 3/8" -24 Inverted flare female.
• Overall Height of Pedal: 11" (from the center of the pivot)
• Pedal Ratio: 6:1
• Frame bracket is 4" front-to-back, 4-1/2" tall, and 3-1/4" from top of bracket down to centerline of master cylinder mount
• From where master cylinder bolts to the bracket to the end of the master cylinder is 7”
• Master Cylinder Overall Height: 5”
• From the mounting holes to the top is 4-1/4”
