POWER BRAKE BOOSTER,POLISH ALUM MASTER CYLINDER,BOTTOM PROP VALVE,1 1/8",64-66 G

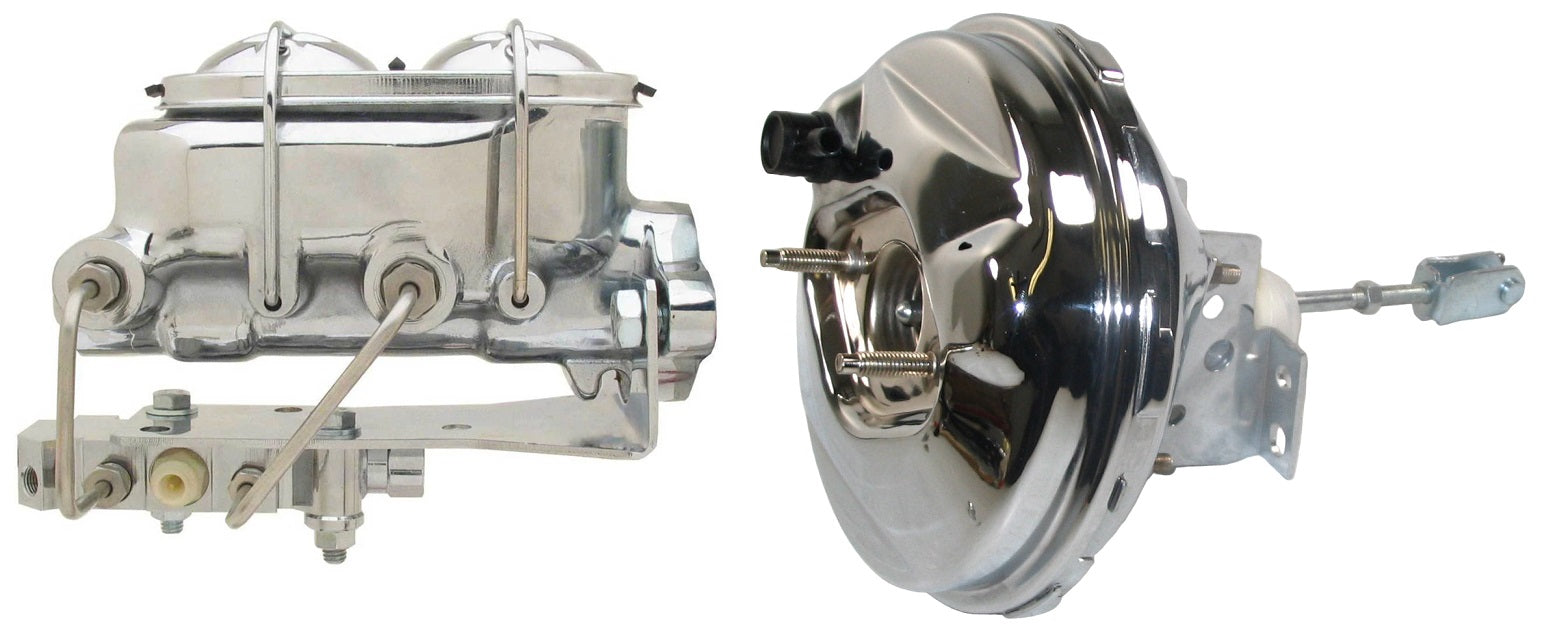

Brand New Power Brake Booster, 1 1/8" Bore Polished Aluminum Tandem Chamber Master Cylinder, Proportioning Valve, Mounting Bracket, & Lines for Bottom Mount (Part #300-60499).

This kit features a single diaphragm brake booster, tandem chamber master cylinder, and proportioning valve kit. The mounting brackets in the rear have a 4-bolt pattern with a side-to-side measurement of 3 3/8 inches, and a slotted top-to-bottom measurement of 1 3/16 inches to 1 3/8 inches (measured center-to-center). The brackets accept 3/8" mounting bolts. This particular kit is typically used on vehicles with front discs and rear drums. We also have kits for disc/disc applications.

Fits:

• Buick:

  • 1964-1966 Skylark

  • 1964-1966 Special

  • 1964-1966 Sportwagon

• Chevrolet:

  • 1964-1966 Chevelle

  • 1964-1966 El Camino

  • 1964-1966 Malibu
• Oldsmobile:

  • 1964-1966 Cutlass

  • 1964-1966 442

  • 1964-1966 F85

  • 1964-1966 Vista Cruiser

• Pontiac:

  • 1964-1966 LeMans

  • 1964-1966 GTO

  • 1964-1966 Tempest

Includes:

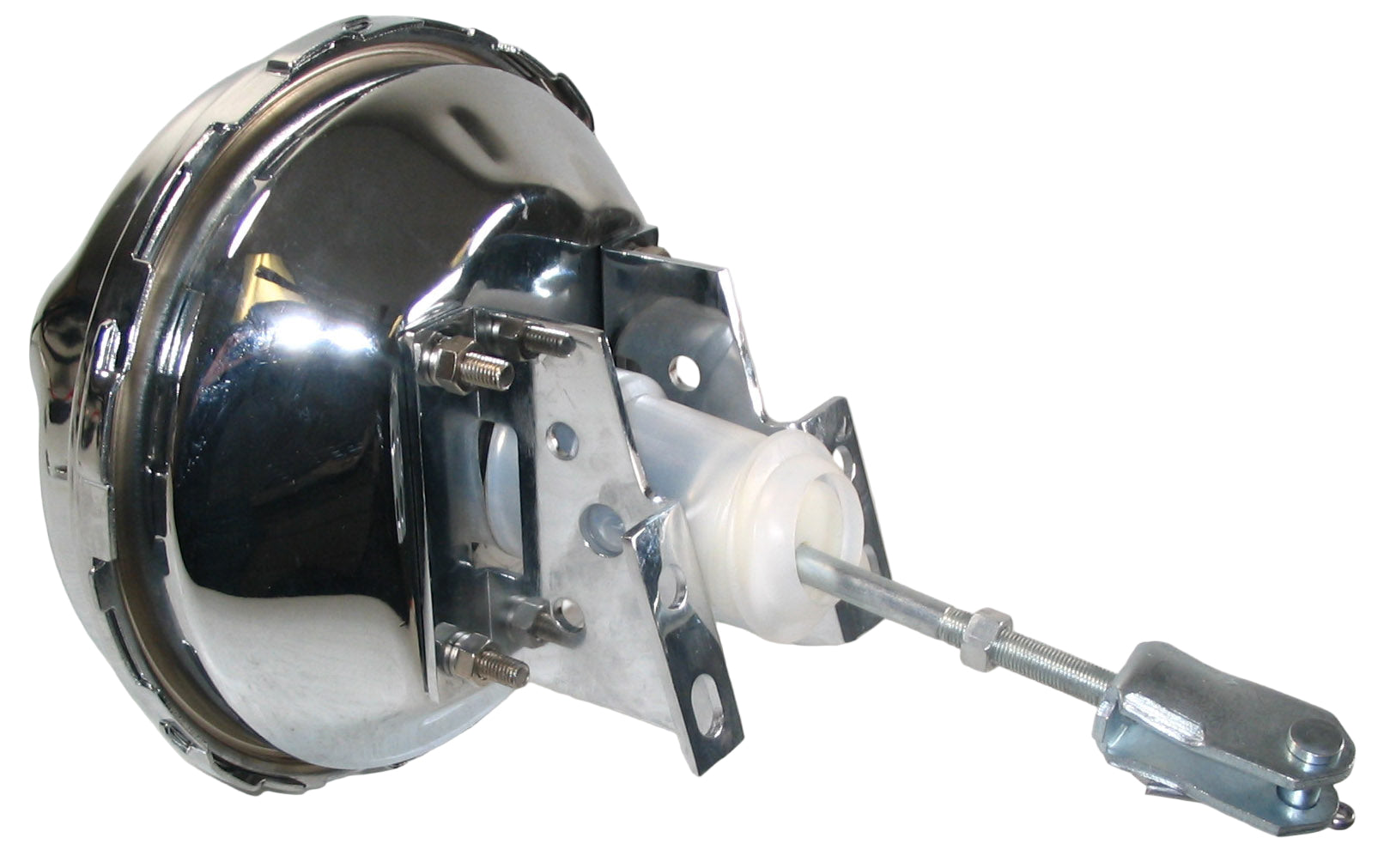

• Southwest Speed Chrome Power Brake Booster:

  • 9" single diaphragm booster

  • Delco-style booster

  • Brackets to mount the booster directly to the firewall
  • Includes clevis and rod extension

• Tandem Chamber Master Cylinder:

  • Measures 8 3/4" from mount surface to front of cylinder body

  • Features a deep piston design & includes a piston adapter that allows it to be used for manual or power applications

• Proportioning Valve:

  • Engineered to ensure that the proper amount of pressure is sent to the rear wheels when the brakes are applied

  • 100% tested to ensure long lasting reliable performance

• Steel Fluid Tubes:

  • Precision bent with preinstalled tube nuts for a simple bolt-on installation

• Valve Mounting Bracket:
  • Valve on the bottom of the cylinder
