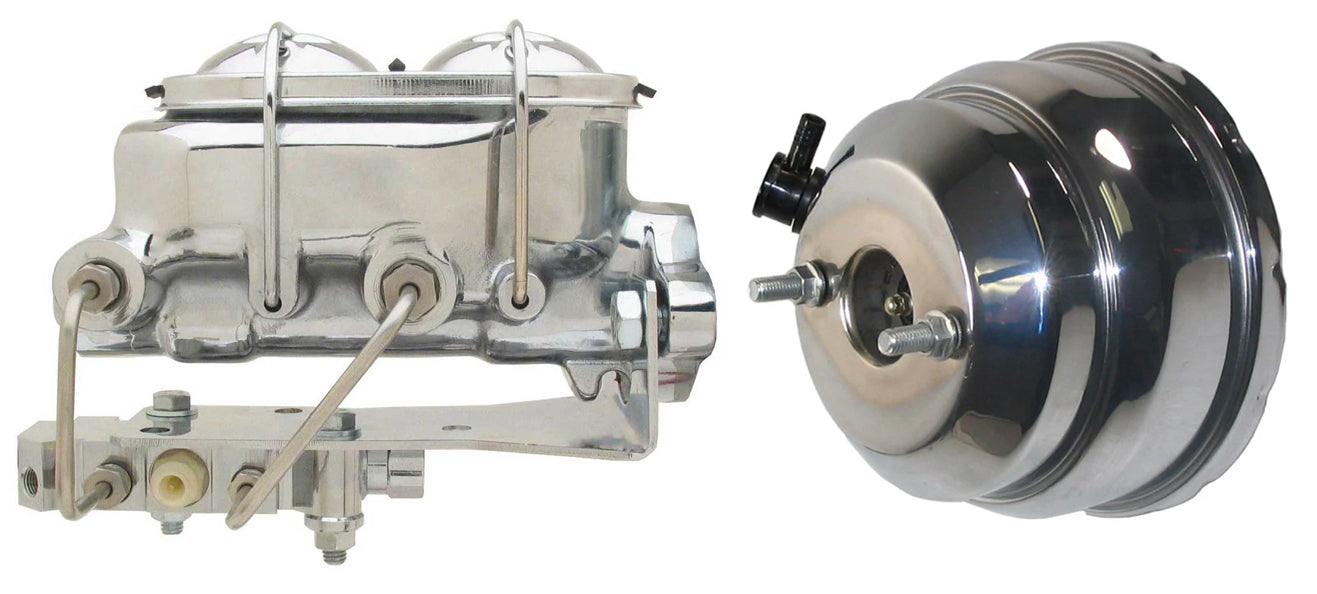

POWER BRAKE BOOSTER,8" DUAL,POLISHED ALUM MASTER CYLINDER,& BOTTOM PROP VALVE,1"

Brand New 8" Dual Diaphragm Power Brake Booster, 1" Bore Polished Aluminum Tandem Chamber Master Cylinder, Proportioning Valve, Mounting Bracket, & Lines for Bottom Mount (Part #300-60097).

This set has a universal mounting pattern on the back that can be adapted to many firewalls. The 4-bolt square pattern has 5/16"-20 bolts that measure 3 3/8" center-to-center on both top-to-bottom and side-to-side. This particular kit is typically used on vehicles with front discs and rear drums. We also have kits for disc/disc applications.

Includes:

• Southwest Speed Chrome Power Brake Booster:

  • 8" dual diaphragm booster

  • Measures 5 1/4" from the rear mounting face to the master cylinder mounting face

• Tandem Chamber Master Cylinder:

  • Height from center line to the top most point on the retaining bar is approximately 3 1/2"

  • Measures 8 3/4" from mount surface to front of cylinder body

  • Features a deep piston design and includes a piston adapter that allows it to be used for manual or power applications
• Proportioning Valve:

  • Engineered to ensure that the proper amount of pressure is sent to the rear wheels when the brakes are applied

  • 100% tested to ensure long lasting reliable performance

• Steel Fluid Tubes:

  • Precision bent with preinstalled tube nuts for a simple bolt-on installation

• Mounting Bracket:
  • Valve on the bottom of the cylinder
