64-72 A-BODY DISC BRAKE & 1-PIECE 2" DROP SPINDLE KIT,11" DRILLED ROTORS,BLACK

64-72 A-BODY DISC BRAKE & 1-PIECE 2" DROP SPINDLE KIT,11" DRILLED ROTORS,BLACK

205-2117

$799.99
$799.99
This item requires an additional shipping fee of $20.00 over standard shipping.
View full details
  • BRAND NEW SOUTHWEST SPEED 2" DROP SPINDLE & 10 1/2" DISC BRAKE KIT WITH WILWOOD CALIPERS (PART #205-2117) FOR BOTH FRONT WHEELS.

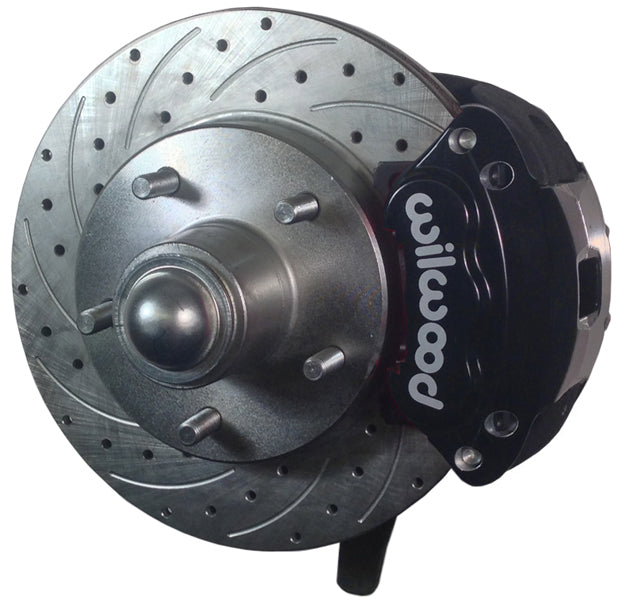

  • ONLY ONE SIDE PICTURED TO THE RIGHT. SEE THE LIST AND PICTURE BELOW FOR A DETAIL OF THE PARTS INCLUDED.

  • FEATURES DRILLED & SLOTTED ROTORS, AS WELL AS POWDER-COATED BLACK WILWOOD CALIPERS.

  • FITS:
    • CHEVROLET:
      • 1964-1972 CHEVELLE
      • 1964-1972 EL CAMINO
      • 1970-1972 MONTE CARLO WITH DISC BRAKE SPINDLES
    • GMC:
      • 1971-1972 SPRINT
    • BUICK:
      • 1965-1970 CENTURY
      • 1965-1972 GRAN SPORT
      • 1964-1972 SKYLARK
      • 1964-1972 SPECIAL
      • 1965-1972 SPORTSWAGON
    • OLDSMOBILE:
      • 1964-1972 CUTLASS
      • 1968-1972 CUTLASS CRUISER
      • 1964-1972 VISTA CRUISER
      • 1967-1972 4-4-2
      • 1964-1972 F85
    • PONTIAC:
      • 1964-1972 GTO
      • 1964-1972 LEMANS
      • 1964-1972 TEMPEST
      • 1969-1972 GRAND PRIX WITH DISC BRAKE SPINDLES
      • 1969 GRAND PRIX WITH DRUM BRAKE SPINDLES

  • SOUTHWEST SPEED SPINDLE AND BRAKE KITS CONSIST OF PRECISION ENGINEERED COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL.

  • SWS DROP SPINDLES PROVIDE A FULL 2" DROP, WHILE NOT CHANGING THE VEHICLES STEERING GEOMETRY. THEY WILL ACCEPT THE STOCK BALL JOINTS. WITH SOME BALL JOINTS, A SMALL AMOUNT OF GRINDING TO THE SPINDLES MAY BE NECESSARY TO ALLOW FULL STEERING CLEARANCE AND SUSPENSION TRAVEL.

  • THESE 1-PIECE ROTOR AND HAT KITS DELIVER THE COST EFFECTIVE COMBINATION FOR BRAKING POWER AND STYLE FOR AMERICAN MUSCLE CARS AND VINTAGE RODS. THEY ARE FULLY COMPATIBLE WITH OE MASTER CYLINDER OUTPUT. THEY PROVIDE SOLID BRAKE CAPACITY AND COMPLIMENTARY STYLE WITH WHEEL, TIRE, AND SUSPENSION UPGRADES ON ALL TYPES OF DAILY DRIVERS, RACE VEHICLES, AND ULTRA-STYLED SHOW MACHINES.

  • WILWOODS D154 1-PISTON CALIPERS ARE A LIGHTWEIGHT, HIGH-STRENGTH, EXTREME-DUTY ALTERNATIVE TO THE OE-STYLE CAST IRON CALIPERS. FORGED BILLET ALUMINUM BODIES, STAINLESS STEEL PISTONS, AND COMPETITION STYLE HIGH-TEMPERATURE SEALS PUT AN END TO THE RUST, BORE PITTING, AND SEAL FAILURES THAT PLAGUE THE OE CALIPERS. D154 CALIPERS PROVIDE LOW-MAINTENANCE PERFORMANCE AND A HUGE WEIGHT SAVINGS WITH HIGH TEMPERATURE RELIABILITY FOR THE STREET AND TRACK. THE 2.50" PISTON IN EACH CALIPER PROVIDES 4.90 SQUARE INCHES OF PISTON AREA PER CALIPER. THE KIT CONTAINS HARDENED SLIDE PINS AND WILWOOD BP-10 HIGH FRICTION PADS

  • THESE BRAKE KITS REQUIRE AT LEAST 14" DIAMETER WHEELS.

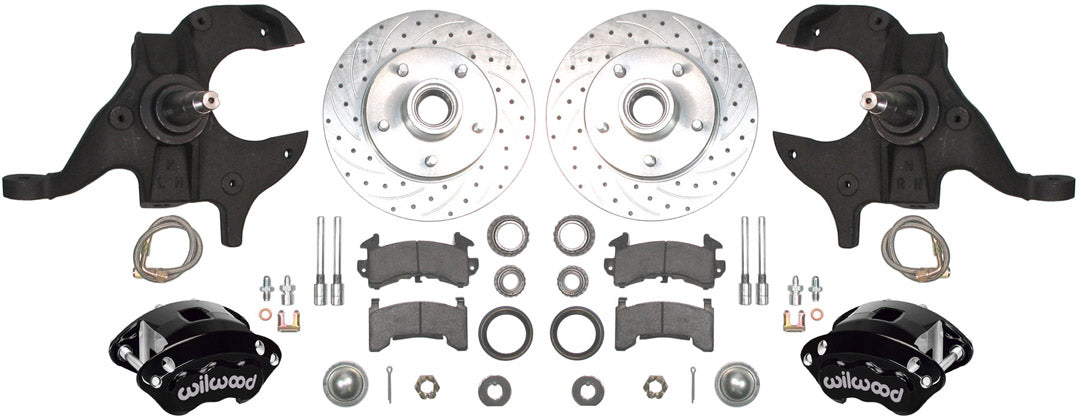

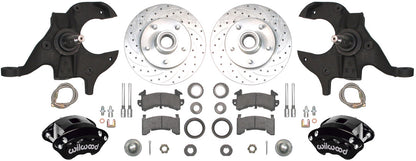

  • KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:
    • DRILLED & SLOTTED, 1.00" THICK X 10.50" O.D. 1-PIECE ROTORS/HATS
      • 5 X 4.75" BOLT PATTERN

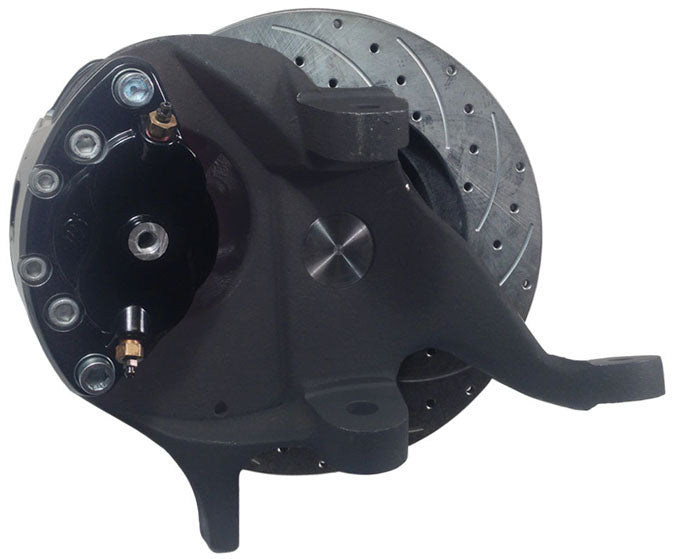

    • 2" DROP SPINDLES
      • STRONG 4140 STEEL CONSTRUCTION
    • WILWOOD D154 1-PISTON FORGED ALUMINUM CALIPERS - BLACK
      • 2.50" PISTON
    • WILWOOD BP-10 SMART COMPOUND BRAKE PADS
    • CALIPER SLIDE PIN BOLTS WITH SLEEVES
    • STEEL BRAIDED BRAKE LINE KIT WITH FITTINGS TO CONNECT TO CALIPERS AND CONNECT TO STOCK HARD LINES
    • WHEEL BEARINGS AND RACES
    • SEALS, WASHERS, NUTS, COTTER PINS, & DUST CAPS

  • COMPLETE KIT WEIGHS APPROXIMATELY 89 LBS.
