59-64 CHEVY DISC BRAKE & 2" DROP SPINDLE KIT,11" DRILLED ROTORS,RED WILWOOD

59-64 CHEVY DISC BRAKE & 2" DROP SPINDLE KIT,11" DRILLED ROTORS,RED WILWOOD

205-2078

$799.99
$799.99
This item requires an additional shipping fee of $20.00 over standard shipping.
View full details
  • BRAND NEW SOUTHWEST SPEED 2" DROP SPINDLE & 11" DISC BRAKE KIT WITH WILWOOD CALIPERS (PART #205-2078) FOR BOTH FRONT WHEELS.

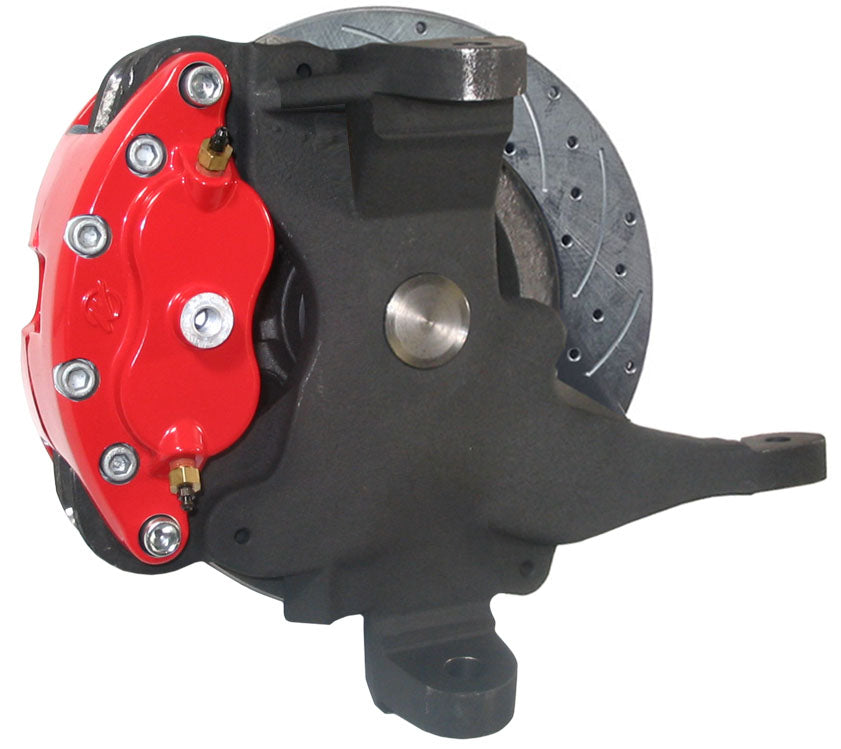

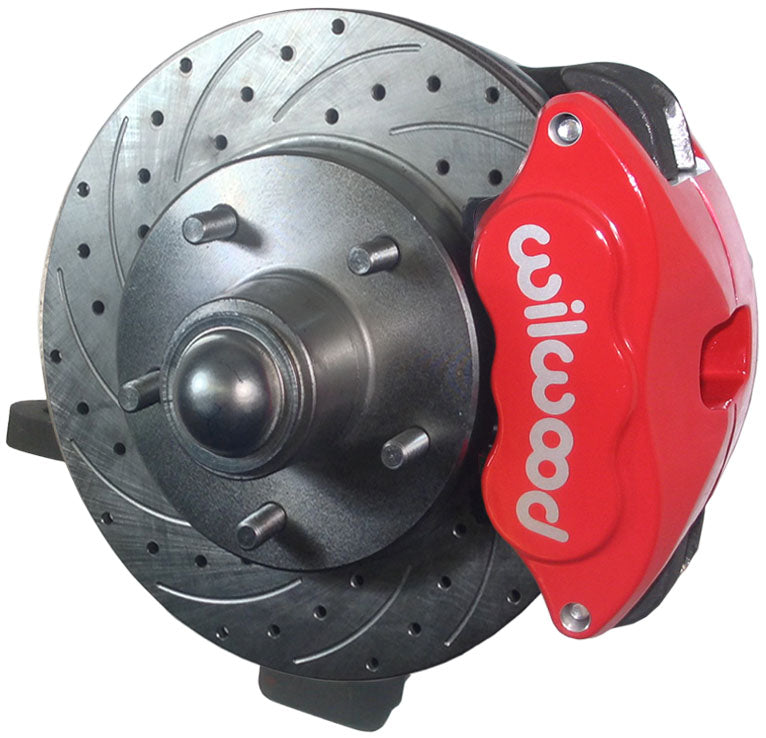

  • ONLY ONE SIDE PICTURED TO THE RIGHT. SEE THE LIST AND PICTURE BELOW FOR A DETAIL OF THE PARTS INCLUDED.

  • FEATURES DRILLED & SLOTTED ROTORS, AS WELL AS POWDER-COATED RED WILWOOD CALIPERS.

  • FITS:
    • 1959-1964 CHEVY BEL AIR, BISCAYNE, BROOKWOOD, EL CAMINO, IMPALA, KINGSWOOD, NOMAD, & SEDAN DELIVERY

  • SOUTHWEST SPEED SPINDLE AND BRAKE KITS CONSIST OF PRECISION ENGINEERED COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL.

  • SWS DROP SPINDLES PROVIDE A FULL 2" DROP, WHILE NOT CHANGING THE VEHICLES STEERING GEOMETRY. THEY WILL ACCEPT THE STOCK BALL JOINTS.

  • THESE 1-PIECE ROTOR AND HAT KITS DELIVER THE COST EFFECTIVE COMBINATION FOR BRAKING POWER AND STYLE FOR AMERICAN MUSCLE CARS AND VINTAGE RODS. THEY ARE FULLY COMPATIBLE WITH OE MASTER CYLINDER OUTPUT. THEY PROVIDE SOLID BRAKE CAPACITY AND COMPLIMENTARY STYLE WITH WHEEL, TIRE, AND SUSPENSION UPGRADES ON ALL TYPES OF DAILY DRIVERS, RACE VEHICLES, AND ULTRA-STYLED SHOW MACHINES.

  • WILWOODS D52 2-PISTON CALIPERS ARE A LIGHTWEIGHT, HIGH-STRENGTH, EXTREME-DUTY ALTERNATIVE TO THE OE-STYLE CAST IRON CALIPERS. FORGED BILLET ALUMINUM BODIES, STAINLESS STEEL PISTONS, AND COMPETITION STYLE HIGH-TEMPERATURE SEALS PUT AN END TO THE RUST, BORE PITTING, AND SEAL FAILURES THAT PLAGUE THE OE CALIPERS. D52 CALIPERS PROVIDE LOW-MAINTENANCE PERFORMANCE AND A HUGE WEIGHT SAVINGS WITH HIGH TEMPERATURE RELIABILITY FOR THE STREET AND TRACK. THE 2" PISTONS IN EACH CALIPER PROVIDES 6.28 SQUARE INCHES OF PISTON AREA PER CALIPER. THE KIT CONTAINS HARDENED SLIDE PINS AND WILWOOD BP-10 HIGH FRICTION PADS

  • THESE BRAKE KITS REQUIRE AT LEAST 14" DIAMETER WHEELS.

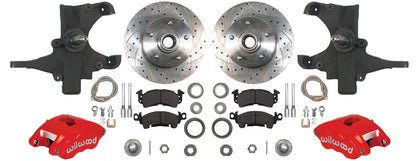

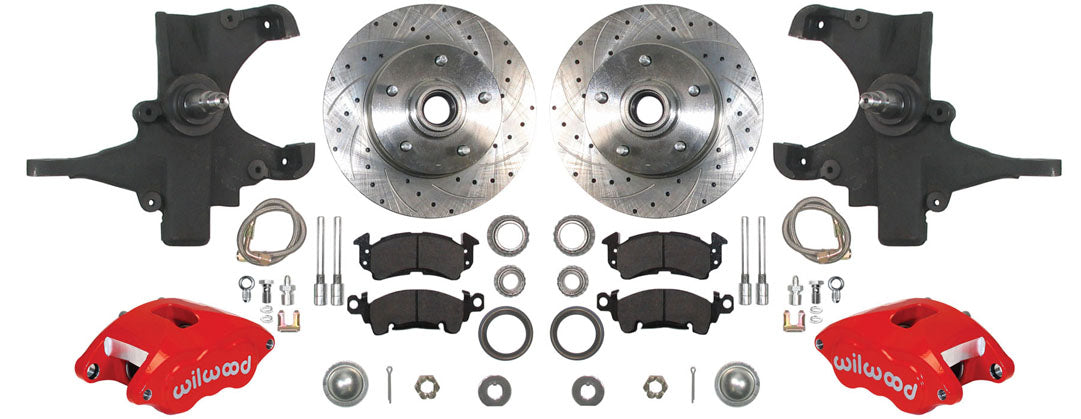

  • KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:
    • DRILLED & SLOTTED, 1.00" THICK X 11.00" O.D. 1-PIECE ROTORS/HATS
      • 5 X 4.75" BOLT PATTERN
    • 2" DROP SPINDLES
      • STRONG 4140 STEEL CONSTRUCTION
    • WILWOOD D52 2-PISTON FORGED ALUMINUM CALIPERS - RED
      • 2.00" PISTONS
    • WILWOOD BP-10 SMART COMPOUND BRAKE PADS
    • CALIPER SLIDE PIN BOLTS WITH SLEEVES
    • STEEL BRAIDED BRAKE LINE KIT WITH FITTINGS TO CONNECT TO CALIPERS AND CONNECT TO STOCK HARD LINES
    • WHEEL BEARINGS AND RACES
    • SEALS, WASHERS, NUTS, COTTER PINS, & DUST CAPS

  • COMPLETE KIT WEIGHS APPROXIMATELY 98 LBS.
