55-57 CHEVY DISC BRAKE CONVERSION KIT,11" ROTORS,D154 CALIPERS

• THIS KIT IS DESIGNED TO BOLT DIRECTLY ON THE ORIGINAL SPINDLES IN THE APPLICATIONS LISTED BELOW.

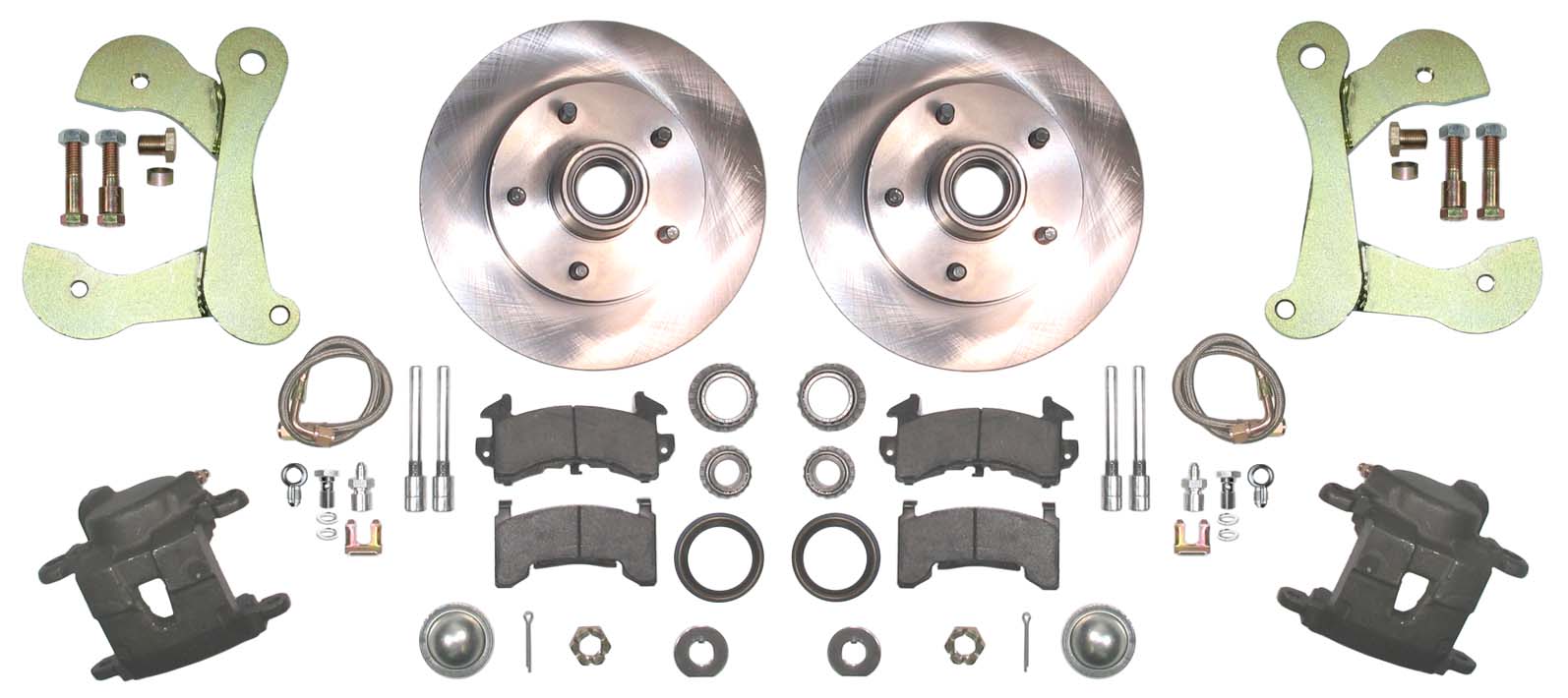

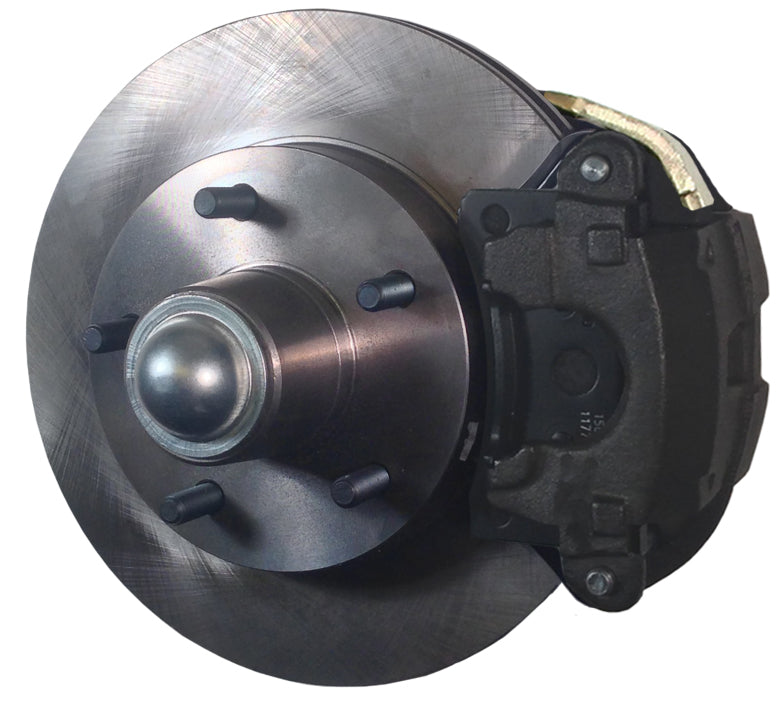

• ONLY ONE SIDE PICTURED ABOVE. SEE THE LIST AND PICTURE BELOW FOR A DETAIL OF THE PARTS INCLUDED.

FITS:

• CHEVY:
  • 1955-1957

• SOUTHWEST SPEED BRAKE KITS CONSIST OF PRECISION ENGINEERED COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL.

• THESE 1-PIECE ROTOR AND HAT KITS DELIVER THE COST EFFECTIVE COMBINATION FOR BRAKING POWER AND STYLE FOR AMERICAN MUSCLE CARS AND VINTAGE RODS. THEY ARE FULLY COMPATIBILITY WITH OE MASTER CYLINDER OUTPUT. THEY PROVIDE SOLID BRAKE CAPACITY AND COMPLIMENTARY STYLE WITH WHEEL, TIRE, AND SUSPENSION UPGRADES ON ALL TYPES OF DAILY DRIVERS, RACE VEHICLES, AND ULTRA-STYLED SHOW MACHINES.

• D154 1-PISTON CALIPERS PROVIDE HIGH-STRENGTH, EXTREME-DUTY BRAKING POWER. THEY ARE COMPLETELY BRAND NEW CAST STEEL CALIPERS; NOT REBUILT. D154 CALIPERS PROVIDE LOW-MAINTENANCE PERFORMANCE WITH HIGH TEMPERATURE RELIABILITY FOR THE STREET AND TRACK. THE 2.50" PISTON IN EACH CALIPER PROVIDES 4.90 SQUARE INCHES OF PISTON AREA PER CALIPER. THE KIT CONTAINS HARDENED SLIDE PINS AND SEMI-METALLIC, HIGH FRICTION PADS.

• THESE BRAKE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS.

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• 1.00" THICK X 11" O.D. 1-PIECE ROTORS/HATS
  • 5 X 4.75" BOLT PATTERN
  • 7/16" STUDS
• DISC BRAKE CALIPER BRACKETS
  • DESIGNED TO BOLT DIRECTLY TO THE ORIGINAL SPINDLES
• D154 1-PISTON CAST IRON CALIPERS
• SEMI-METALLIC, HIGH-FRICTION BRAKE PADS
• CALIPER SLIDE PIN BOLTS WITH SLEEVES
• STEEL BRAIDED BRAKE LINE KIT WITH FITTINGS TO CONNECT TO CALIPERS AND CONNECT TO STOCK HARD LINES
• WHEEL BEARINGS AND RACES
• SEALS, WASHERS, NUTS, COTTER PINS, & DUST CAPS
