FRONT DISC BRAKES,SPINDLES,KING PINS,28-48 FORD,WILWOOD D-154,11",RED

Brand New Southwest Speed GM Metric Disc Brake Kit for 1928-1948 Ford (#205-1303).

Install GM Metric brakes on your 1928-1948 Ford. Kit includes disc brakes, spindles, brake brackets, and necessary installation hardware. You can upgrade to chrome spindles for $99 more and/or add steering arms for $99 more. Just contact us and we can add those to your order.

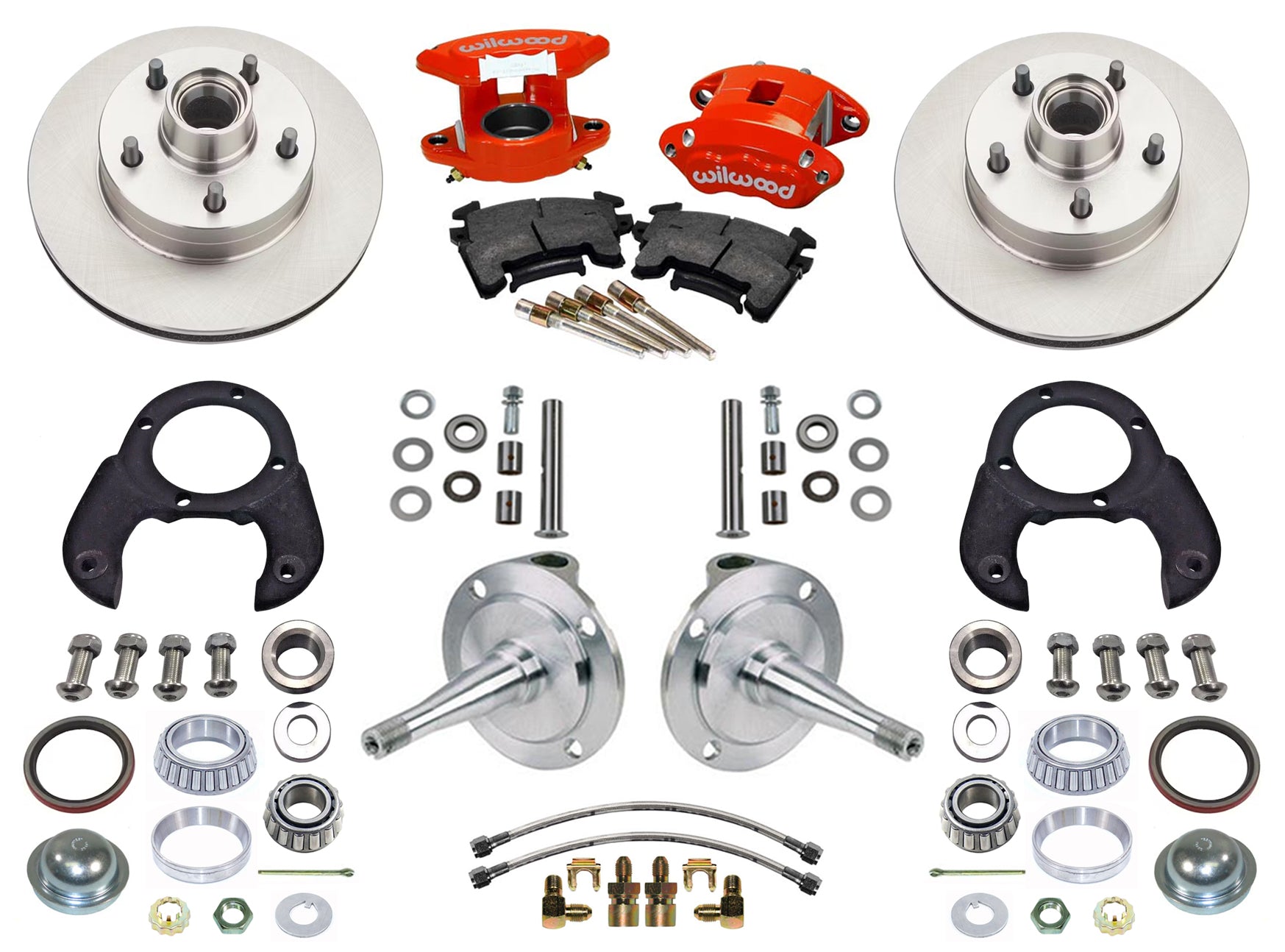

Includes:

• Wilwood D154 GM Metric Brake Caliper Kit (#140-12097-R):
  • Wilwood's D154 front caliper kit is a bolt-on 1 piston, lightweight, high-strength, extreme duty alternative to OE cast iron metric calipers.
  • The 2.50" piston in each caliper provides 4.90 square inches of piston area per caliper
  • The kit contains powder coated red calipers, hardened slide pins, and BP-10 high friction pads
• GM 11" Disc Brake Rotors (#203-8486 x 2):
• 11.00" Diameter
• 1.00" Thick
• 5 x 4 3/4" (Chevy) Bolt Pattern with 7/16" Studs
• GM Metric Brake Caliper Bracket Kit (#105-02451):
• This kit works with both cast in and bolt-on steering arms without issue
• Disc brake style wheels are required for proper caliper clearance when upgrading from drum brakes
• Includes brackets, mounting hardware, bearings, races, seals, adapters, spacers, spindle nuts, spindle nut locking washers, thrust washers, dust covers, and cotter pins
• Steel Braided Brake Line Kit (#293-8307):
• Steel braided line kit includes stainless steel braided lines, caliper fittings to attach lines to calipers, and brake line fittings to attach lines directly to the stock hard lines
• Stock Replacement Early Ford Spindles (#103-9749)
  • Strong Forged 4140 steel construction
  • Ideal for any hot rod or restoration project
  • Spindles weigh approximately 5.5 lbs. each
• King Pin Kit (#103-9111)
  • Includes bushings, bearings, locks


Applications:

• 1928-1948 Ford

You can view and download the complete assembly instruction booklet for this brake kit kit here.
