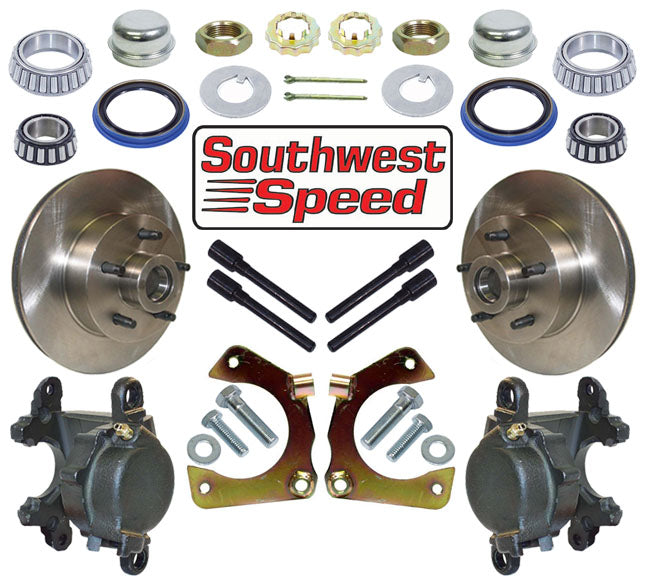

HOT ROD FRONT BRAKE KIT,5X4.50

HOT ROD FRONT BRAKE KIT,5X4.50

203-870

$299.99
$299.99
This item requires an additional shipping fee of $30 over standard shipping.
View full details
  • FRONT HUB, ROTOR, & CALIPER KIT FOR HOT RODS, STREET RODS, & RESTORATIONS WITH A 5 X 4 1/2" BOLT PATTERN
  • CUSTOM DESIGNED KIT FITS TOGETHER PERFECTLY WITHOUT ANY MODIFICATION & GIVES YOU ENOUGH PARTS TO DO BOTH FRONT WHEELS
  • KIT INCLUDES:
    • 2 - GRANADA FRONT HUBS & ROTORS:
      *5 X 4 1/2" BOLT PATTERN WITH 1/2"-20 FINE THREADED STUDS
      *1.00" THICK X 11" O.D. ROTOR
      *RACES INSTALLED
      *IF YOU HAVE A 5 X 4 1/2" BOLT PATTERN ON THE REAR, YOU CAN PUT THESE ON THE FRONT & MAKE ALL 4 WHEELS MATCH
      *STRENGTH HAS NEVER & WILL NEVER BE A PROBLEM WITH SOUTHWEST SPEED HUBS & ROTORS; THEY ARE DESIGNED TO ALWAYS PREVENT OVERHEATING, DISTORTION, & CRACKING
      *WEIGHS APPROXIMATELY 21.54 LBS
    • 2 - COMPLETE BEARINGS KITS TO PUT THE GRANADA HUBS & ROTORS ON PINTO / MUSTANG II SPINDLES CONTAINING:
      *1 - HUB SEAL
      *1 - INNER WHEEL BEARING
      *1 - OUTER WHEEL BEARING
      *1 - SPINDLE NUT
      *1 - THRUST WASHER
      *1 - LOCK WASHER
      *1 - DUST COVER
      *1 - COTTER PIN
    • 2 - COMPLETELY BRAND NEW GM METRIC CALIPERS (LEFT & RIGHT):
      *BRAND NEW CAST STEEL CALIPERS
      *DIRECTLY REPLACES THE 1978 AND LATER D154 TYPE STOCK GM METRIC CALIPERS
      *2 1/2" STOCK PISTON SIZE (2 3/8" & 2 5/8" PISTONS AVAILABLE UPON REQUEST)
      *FLOATING DESIGN
      *INCLUDE BLEEDER SCREWS
    • 2 - BRAKE CALIPER BRACKETS TO PUT THE GM METRIC CALIPERS ON PINTO / MUSTANG II SPINDLES (LEFT & RIGHT):
      *LIGHTWEIGHT STEEL CONSTRUCTION
      *BOLT-ON DESIGN MOUNTS THE CALIPERS ON THE REAR SIDE OF THE FRONT WHEELS
    • 2 - COMPLETE BRAKE CALIPER BOLT KITS:
      *PROVIDES THE NECESSARY HARDWARE TO PUT THE BRAKE CALIPER BRACKETS ON PINTO / MUSTANG II SPINDLES WITH GM METRIC CALIPERS
      *EACH KIT INCLUDES: 2 - GM CALIPER BOLTS, 1 - 7/16" COARSE X 1 1/2" LONG HEX HEAD BOLT, 1 - 1/2" FINE X 2" LONG HEX HEAD BOLT, & 1 - 1/2" SAE MEDIUM FLAT WASHER
  • ORIGINAL, STOCK APPLICATIONS
    • THIS HUB & ROTOR DESIGN WAS STOCK ON THE FOLLOWING CARS:
      *1975-80 FORD GRANADA
      *1974-77 FORD MAVERICK
      *1974-77 MERCURY COMET
      *1975-80 MERCURY MONARCH
      *1977-80 LINCOLN VERSAILLES
    • THE PINTO / MUSTANG II SPINDLES WERE STOCK ON THE FOLLOWING CARS:
      *1974-80 FORD PINTO
      *1974-80 FORD MUSTANG II
      *1974-80 MERCURY BOBCAT
    Brake Rotors > Stock Front Hubs and Rotors > Hot Rod Granada Hub and Spindle Kits
    Hot Rod Granada Hub and Spindle Kits
