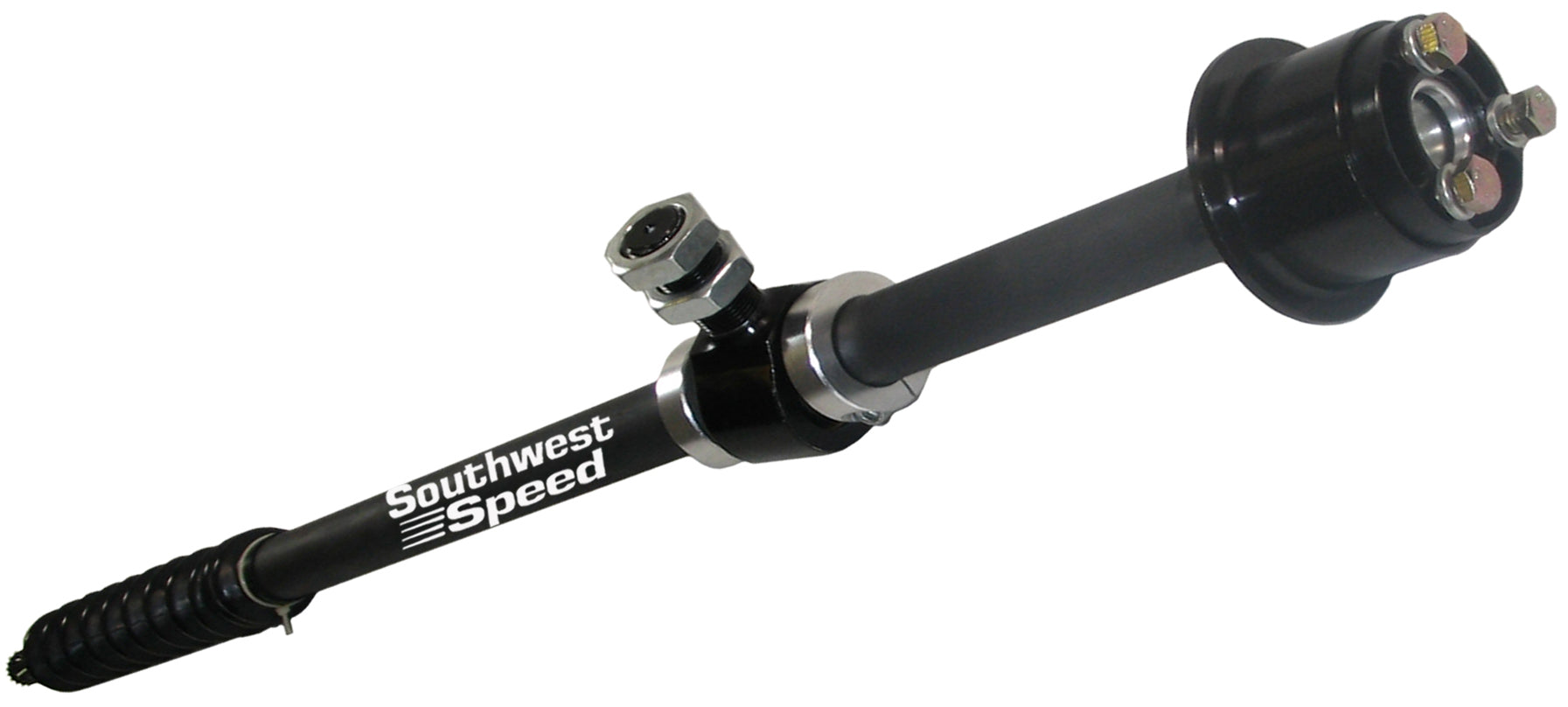

TELESCOPING STEERING SHAFT,32 1/2>42 1/2

TELESCOPING STEERING SHAFT,32 1/2>42 1/2

150-2858

$249.99
$249.99
View full details
  • BRAND NEW SOUTHWEST SPEED LIGHTWEIGHT TELESCOPING 32-1/2" - 42-1/2" STEERING COLUMN FOR OFF-ROAD RACING, DRAG RACING, CIRCLE TRACK STOCK CARS, DUNE BUGGIES, & MANY OTHER APPLICATIONS.

  • THE STEERING COLUMN TELESCOPES FROM 32-1/2" TO 42-1/2" & THE OVERSIZED ALUMINUM ROD END IS ADJUSTABLE FORWARD & REARWARD TO SUIT YOUR SPECIFIC MOUNTING REQUIREMENTS. THE OVERSIZED ALUMINUM ROD END HAS 1/2" THICK STEEL LOCKING COLLARS ON BOTH SIDES THAT SECURELY CLAMP TO THE OUTSIDE COLUMN, WHICH IS DESIGNED TO PREVENT THE OUTER COLUMN FROM MOVING FORE AND AFT. THE 3/4"-20 SPLINE INNER SHAFT TELESCOPES INSIDE THE OUTER COLUMN, WHICH IS DESIGNED TO ALLOW 10" OF TELESCOPING MOVEMENT INSIDE THE COLUMN. THIS SOUTHWEST SPEED TELESCOPING 32-1/2" TO 42-1/2" COLUMN IS NOT ONLY SAFER, BUT ALSO EASY TO INSTALL, & INCLUDES A EASY INSTALLATION STEERING WHEEL DISCONNECT WITH HARDWARE, AN ADJUSTABLE OVERSIZE ALUMINUM ROD END WITH JAM NUTS FOR DASH BAR MOUNTING, AND A 3/4"-20 SPLINE OUTPUT SHAFT, WITH A WEATHERPROOF DUST BOOT INSTALLED.

  • NOTE: OUTPUT SHAFT REQUIRES 3/4" -20 SPLINE U-JOINT OR COUPLER, NOT INCLUDED.

    • FEATURES:

    • WORKS GREAT FOR OFF-ROAD RACING, DRAG RACING, CIRCLE TRACK STOCK CARS & DUNE BUGGIES
    • FULLY COLLAPSIBLE FROM 32-1/2" TO 42-1/2"
    • STRONG LIGHTWEIGHT CONSTRUCTION
    • QUICK RELEASE HUB ADDS AN ADDITIONAL 2" TO OVERALL LENGTH
    • OVERSIZE ALUMINUM ROD END IS ADJUSTABLE FORWARD & REARWARD TO SUIT YOUR SPECIFIC MOUNTING REQUIREMENTS
    • INCLUDES MOUNTING HARDWARE FOR THE STEERING WHEEL QUICK RELEASE HUB & ROD END

    SPECS:

    • TELESCOPING DISTANCE: 32-1/2" - 42-1/2"
    • UPPER COLUMN OUTSIDE TUBE DIAMETER: 1.125"
    • LOWER SHAFT OUTSIDE DIAMETER: .750"
    • LOWER SHAFT: 3/4" - 20 SPLINE
    • OVERSIZE ALUMINUM ROD END OUTSIDE DIAMETER: 2.220"
    • OVERSIZE ALUMINUM ROD END END OF THREADS TO CENTER OF SHAFT: 3.00"
    • DISCONNECT RING OUTSIDE DIAMETER: 3.180"
    • DISCONNECT BODY OUTSIDE DIAMETER: 2.525"
    • TOTAL OVERALL LENGTH EXTENDED: 42-1/2"
