FRONT SUSPENSION,STEERING & WILWOOD BRAKE SET,ARMS,SPRINGS,SHOCKS,SPINDLES,78-88

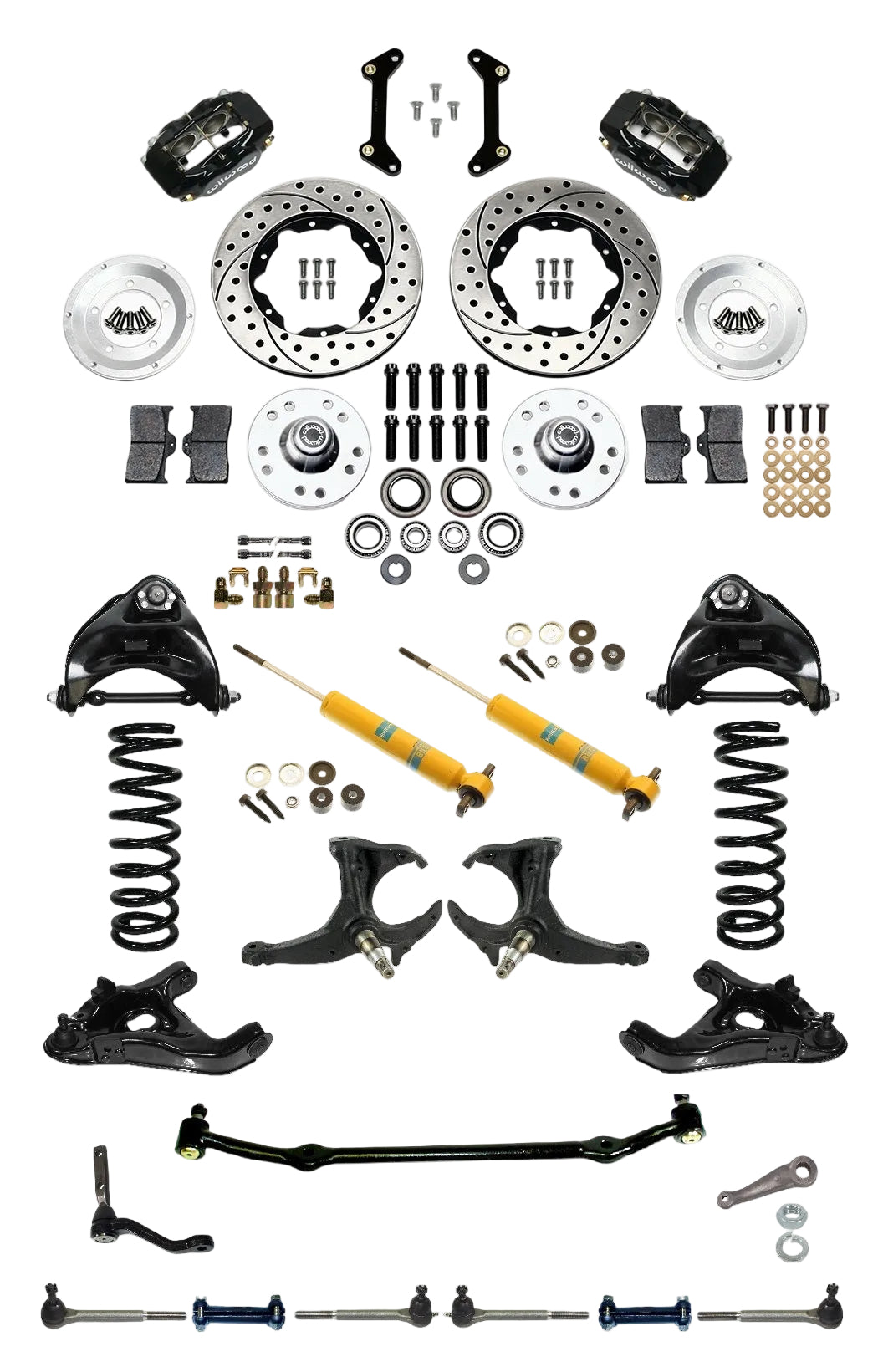

Brand New Southwest Speed Stock Style Front Suspension Set, Includes Upper & Lower Control Arms, Spindles, Bilstein Shocks, Springs, Center Link, Pitman Arm, Idler Arm, Adjuster Sleeve, Inner Tie Rod Ends, Outer Tie Rod Ends, & Wilwood Black Drilled Brake Kit (Part #108-2601).

This package includes upper and lower control arms, stock-style front spindles, Bilstein front shocks, black coil springs, center link, pitman arm, idler arm, adjuster sleeve, inner tie rod ends, outer tie rod ends, and Wilwood Brake Kit for G-Body applications. Ideal for restoration and replacement, it maintains factory-style suspension geometry and fit while providing improved control and comfortable street ride quality.

Fits:

• Buick:

  • 1978-1981 Century
  • 1978-1987 Regal

• Chevrolet:

  • 1978-1987 El Camino

  • 1978-1983 Malibu

  • 1978-1988 Monte Carlo

• GMC:

  • 1978-1987 Caballero

• Oldsmobile:

  • 1978-1981, 1985-1988 Cutlass RWD

  • 1978-1984 Cutlass Calais

  • 1980-1983 Cutlass Cruiser

  • 1978-1980, 1985-1987 Cutlass Salon

  • 1978-1988 Cutlass Supreme RWD

• Pontiac:

  • 1982-1986 Bonneville

  • 1978-1980 Grand Am

  • 1978-1983 Grand LeMans

  • 1978-1987 Grand Prix

  • 1978-1981 LeMans

Notes:

• This kit requires a compatible GM 525 Series Saginaw manual or GM 605 Series Saginaw power steering box with a 1"-32 small-spline pitman shaft. Verify steering box and pitman shaft size before ordering.
• This kit is NOT designed for the larger 1-1/8"-32 pitman shaft used on many GM 700 Series and Delphi 600 Series steering boxes.

Kit Includes:

• Bilstein Front Shocks:
  • Heavy-duty monotube gas pressure design

  • Improves handling and vehicle stability

  • Maintains comfortable street ride quality

  • Superior damping performance

  • Ideal for street-driven performance applications

  • Designed for drivers seeking improved control without sacrificing comfort
• Black Front Coil Springs:
  • Powder-coated to protect against corrosion
  • Mount directly in stock locations
  • Hot wound for consistent rate
  • 100% load tested

• Center Link, Idler Arm, Pitman Arm, Nut & Washer Kit:
  • Includes center link, idler arm, pitman arm, and pitman arm nut & washer kit

  • Transfers steering box movement through the steering linkage

  • Helps maintain proper steering linkage geometry and center link alignment

  • Pitman arm nut & washer securely retain the pitman arm on the steering box shaft

  • Ideal for steering system restoration, replacement, or rebuilds

  • Helps restore tighter, more responsive steering and reduce play in worn steering linkage
• Wilwood Brake Kit & Lines:
  • Includes Wilwood front brake rotors, 4-piston calipers, brake pads, aluminum hubs, wheel bearings, seals, caliper mounting brackets, steel braided brake hoses, fittings, & installation hardware
  • 11" diameter x 0.81" thick drilled and slotted rotors
  • Powder-coated forged Dynalite calipers with four 1.75" stainless steel pistons each
  • Lightweight aluminum hubs with 5 x 4-1/2" and 5 x 4-3/4" bolt patterns
  • High-performance Wilwood BP-10 Smart Compound brake pads
  • 18" stainless steel braided brake hoses with -3 AN connections and fittings for stock hard brake lines
  • Compatible with manual or power-assisted brake systems
  • Designed to maintain factory track width with 0" hub offset
• Stock Style Front Spindles:
  • Direct bolt-on with the included brake kit for 1978-1988 G-Body vehicles.
  • Forged 4140 steel construction

• Upper & Lower Control Arms:
  • Exact reproduction of factory control arms

  • Direct-fit bushings for stock locations

  • Ball joints fit stock spindles

  • Maintains factory-style geometry and fit

  • Modern fabrication with OEM-style design

  • Ideal for restoration and replacement
