FRONT SUSPENSION & STEERING SET,QA1 COILOVERS,ARMS,SPINDLES,78-88 GM G-BODY,DROP

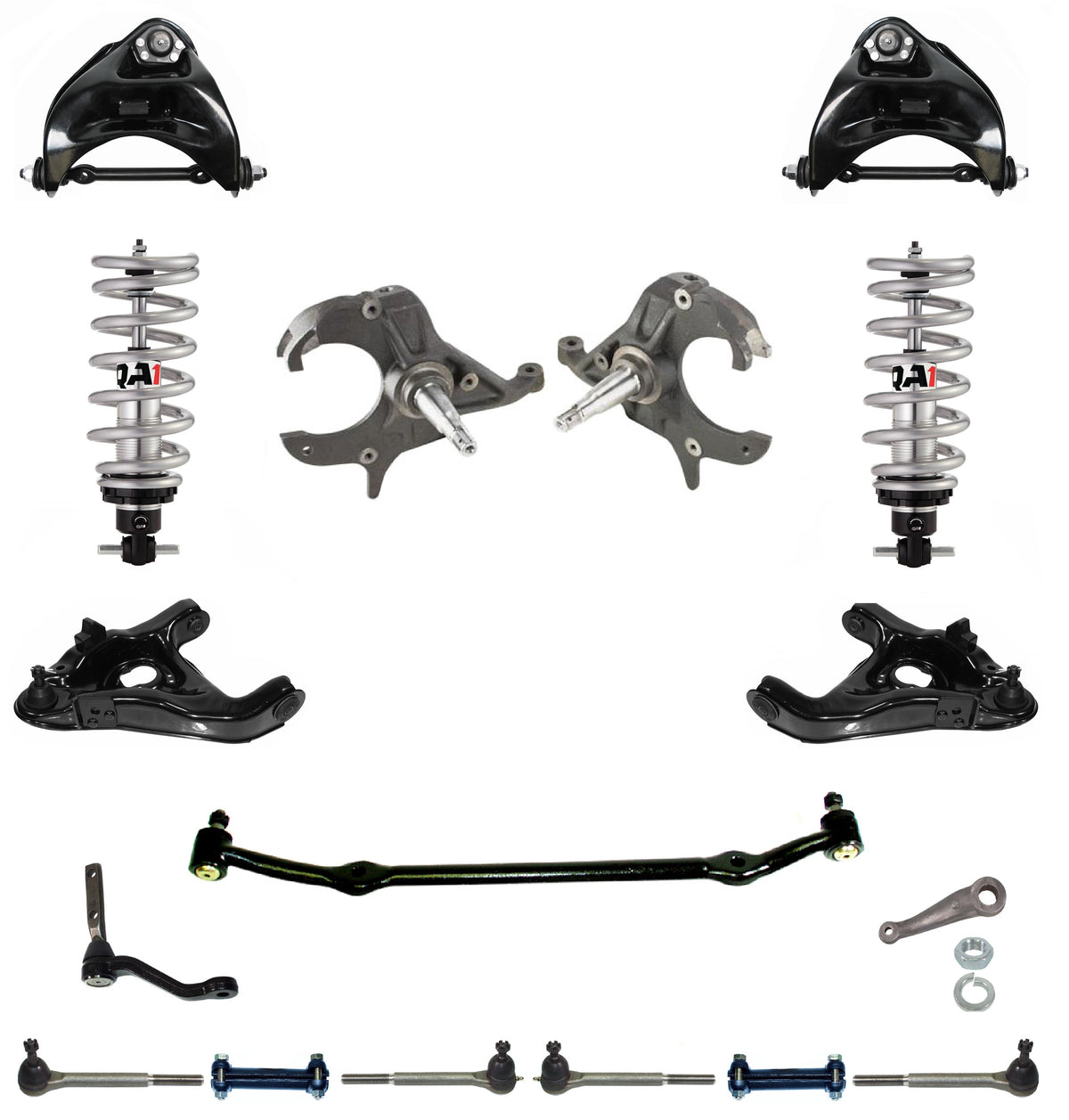

Brand New Southwest Speed 2" Drop Front Suspension & Steering Set, Includes Upper & Lower Control Arms, 2" Drop Spindles, QA1 Coilovers, Center Link, Pitman Arm, Idler Arm, Adjuster Sleeve, Inner Tie Rod Ends, & Outer Tie Rod Ends (Part #108-2542).

This complete front suspension and steering package includes upper and lower control arms, 2" drop front spindles, QA1 coilovers, center link, pitman arm, idler arm, tie rod adjuster sleeves, inner tie rod ends, and outer tie rod ends for compatible GM G-Body vehicles. It is ideal for restoring or upgrading worn front-end components while lowering the front approximately 2", helping improve steering response, handling, control, and overall street performance.

Fits:

• Buick:

  • 1978-1981 Century
  • 1978-1987 Regal

• Chevrolet:

  • 1978-1987 El Camino

  • 1978-1983 Malibu

  • 1978-1988 Monte Carlo

• GMC:

  • 1978-1987 Caballero

• Oldsmobile:

  • 1978-1981, 1985-1988 Cutlass RWD

  • 1978-1984 Cutlass Calais

  • 1980-1983 Cutlass Cruiser

  • 1978-1980, 1985-1987 Cutlass Salon

  • 1978-1988 Cutlass Supreme RWD

• Pontiac:

  • 1982-1986 Bonneville

  • 1978-1980 Grand Am

  • 1978-1983 Grand LeMans

  • 1978-1987 Grand Prix

  • 1978-1981 LeMans

Notes:

• 1978 GM G-Body models require 1979-or-later compatible front brake rotors and matching outer wheel bearings for use with the included spindles.

• This kit requires a compatible GM 525 Series Saginaw manual or GM 605 Series Saginaw power steering box with a 1"-32 small-spline pitman shaft. Verify steering box and pitman shaft size before ordering.
• This kit is NOT designed for the larger 1-1/8"-32 pitman shaft used on many GM 700 Series and Delphi 600 Series steering boxes.

Kit Includes:

• Adjuster Sleeve, Inner & Outer Tie Rod Ends:
  • OEM-style replacement steering components

  • Includes inner tie rod ends, outer tie rod ends, and tie rod adjuster sleeves

  • 5/8"-18 threaded design

  • Inner tie rod ends feature left-hand threads

  • Outer tie rod ends feature right-hand threads

  • Adjuster sleeves feature left- and right-hand internal threads for easy toe adjustment

  • Tie rod ends measure approximately 8-1/2" from center of the pin to thread ends
  • threads

  • Direct replacement design for many GM steering applications
  • Steel construction
• Center Link, Idler Arm, Pitman Arm, Nut & Washer Kit:
  • Includes center link, idler arm, pitman arm, and pitman arm nut & washer kit

  • Transfers steering box movement through the steering linkage

  • Helps maintain proper steering linkage geometry and center link alignment

  • Pitman arm nut & washer securely retain the pitman arm on the steering box shaft

  • Ideal for steering system restoration, replacement, or rebuilds

  • Helps restore tighter, more responsive steering and reduce play in worn steering linkage

• QA1 Front Single Adjustable Pro Coil Shocks:
  • QA1 uniquely engineered to enhance the performance of your vehicle

  • Ride height adjustability

  • Adjustable shock valving options for all driving styles

  • Easy bolt-in install

  • Made in the USA
• 2" Drop Front Spindles:
  • Provides a 2" drop by repositioning the spindle for a lower stance.
  • Direct bolt-on with stock ball joints, tie rod ends, and brake calipers on 1979-and-later applications
  • 1978 models require compatible 1979-or-later front rotors and outer wheel bearings.
  • Forged 4140 steel construction

• Upper & Lower Control Arms:
  • Exact reproduction of factory control arms

  • Direct-fit bushings for stock locations

  • Ball joints fit stock spindles

  • Maintains factory-style geometry and fit

  • Modern fabrication with OEM-style design

  • Ideal for restoration and replacement
