FRONT SUSPENSION & STEERING SET,QA1 COILOVERS,ARMS,SPINDLES,78-88 GM G-BODY

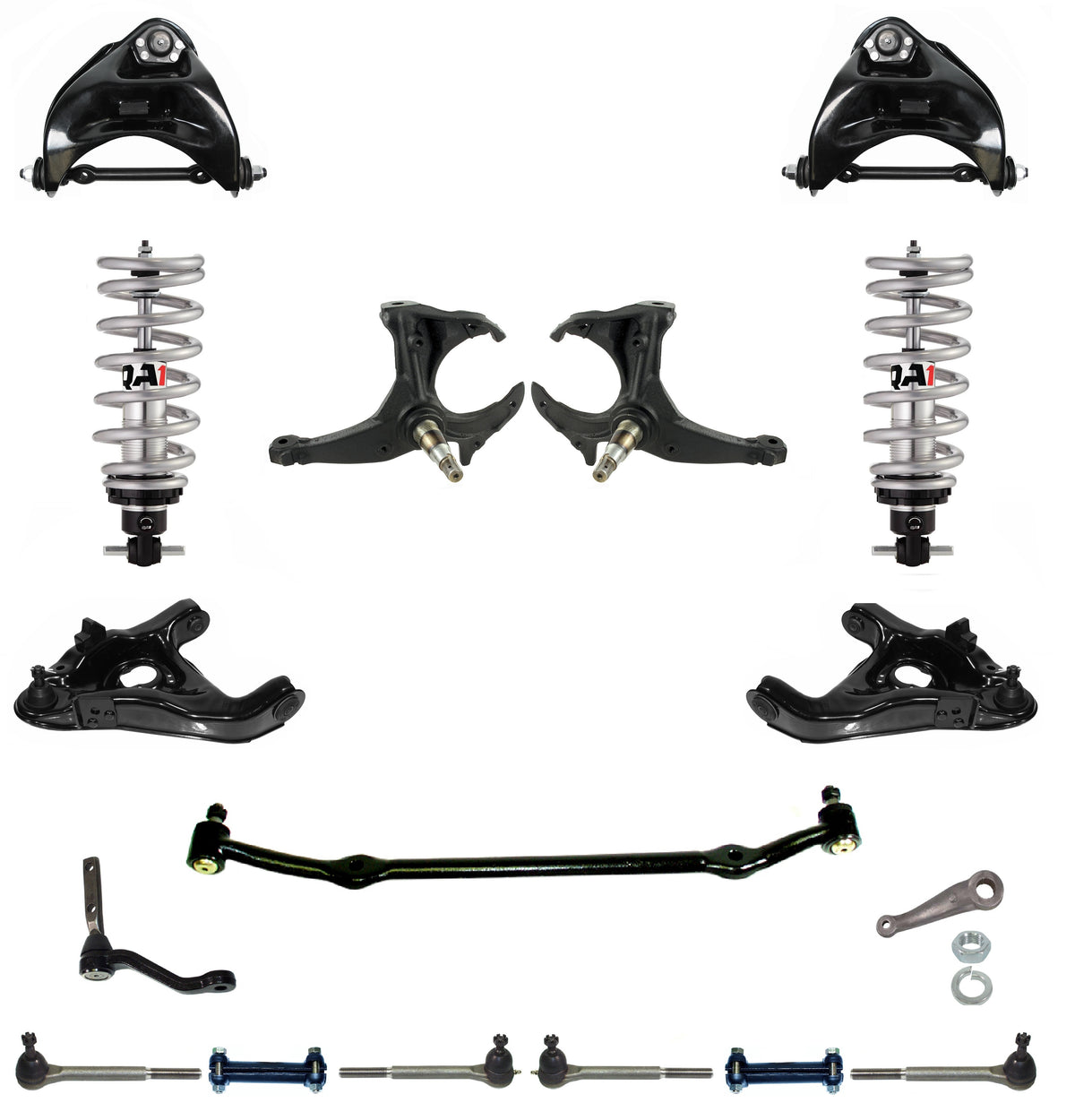

Brand New Southwest Speed Stock Style Front Suspension & Steering Set, Includes Upper & Lower Control Arms, Spindles, QA1 Coilovers, Center Link, Pitman Arm, Idler Arm, Adjuster Sleeve, Inner Tie Rod Ends, & Outer Tie Rod Ends (Part #108-2541).

This front suspension and steering package includes upper and lower control arms, stock-style front spindles, QA1 coilovers, center link, pitman arm, idler arm, tie rod adjuster sleeves, inner tie rod ends, and outer tie rod ends for GM G-Body applications. Ideal for restoration and replacement, it refreshes major front suspension and steering components while maintaining factory-style geometry and fit, improving steering response, control, and overall street-driving performance.

Fits:

• Buick:

  • 1978-1981 Century
  • 1978-1987 Regal

• Chevrolet:

  • 1978-1987 El Camino

  • 1978-1983 Malibu

  • 1978-1988 Monte Carlo

• GMC:

  • 1978-1987 Caballero

• Oldsmobile:

  • 1978-1981, 1985-1988 Cutlass RWD

  • 1978-1984 Cutlass Calais

  • 1980-1983 Cutlass Cruiser

  • 1978-1980, 1985-1987 Cutlass Salon

  • 1978-1988 Cutlass Supreme RWD

• Pontiac:

  • 1982-1986 Bonneville

  • 1978-1980 Grand Am

  • 1978-1983 Grand LeMans

  • 1978-1987 Grand Prix

  • 1978-1981 LeMans

Notes:

• 1978 GM G-Body models require 1979-or-later compatible front brake rotors and matching outer wheel bearings for use with the included spindles.

• This kit requires a compatible GM 525 Series Saginaw manual or GM 605 Series Saginaw power steering box with a 1"-32 small-spline pitman shaft. Verify steering box and pitman shaft size before ordering.
• This kit is NOT designed for the larger 1-1/8"-32 pitman shaft used on many GM 700 Series and Delphi 600 Series steering boxes.

Kit Includes:

• Adjuster Sleeve, Inner & Outer Tie Rod Ends:
  • OEM-style replacement steering components

  • Includes inner tie rod ends, outer tie rod ends, and tie rod adjuster sleeves

  • 5/8"-18 threaded design

  • Inner tie rod ends feature left-hand threads

  • Outer tie rod ends feature right-hand threads

  • Adjuster sleeves feature left- and right-hand internal threads for easy toe adjustment

  • Tie rod ends measure approximately 8-1/2" from center of the pin to thread ends
  • threads

  • Direct replacement design for many GM steering applications
  • Steel construction
• Center Link, Idler Arm, Pitman Arm, Nut & Washer Kit:
  • Includes center link, idler arm, pitman arm, and pitman arm nut & washer kit

  • Transfers steering box movement through the steering linkage

  • Helps maintain proper steering linkage geometry and center link alignment

  • Pitman arm nut & washer securely retain the pitman arm on the steering box shaft

  • Ideal for steering system restoration, replacement, or rebuilds

  • Helps restore tighter, more responsive steering and reduce play in worn steering linkage

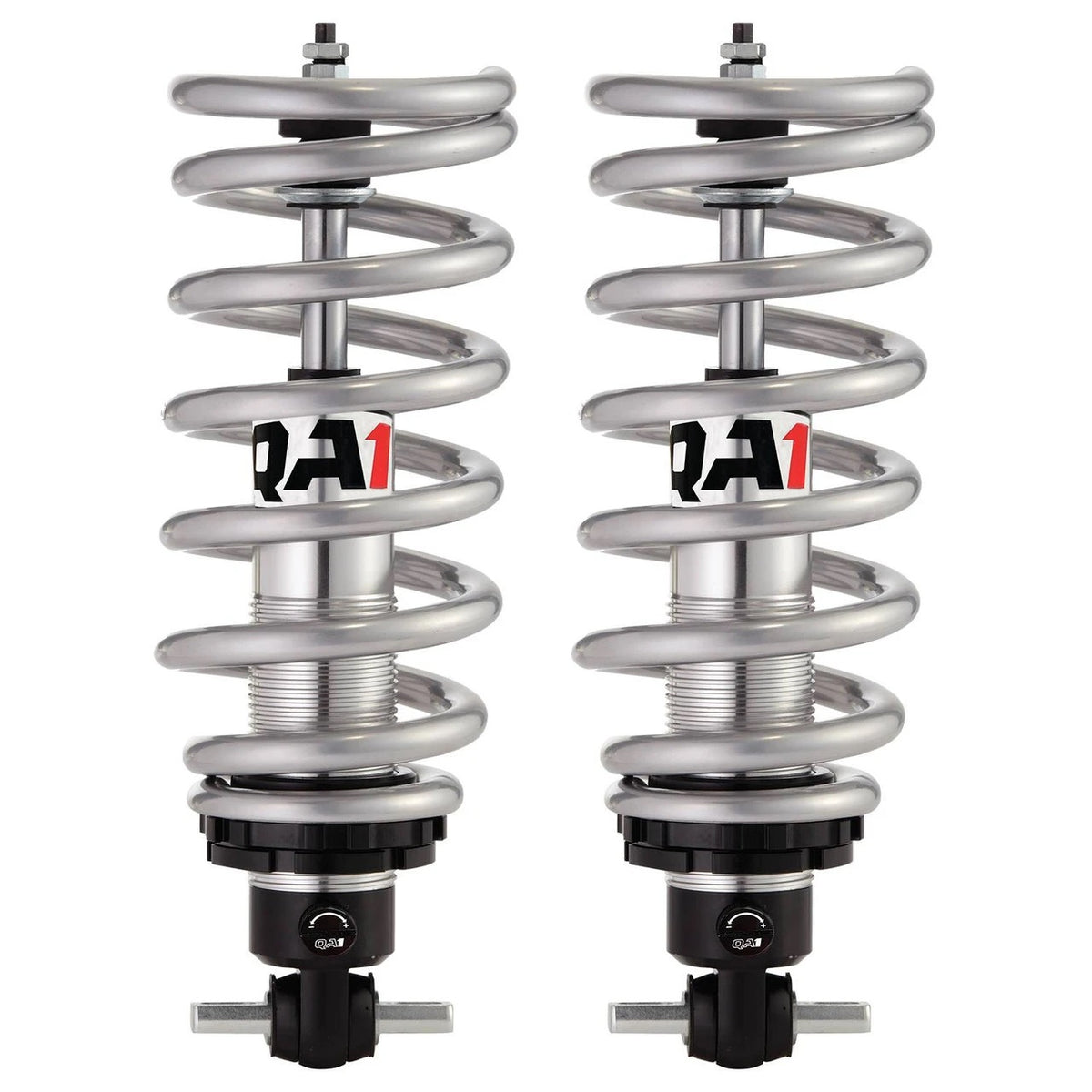

• QA1 Front Single Adjustable Pro Coil Shocks:
  • QA1 uniquely engineered to enhance the performance of your vehicle

  • Ride height adjustability

  • Adjustable shock valving options for all driving styles

  • Easy bolt-in install

  • Made in the USA
• Stock Style Front Spindles:
  • Direct bolt-on with stock ball joints, tie rod ends, and brake calipers on 1979-and-later applications
  • 1978 models require compatible 1979-or-later front rotors and outer wheel bearings.
  • Forged 4140 steel construction
• Upper & Lower Control Arms:
  • Exact reproduction of factory control arms

  • Direct-fit bushings for stock locations

  • Ball joints fit stock spindles

  • Maintains factory-style geometry and fit

  • Modern fabrication with OEM-style design

  • Ideal for restoration and replacement
