78-88 GM G-BODY CENTER LINK,IDLER,PITMAN,TIE ROD LINKAGES,BALL JOINTS,POWER

Brand New Deluxe Steering Kit, including "Big GM" Power Steering Pitman Arm, Center Link, Idler Arm, Tie Rod Ends, Tie Rod Adjuster Sleeves, Upper Ball Joints, and Lower Ball Joints.  These are brand new pieces produced by Southwest Speed Inc.  They replace the OEM parts and work perfectly with all connecting components.  We've sold a large number of these items with no problems in quality or compatibility.  They are commonly used in many different race cars and street cars.  All items include hardware.

This kit works with the "Big GM" Power Steering Box.  It is commonly referred to as a 700 series Saginaw box.  It was the dominant power steering box on almost all GM cars through 1977 and on about 1/2 of all GM cars from 1978 to the early 90's.  This box is distinct for its square, 4-bolt housing cover, as opposed to the round, ring-retained housing cover that the smaller GM power box has.  This box features a 1 1/8"-32 spline pitman arm shaft.  The Pitman Arm is the only item in this kit that changes between the Power and Manual Steering Boxes.  If you have the "Small GM Metric" Power Box, or the GM Manual Box, we also have those pitman arms and kits available in our Ebay Store.

This kit will fit all of the following applications with the Big GM Power Steering Box:

• 1978-88 Chevelle, El Camino, Malibu, & Monte Carlo, including GMC Caballero & Sprint Trucks
• 1978-81 Buick Century
• 1978-87 Buick Luxus, Regal, & Special (RWD)
• 1978-88 Oldsmobile Cutlass, F85, Vista Cruiser, 4-4-2, & Calais (RWD)
• 1978-81 Pontiac Lemans, including Grand Am, Grand Lemans, GTO, Tempest, & T37

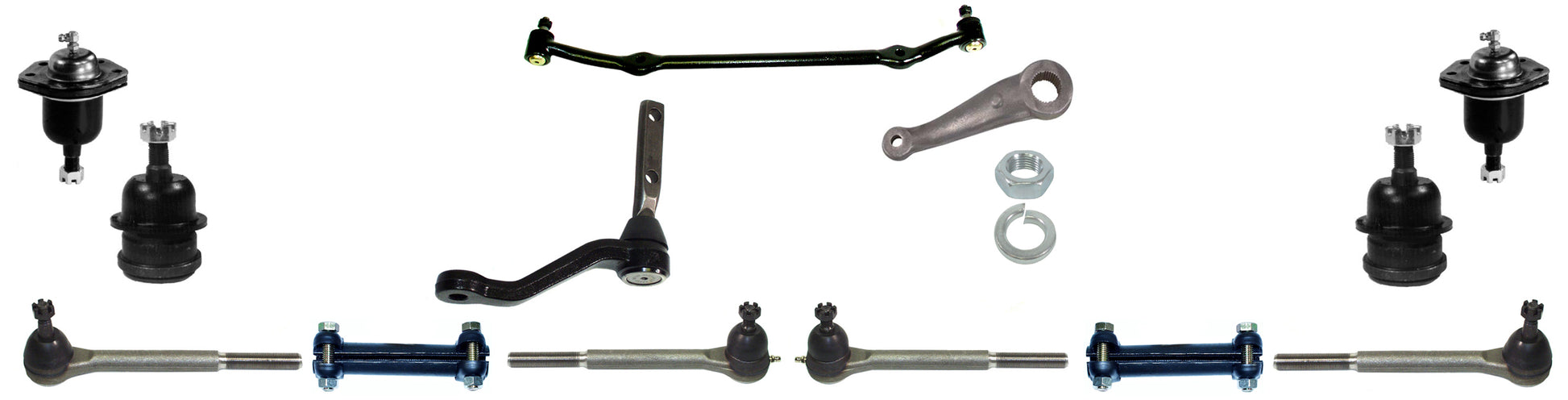

Kit Includes:

• 1 - Big GM Power Steering Pitman Arm (#107-176)
  • Measures 6 7/32" Center of Steering Box Hole to Center of Drag Link Hole
• 1 - Pitman Arm Nut & Washer Set (#107-1400)
• 1 - Center Link / Drag Link (#107-232)
• 1 - Idler Arm (#107-256)
• 2 - Inner Tie Rod Ends (#105-8651)
• 2 - Outer Tie Rod Ends (#105-8661)
• 2 - Tie Rod Adjusting Sleeves (#105-892)
• 2 - Upper Ball Joints (#101-017)
• 2 - Lower Ball Joints (#101-013)
• Items include nuts, cotter pins, grease fittings, etc.
