78-88 GM G-BODY CENTER LINK,IDLER,PITMAN,TIE ROD LINKAGES,BALL JOINTS,MANUAL,605

Brand New Steering Kit with Tie Rods and Ball Joints for the Small GM Power Steering Box on the applications listed below.  These are brand new items produced by Southwest Speed Inc.  They replace the OEM parts and work perfectly with all connecting components in the correct application.

This kit fits the GM Manual and Small GM "Metric" power steering box, which was the stock power box on about half of these GM cars in this era.  It is commonly referred to as the 605 series Saginaw box.  This box is distinct for its round, ring-retained housing cover, as opposed to the square, 4-bolt housing cover on the "Big GM Power" box.  If you have the Big GM Power box, we have the kit for that box here.

Applications:

• This kit fits the stock GM Manual and Small GM Power Steering Box and stock Spindles on the following cars:
  • 1978-88 Chevy El Camino, Malibu, & Monte Carlo
  • 1978-87 GMC Caballero
  • 1978-81 Buick Century & Luxus
  • 1978-87 Buick Regal
  • 1978-88 Oldsmobile Cutlass, F85, Vista Cruiser, 4-4-2, & Calais
  • 1978-81 Pontiac Lemans, Grand Am, & Grand Lemans
  • 1978-87 Pontiac Grand Prix
  • 1982-86 Pontiac Bonneville

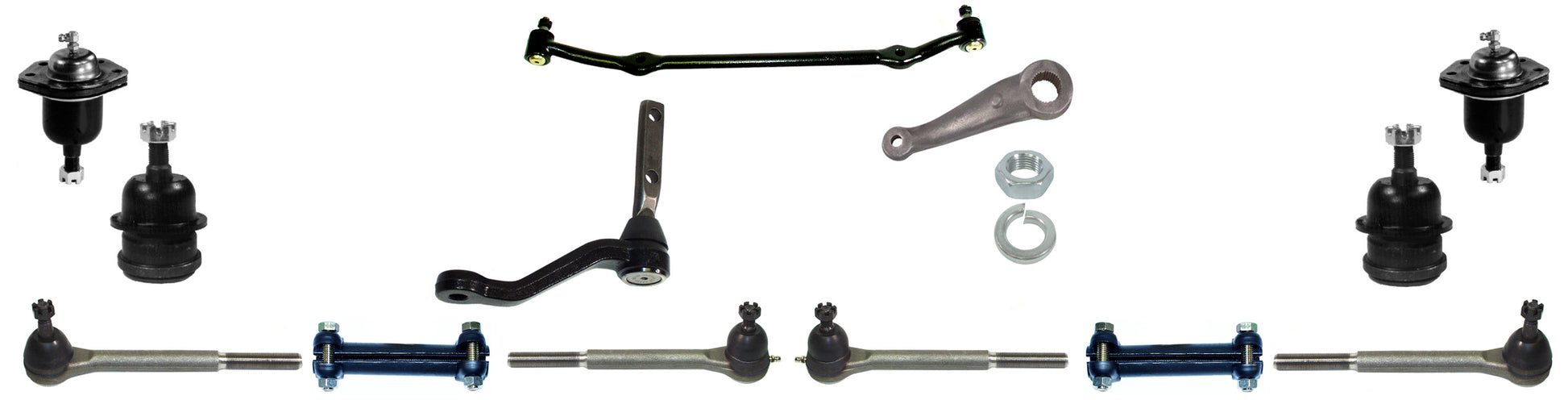

Includes:

• Drag Link / Center Link (Part #107-232)
  • Includes grease fittings, nuts, and cotter pins
• Idler Arm (Part #107-256)
  • Includes grease fitting
• Pitman Arm (Part #107-175)
  • Fits stock GM Manual and  Small GM Power Steering boxes
• Pitman Arm Nut & Washer Set (Part #107-1400)
  • Screws on steering box shaft to secure pitman arm
• 2 - Inner Tie Rod Ends (Part #105-8651)
  • Includes grease fitting and nut
• 2 - Outer Tie Rod Ends (Part #105-8661)
  • Includes grease fitting and nut
• 2 - Tie Rod End Adjusting Sleeves (Part #105-892)
  • Inlcludes bolts and nuts
• 2 - Upper Ball Joints (Part #101-017)
  • Inlcludes grease fitting and nut
• 2 - Lower Ball Joints (Part #101-013)
  • Inlcludes grease fitting and nut

In our store, we have  this same kit for the Big GM Power steering box, as well as all of these items individually; the lower ball joints, the upper ball joints, the center link/drag link, the idler arm, the Small GM Power steering pitman arm, the inner tie rod end, the outer tie rod end, and the tie rod end adjusting sleeve.
