78-88 GM G-BODY CENTER LINK,IDLER,PITMAN ARMS,TIE ROD LINKAGE,MANUAL & 605 POWER

Brand New Steering Kit with Tie Rods for the Small GM Power Steering Box on the applications listed below.  These are brand new items produced by Southwest Speed Inc.  They replace the OEM parts and work perfectly with all connecting components in the correct application.

This kit fits the GM Manual and the Small GM "Metric" power steering box, which was the stock power box on about half of these GM cars in this era.  It is commonly referred to as the 605 series Saginaw box.  This box is distinct for its round, ring-retained housing cover, as opposed to the square, 4-bolt housing cover on the "Big GM Power" box.  If you have the Big GM Power box, we have the kit for that box here.

Applications:

• This kit fits the stock GM Manual and the GM Small Power Steering Box on the following cars:
  • 1978-88 Chevy El Camino, Malibu, & Monte Carlo
  • 1978-87 GMC Caballero
  • 1978-81 Buick Century & Luxus
  • 1978-87 Buick Regal
  • 1978-88 Oldsmobile Cutlass, F85, Vista Cruiser, 4-4-2, & Calais
  • 1978-81 Pontiac Lemans, Grand Am, & Grand Lemans
  • 1978-87 Pontiac Grand Prix
  • 1982-86 Pontiac Bonneville

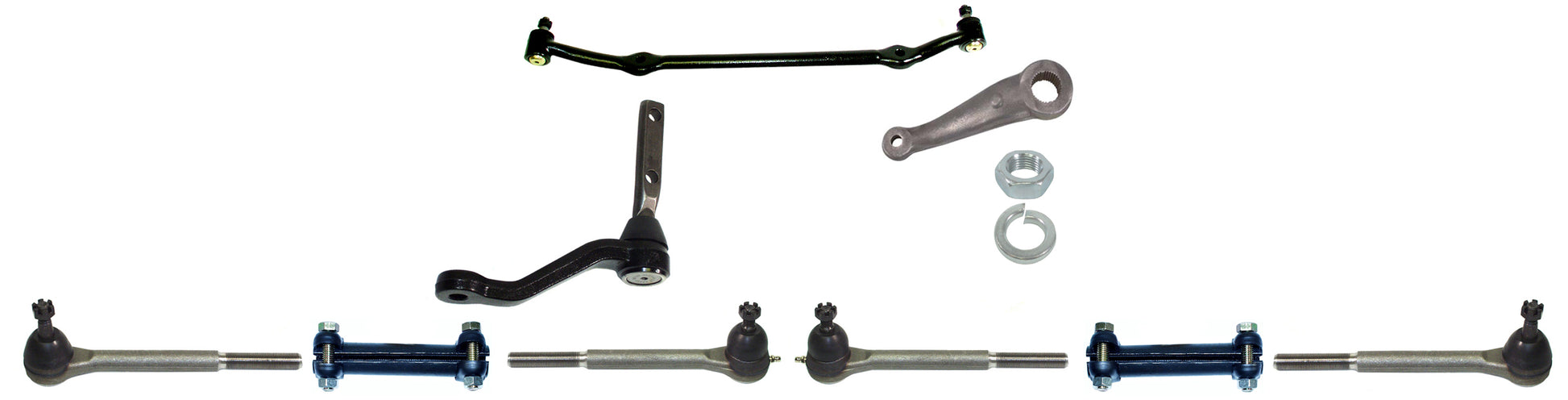

Includes:

• Drag Link / Center Link (Part #107-232)
  • Includes grease fittings, nuts, and cotter pins
• Idler Arm (Part #107-256)
  • Includes grease fitting
• Pitman Arm (Part #107-175)
  • Fits stock GM Manual & GM Small Power Steering boxes
• Pitman Arm Nut & Washer Set (Part #107-1400)
  • Screws on steering box shaft to secure pitman arm
• 2 - Inner Tie Rod Ends (Part #105-8651)
  • Includes grease fitting and nut
• 2 - Outer Tie Rod Ends (Part #105-8661)
  • Includes grease fitting and nut
• 2 - Tie Rod End Adjusting Sleeves (Part #105-892)
  • Inlcludes bolts and nuts

In our store, we have  this same kit for the Big GM Power steering box, as well as all of these items individually; the center link/drag link, the idler arm, and the Small GM Power steering pitman arm. inner tie rod end, the outer tie rod end, and the tie rod end adjusting sleeve.
